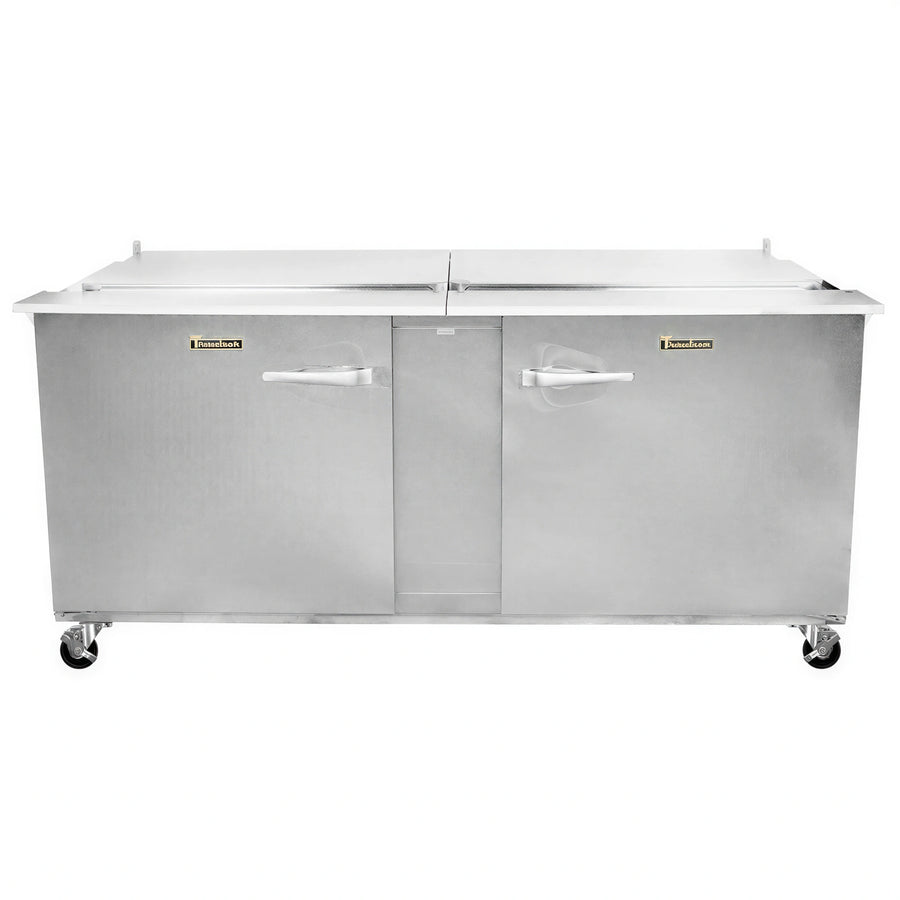

Traulsen Dealer's Choice UST7230-RR-SB Two-Section 72-Inch Reach-In Prep Table Refrigerator, 30-Pan, Stainless Steel

SKU: UST7230-RR-SB
$12,457.80
Discontinued

Want to speak to an expert?

The Traulsen Dealer's Choice UST7230-RR-SB is a two-section, 72-inch reach-in prep table refrigerator with right/right hinged doors and a low-profile flat cover.

The top holds 30 1/6-size pans, including 4-inch-deep pans, and can accommodate pans up to 6 inches deep. Rear-mounted, front-breathing, self-contained R-290 refrigeration provides a refrigerated base operating range of 34°F to 38°F.

  • Stainless steel exterior and back with galvanized bottom
  • Four adjustable shelves and six 4-inch casters
  • Reversible full-length white nylon cutting board
  • Electronic digital control and attached NEMA 5-15P plug

Overall Dimensions:

72.0"W x 34.5"D x 36.0"H

Product Weight:

575.0 lb

30-pan prep top

Holds 30 1/6-size pans on top; 4-inch-deep pans and stainless steel pan dividers are supplied, and pans up to 6 inches deep can be accommodated.

Right/right door hinging

Two-section cabinet with two right/right hinged doors.

Low-profile flat cover

Flat stainless steel pan cover designed for the prep top.

Self-contained R-290 refrigeration

Rear-mounted, front-breathing refrigeration system using R-290 refrigerant.

Adjustable shelving

Four powder-coated wire shelves, with two shelves per door mounted on adjustable pilasters.

Reversible cutting board

Full-length white nylon cutting board supplied standard.

Self-closing doors

Stainless steel doors self-close and include a stay-open feature at 105 degrees.

Electronic control

Electronic digital control with a 3-digit LED display and Fahrenheit or Celsius temperature scale capability.

Mobile base

Set of six 4-inch casters supplied standard.

EZ-Clean door gaskets

Magnetic snap-in EZ-Clean door gaskets.

Sections 2
Door configuration Right/right hinged
Number of doors 2
Pan capacity 30 1/6-size pans, 4 in deep included; accommodates up to 6 in deep
Exterior finish Stainless steel front, top, and sides
Back finish Stainless steel
Bottom material Galvanized steel
Refrigeration Self-contained, rear mounted
Compressor style Front breathing
Refrigerant R-290
Compressor power 1/5 HP
Refrigerant charge 5 oz (142 g)
Net capacity 24.5 cu ft
Number of shelves 4
Casters 6 x 4 in
Operating temperature 34°F to 38°F
Voltage 115/60/1
Full load amperage 7.2 A
Plug NEMA 5-15P attached

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

U.S. domestic six-year parts and labor warranty, seven-year compressor warranty, and lifetime cam-lift hinge and workflow handle warranty.

Frequently Asked Questions

The prep top holds 30 1/6-size pans. Four-inch-deep pans are included, and the unit can accommodate pans up to 6 inches deep.
The unit has right/right hinged doors.
Yes. It is a rear-mounted, front-breathing, self-contained system using R-290 refrigerant.
The unit is 72 inches wide, 34.5 inches deep, and 36 inches high on the standard 4-inch casters. Overall depth includes the standard cutting board.
It uses 115/60/1 power, draws 7.2 A at full load, and includes an attached NEMA 5-15P plug.
