Traulsen

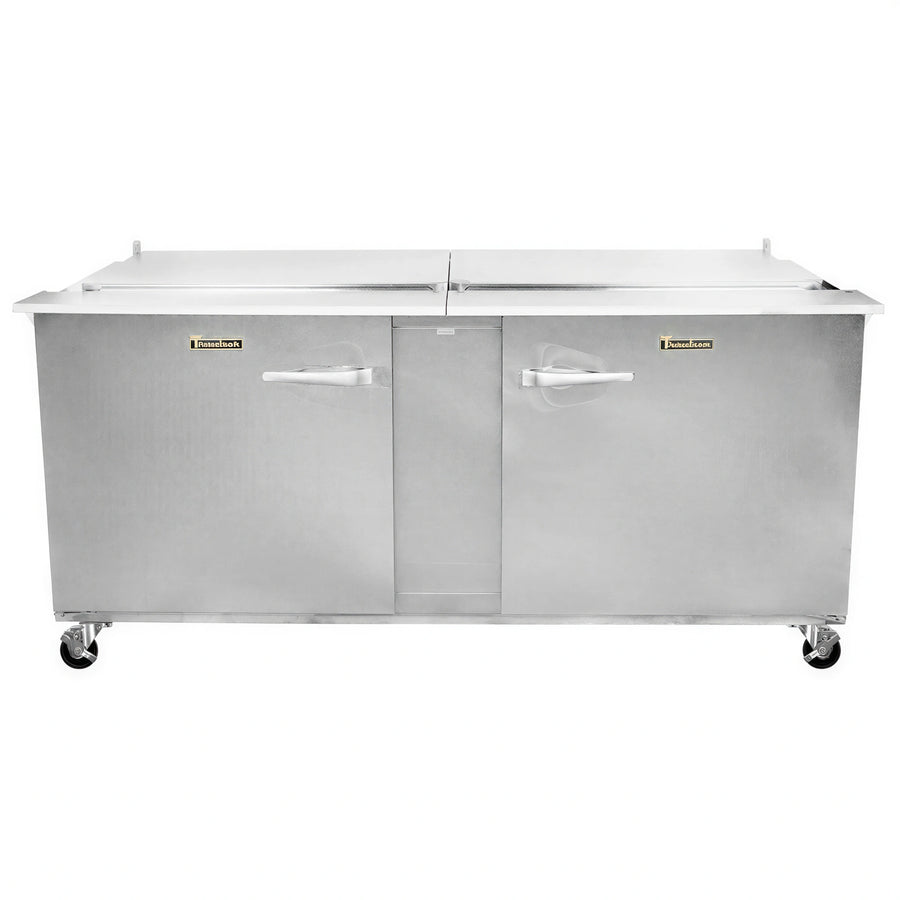

Traulsen Dealer's Choice UST7230-RR 72-Inch Two-Section Stainless Steel Prep Table Refrigerator, 2-Door, 30-Pan Capacity

SKU: UST7230-RR
$11,267.10
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

UST7230-RR is a 72-inch, two-section prep table refrigerator with right/right-hinged doors, a low-profile flat cover, and rear-mounted self-contained refrigeration.

  • Holds 30 1/6-size pans that are 4 inches deep; pans and divider bars are supplied, and the top can accommodate pans up to 6 inches deep.
  • Uses R-290 refrigerant with a front-breathing, self-contained refrigeration system.
  • Includes four adjustable powder-coated steel shelves, a reversible full-length white nylon cutting board, and six 4-inch casters.

Overall Dimensions:

72.0"W x 34.5"D x 36.0"H

Product Weight:

575.0 lb

Top pan capacity

Holds 30 1/6-size pans that are 4 inches deep; supplied pans and divider bars are included, and the top can accommodate pans up to 6 inches deep.

Right/right door hinging

Two stainless steel doors are hinged right/right, self-close at less than 90 degrees, and stay open at 105 degrees.

Self-contained refrigeration

Rear-mounted, front-breathing refrigeration uses R-290 refrigerant, an air-cooled hermetic compressor, and a forced-air evaporator coil.

Adjustable interior shelving

Four powder-coated steel shelves are supplied, with two shelves per door mounted on adjustable pilasters.

Electronic control

An electronic digital control includes a three-digit LED display and Fahrenheit or Celsius temperature-scale capability.

Reversible cutting board

A 3/4-inch-thick, full-length, reversible white nylon cutting board is supplied.

Flat pan cover

The low-profile flat cover is constructed of stainless steel and is removable for cleaning.

Caster mobility

Six 4-inch casters are supplied.

Related Searches

New Arrivals Traulsen
Product type Two-section compact prep table refrigerator
Door count 2
Door hinge configuration Right/right
Overall width 72 in
Overall depth 34.5 in, including standard cutting board
Overall height 36 in on 4 in casters
Top pan capacity 30 x 1/6-size pans, 4 in deep included; accommodates up to 6 in deep pans
Net capacity 24.5 cu. ft.
Shelf count 4
Shelf arrangement 2 powder-coated steel shelves per door
Shelf adjustment Adjustable in 1/2 in increments; minimum 1.5 in spacing
Exterior construction Stainless steel front, sides, doors, top, and pan cover; galvanized back and bottom
Interior construction Anodized aluminum
Refrigeration Self-contained, rear-mounted, front-breathing
Refrigerant R-290
Compressor 1/5 HP, air-cooled hermetic
Refrigerant charge 5 oz (142 g)
Cooling capacity 1680 BTU/hr
Operating temperature 34–38 °F
Voltage 115/60/1
Full load amperage 7.2 A
Plug NEMA 5-15P attached
Casters 6 x 4 in
Cutting board 3/4 in thick, full-length, reversible white nylon

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

U.S. domestic coverage includes a six-year parts and labor warranty, a seven-year compressor parts warranty, and lifetime coverage for cam-lift hinge and workflow handle housing.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF Oversize equipment quick ref guide PDF Download PDF Manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds 30 1/6-size pans that are 4 inches deep. The top can accommodate pans up to 6 inches deep.
The unit is 72 inches wide, 34.5 inches deep, and 36 inches high on 4-inch casters. Overall depth includes the standard cutting board.
It uses a rear-mounted, front-breathing, self-contained refrigeration system with R-290 refrigerant.
The specification is 115/60/1 with a 7.2-amp full-load rating and an attached NEMA 5-15P plug.
For U.S. domestic sales, the product has a six-year parts and labor warranty and a seven-year compressor parts warranty. Lifetime coverage applies to cam-lift hinge and workflow handle housing under the stated warranty terms.
