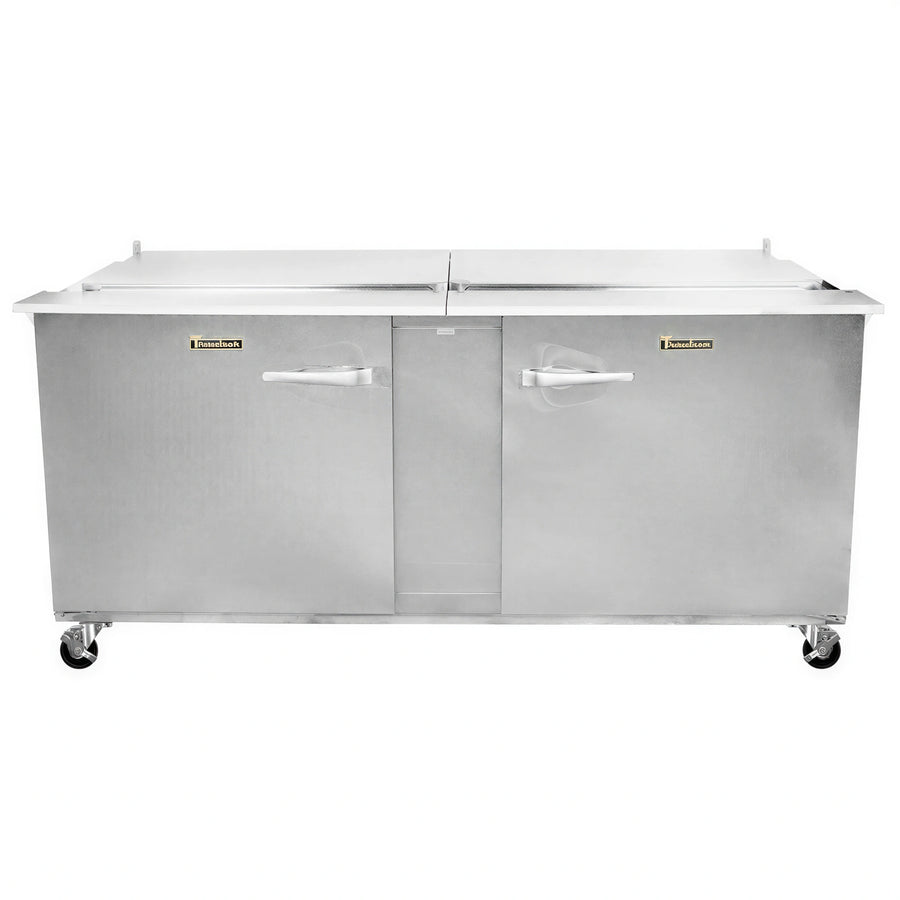

Traulsen Dealer's Choice UST7230-LR 72-Inch Two-Section Prep Table Refrigerator, 2-Door, 30-Pan, Stainless Steel

SKU: UST7230-LR
$11,267.10
Discontinued

Want to speak to an expert?

The Traulsen UST7230-LR is a 72-inch, two-section prep table refrigerator with a low-profile flat cover, left/right hinged doors, and capacity for 30 1/6-size pans. Thirty 4-inch-deep pans are included, and the unit can accommodate pans up to 6 inches deep.

Its rear-mounted, front-breathing, self-contained refrigeration system uses R-290 refrigerant. The unit features a stainless steel exterior, four shelves, electronic digital control, and six 4-inch casters.

Overall Dimensions:

72.0"W x 34.5"D x 36.0"H

Product Weight:

575.0 lb

30-pan capacity

Includes thirty 4-inch-deep plastic 1/6-size pans and can accommodate pans up to 6 inches deep.

Flat-cover prep top

Features a low-profile flat cover with a stainless steel pan cover and a full-length, reversible white nylon cutting board.

Self-contained refrigeration

Uses a rear-mounted, front-breathing refrigeration system with R-290 refrigerant.

Left/right hinged doors

Two stainless steel doors self-close and include a stay-open feature at 105 degrees.

Adjustable shelving

Four powder-coated wire shelves are provided, with two shelves per door mounted on adjustable pilasters.

Electronic control

Includes an electronic digital control with a 3-digit LED display and Fahrenheit or Celsius temperature display capability.

Mobility

Includes six 4-inch casters.

Stainless steel exterior

The exterior front, top, and sides are stainless steel; the exterior back and bottom are galvanized steel.

Sections 2
Doors 2
Door hinging Left/right
Top pan capacity 30 x 1/6-size pans
Included pan depth 4 in
Maximum pan depth Up to 6 in
Net capacity 24.5 cu ft
Shelves 4
Refrigeration Self-contained, rear mounted, front breathing
Refrigerant R-290
Compressor 1/5 HP
Operating temperature 34–38°F (1.1–3.3°C)
Voltage 115/60/1
Full-load amperage 7.2 A
Plug NEMA 5-15P
Caster quantity and size 6 x 4 in
Exterior finish Stainless steel front, top and sides
Exterior back and bottom Galvanized steel
Cutting board Full-length, reversible white nylon

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

Six-year parts and labor warranty and seven-year compressor parts warranty for self-contained models.

Frequently Asked Questions

It holds 30 1/6-size pans that are 4 inches deep. The unit can accommodate pans up to 6 inches deep, and the 4-inch-deep pans are included.
It uses a rear-mounted, front-breathing, self-contained refrigeration system with R-290 refrigerant.
The unit has two left/right hinged doors and four shelves, with two shelves per door.
The specified electrical service is 115/60/1 with a full-load amperage of 7.2 A and an attached NEMA 5-15P plug.
The unit is 72 inches wide, 34.5 inches deep, and 36 inches high on 4-inch casters.
Product documentation lists a six-year parts and labor warranty and a seven-year compressor parts warranty for self-contained models.
