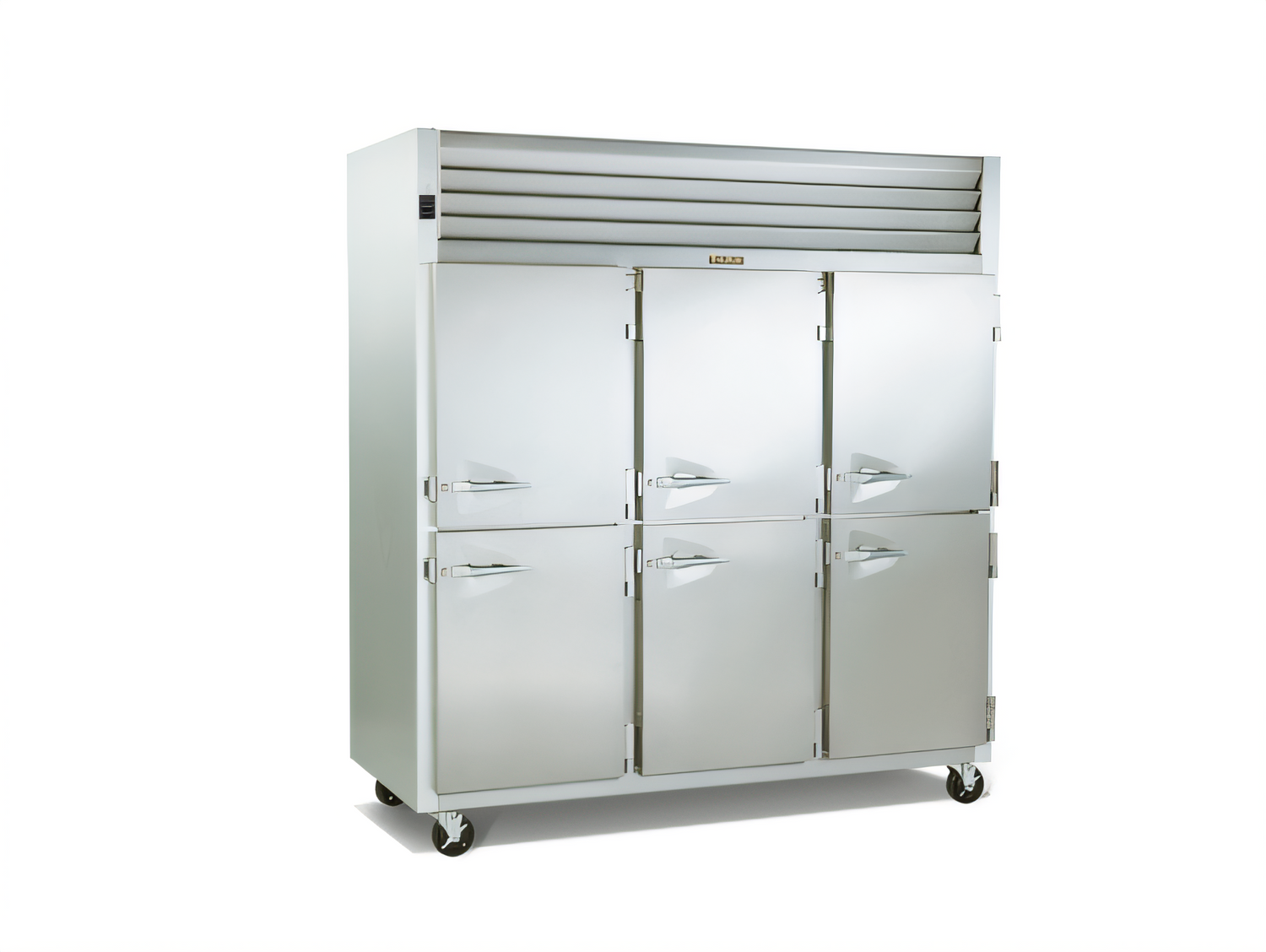

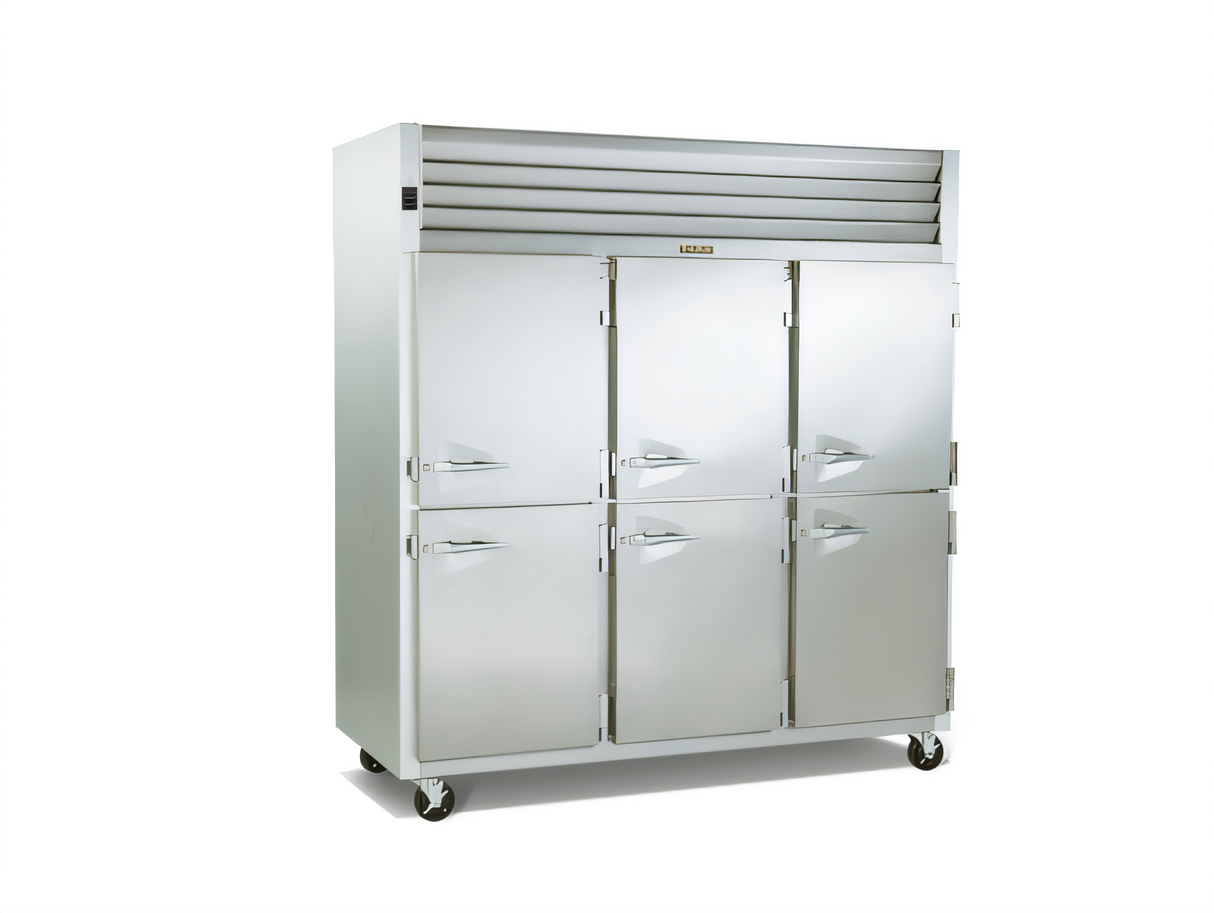

Traulsen Spec-Line RLT332W-HHS Three-Section Remote Reach-In Freezer with Half-Height Solid Doors
Traulsen Spec-Line RLT332W-HHS Three-Section Remote Reach-In Freezer with Half-Height Solid Doors
Three-Section, 86 Inch Wide, Standard Depth, Remote Refrigeration
Experience superior temperature maintenance and operational flexibility with this robust three-section remote reach-in freezer, designed for demanding commercial kitchen environments.
- Remote refrigeration system provides installation flexibility and allows for quiet operation within the kitchen.
- Durable stainless steel exterior and interior construction ensures longevity and easy cleaning.
- Equipped with Traulsen's Smart Control™ with LED display for precise temperature management and diagnostics.
- Features six wide half-height solid doors with a stay-open feature, locks, and guaranteed for life cam-lift hinges.
- Capable of maintaining temperatures down to -10°F to safely store a wide range of frozen goods.
- Includes nine adjustable, coated wire shelves, offering ample and customizable storage capacity.

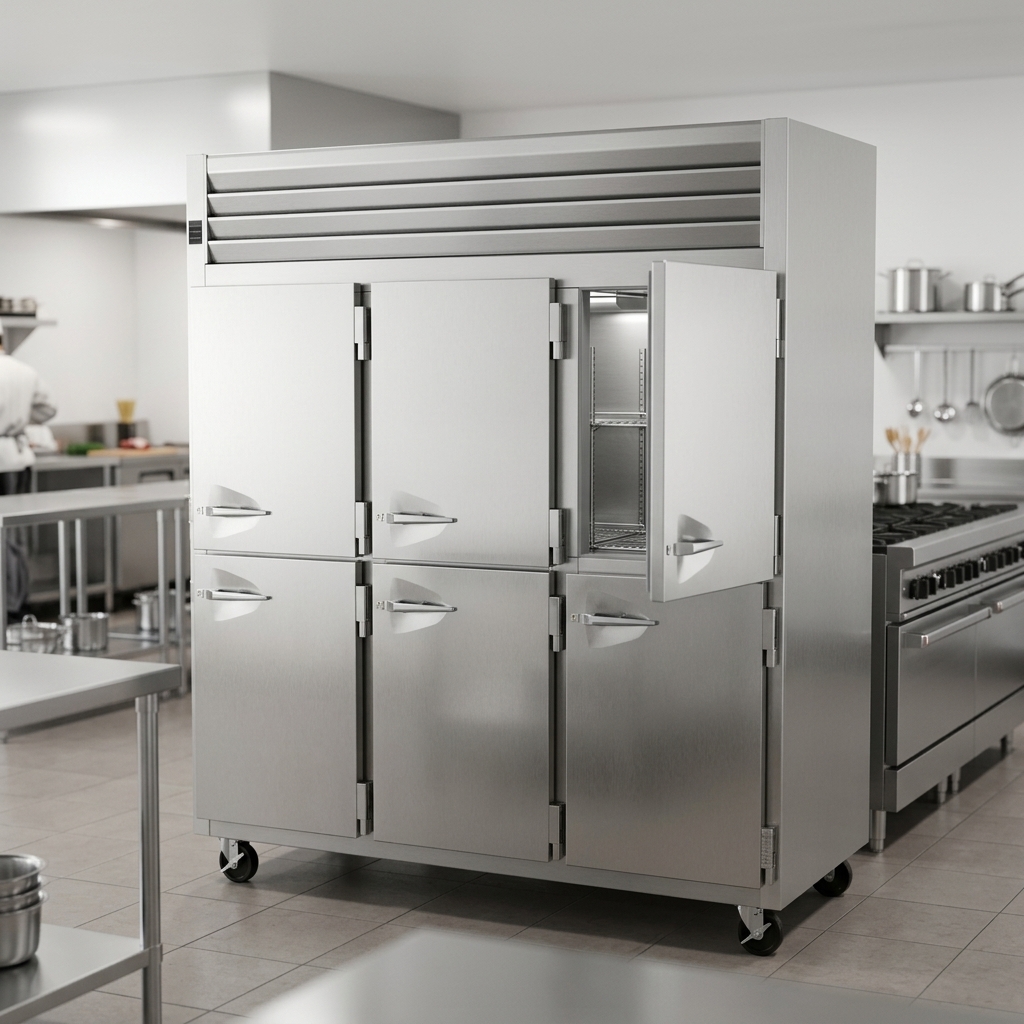

Stainless Steel Construction
The cabinet exterior front, sides, louver assembly, door, and door liner are constructed of heavy gauge stainless steel. The interior is also made from stainless steel, ensuring durability and ease of cleaning. Exterior cabinet top, back, and bottom are galvanized steel.

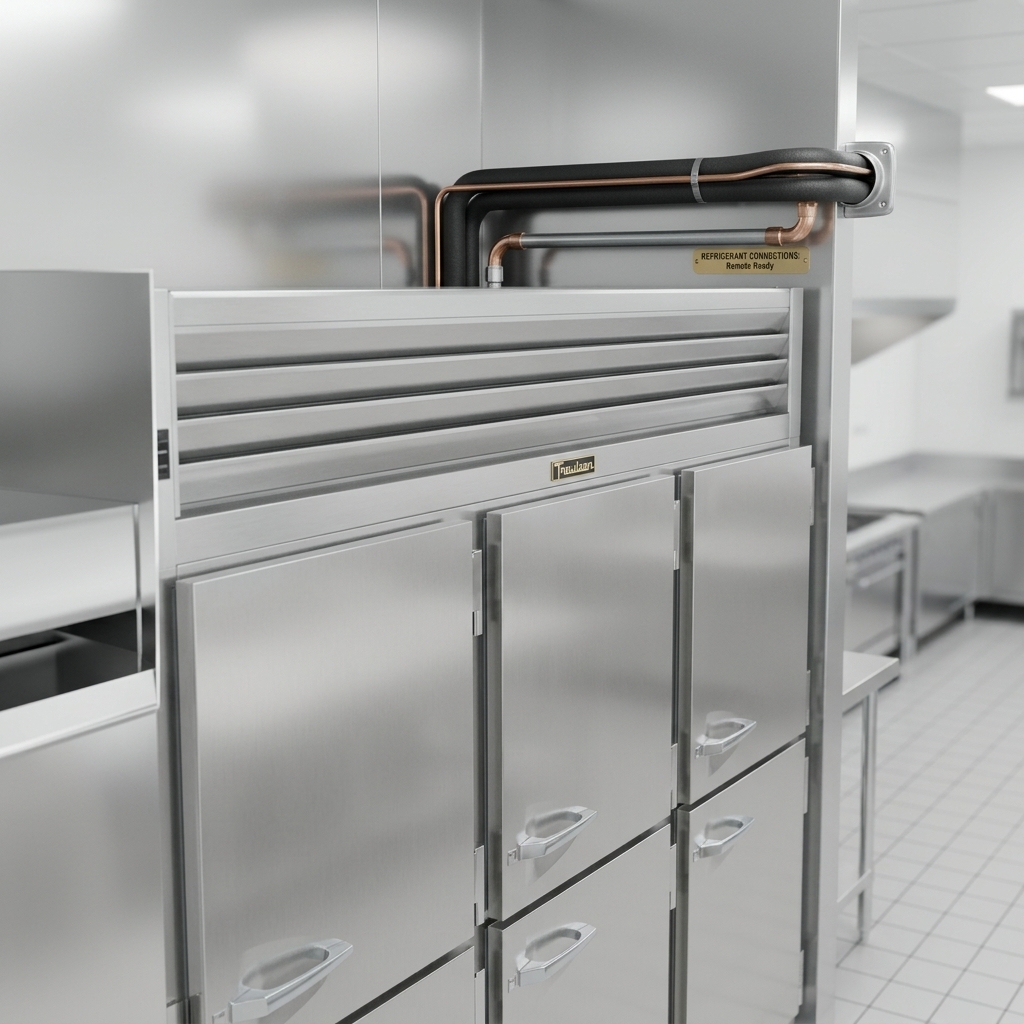

Remote Refrigeration System
Designed for remote refrigeration applications, this unit allows for the condensing unit to be placed outside the kitchen, reducing heat and noise in the workspace. Refrigerant connections are 1/4" O.D. for the liquid line and either 1/2" or 3/4" O.D. for the suction line.

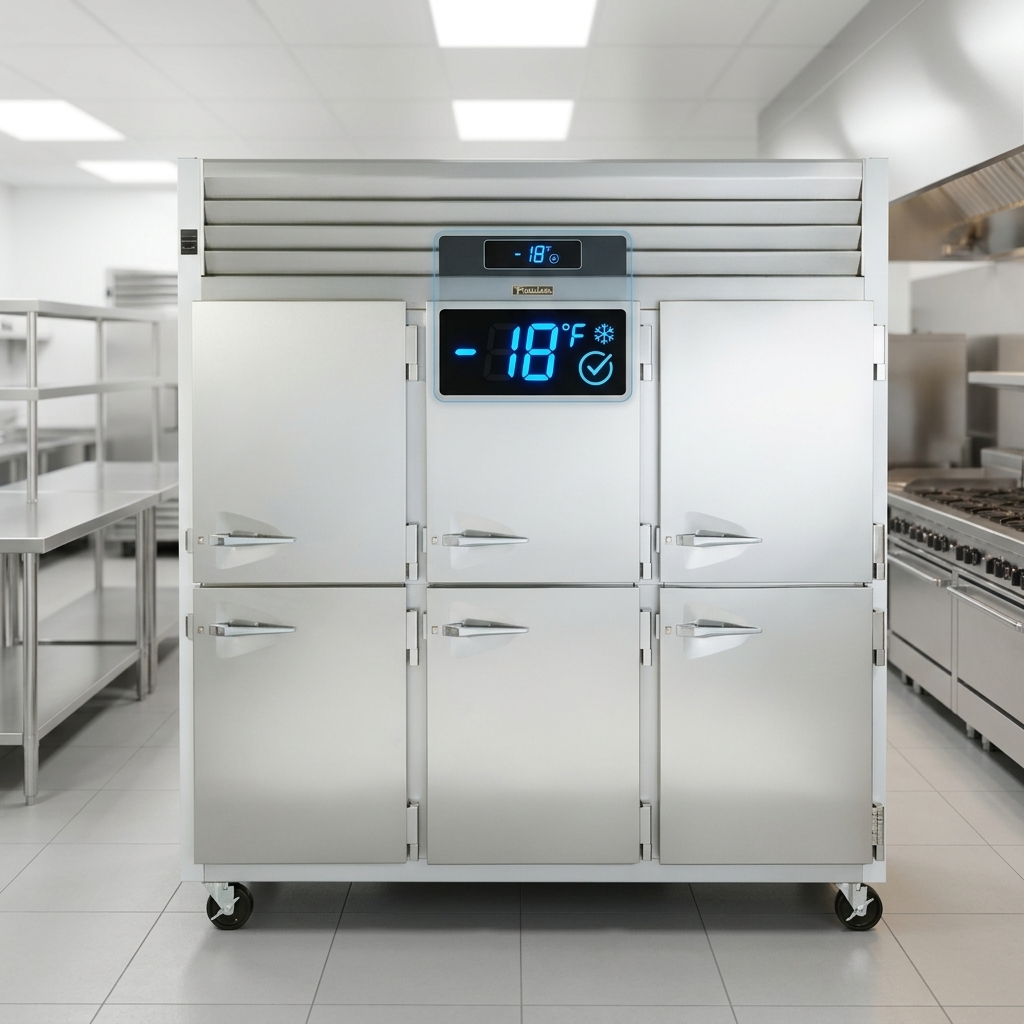

Smart Control™ with LED Display
Advanced microprocessor controls with a clear LED display optimize performance, adapt to environmental conditions, and provide sophisticated diagnostic capabilities. It offers critical alarms for events like power outages or prolonged door openings.
Half-Height Solid Doors
Features six wide half-height solid doors equipped with gasket-protecting metal door pans, removable plug cylinder locks, and 'Guaranteed for Life' gravity action, self-closing metal cam-lift hinges with a stay-open feature.
Guaranteed for Life Handles & Hinges
Includes horizontal workflow door handles and cam-lift hinges that are guaranteed for life, ensuring long-term reliability and smooth operation.
-10°F Capability
The unit is capable of operating at -10°F in ambient temperatures up to 100°F, providing excellent freezing performance.
EZ-Clean™ Door Gaskets
Magnetic snap-in door gaskets are designed for easy cleaning and increased overall gasket life, contributing to hygiene and efficiency.
Adjustable Wire Shelves
Comes standard with nine (3 per section) adjustable, full-width coated wire shelves supported on shelf pins. Each shelf has a recommended load limit of 225 lbs.
Automatic LED Interior Lighting
Interior LED lights are automatically activated when the doors are opened, providing clear visibility of contents.
High-Density Insulation
The cabinet and doors are insulated with an average of 2" thick high-density, non-CFC, foamed-in-place polyurethane for optimal temperature retention.
Anti-Condensate Door Perimeter Heater
Heaters are located behind the door opening to prevent condensation buildup, ensuring clear visibility and efficient operation.
Specifications
| Type | Reach-in Freezer |
|---|---|
| Style | Three-Section, Remote Refrigeration |
| Installation Type | Floor Model (With 6" Adjustable Stainless Steel Legs) |
| Capacity | 79.0 cu. ft. |
| Material | Stainless Steel |
| Exterior Finish | Stainless Steel |
| Interior Finish | Stainless Steel |
| Controls | Microprocessor (Smart Control™) |
| Temperature Range | -10°F Capable |
| Pan Capacity | 9 Full-Size Pans (18" x 26") with #4 Trayslides (18 levels per half-height door) |
| Compartments | 3 |
| Shelves | 9 |
| Shelf Load Limit | 225 lb. Per Shelf |
| Refrigeration Type | Remote (Refrigeration Not Included) |
| Refrigerant Type | R-407A |
| BTU | 5220 BTU/HR @ -20°F Evap |
| Voltage | 115 Volts |
| Amps | 8.5 Amps |
| Hertz | 60 Hz |
| Phase | 1-Phase |
| Plug Type | Not Supplied (Remote Unit) |
| Cord Length | Not Supplied (Remote Unit) |
| Liquid Line Connection Size | 1/4" O.D. |
| Suction Line Connection Size | 1/2" or 3/4" O.D. |
| Solenoid | Yes |
| Expansion Valve | Yes |
| Shipping Width | 87 Inches |
| Shipping Depth | 35 Inches |
| Shipping Height | 84 Inches |
| Shipping Weight | 925 lb. |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
Overall Dimensions:
86.13"W x 35.0"D x 83.25"HProduct Weight:
925.0 lbCertifications & Compliance
Warranty & Protection
6-year parts and labor warranty
