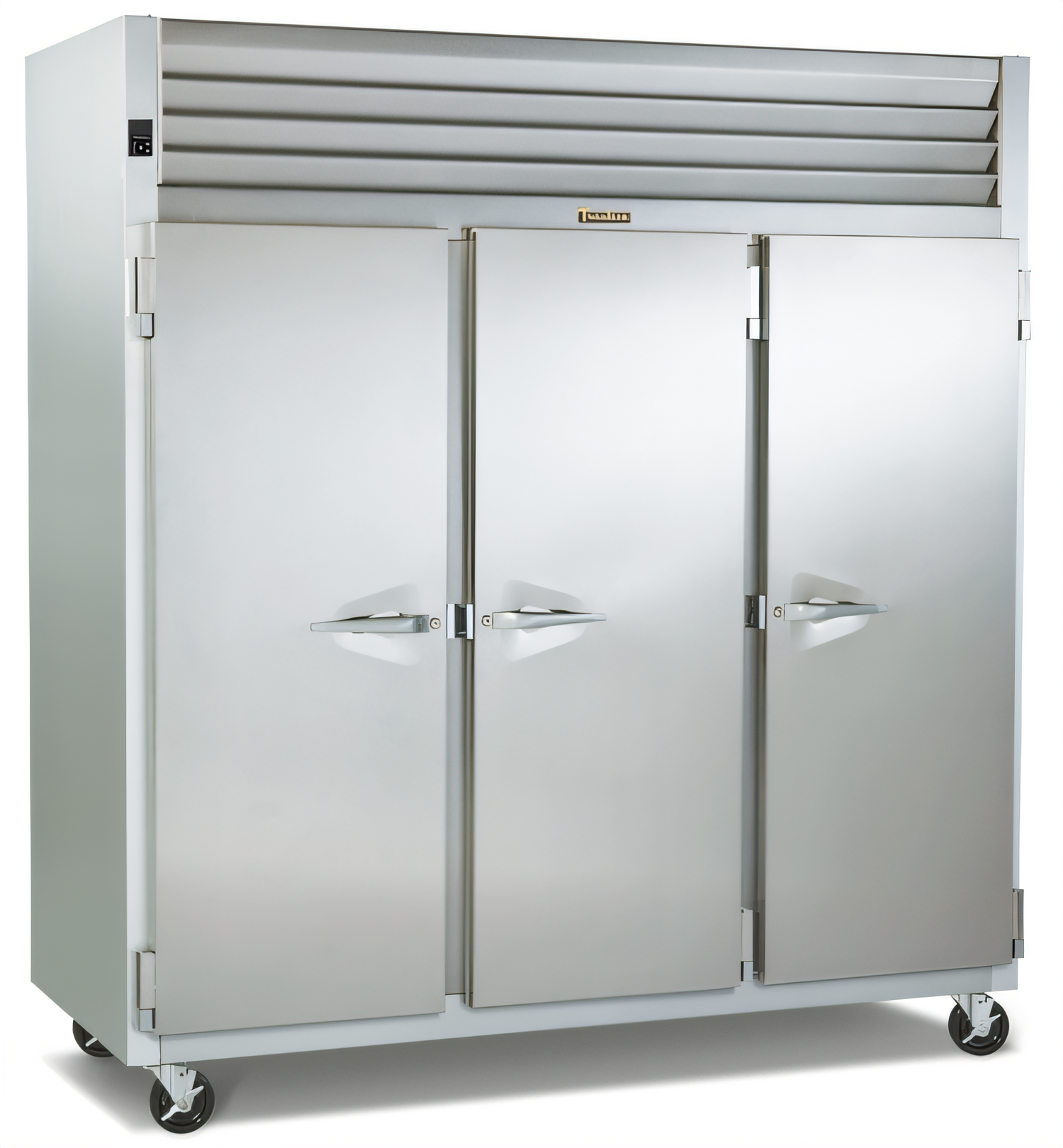

Traulsen Spec-Line RLT332N-FHS Three-Section Remote Reach-in Freezer with Narrow Full-Height Solid Doors

69.35 cu. ft., All Stainless Steel, Standard Depth

The Traulsen Spec-Line RLT332N-FHS remote reach-in freezer delivers exceptional temperature stability and durability with a spacious three-section stainless steel interior, ideal for demanding commercial kitchens.

  • Remote refrigeration system (compressor/condensing unit sold separately) for flexible installation.
  • Robust all stainless steel exterior and interior construction ensures commercial-grade durability.
  • Spacious 69.35 cu. ft. capacity across three sections with nine adjustable wire shelves.
  • Equipped with Smart Control™ microprocessor for precise temperature management and sophisticated diagnostics.
  • Narrow full-height solid doors feature EZ-Clean™ gaskets and a self-closing stay-open design for convenience and hygiene.
  • Designed to operate at -10°F even in high ambient temperatures up to 100°F.

Overall Dimensions:

76.31"W x 35.0"D x 83.25"H

Product Weight:

855.0 lb

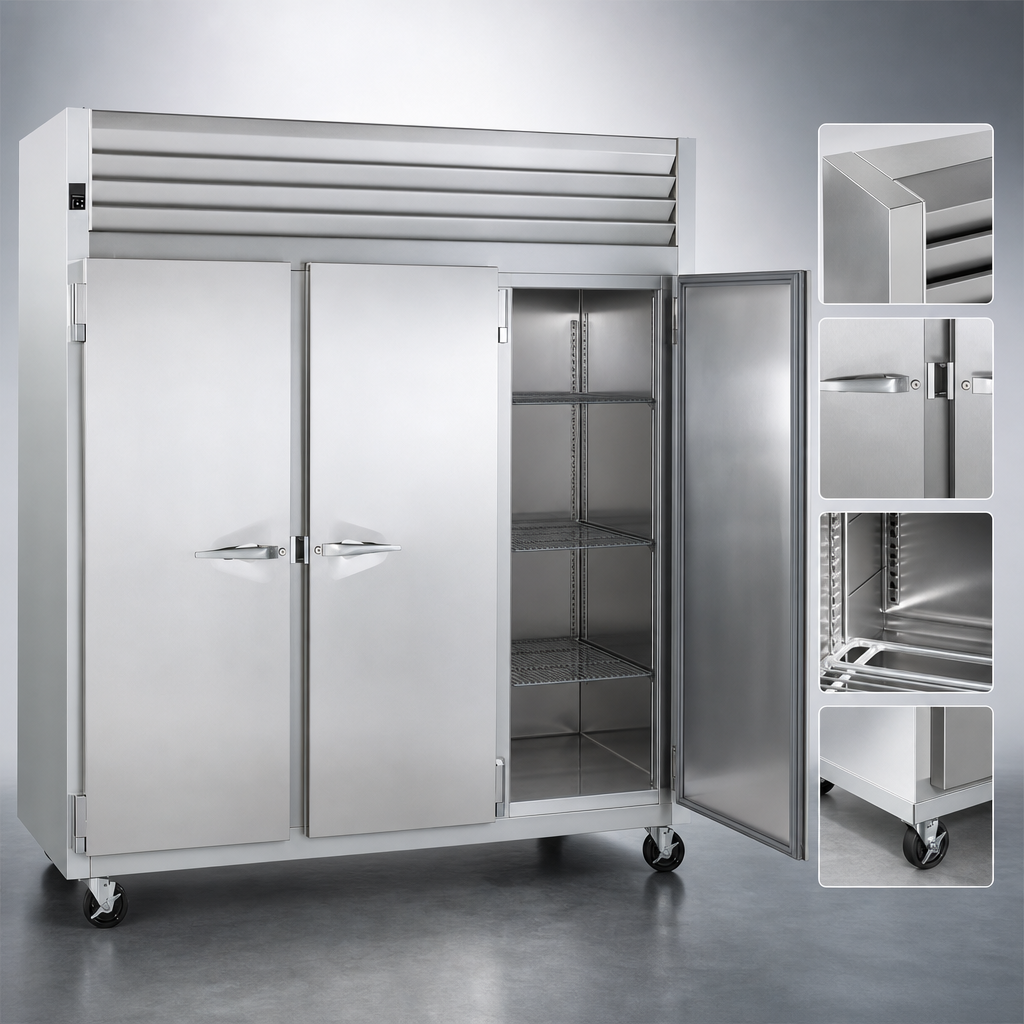

Stainless Steel Construction

Heavy gauge stainless steel exterior front, sides, louver assembly, door, and door liner with a stainless steel interior. The exterior cabinet top, back, and bottom are constructed of heavy gauge galvanized steel for durability.

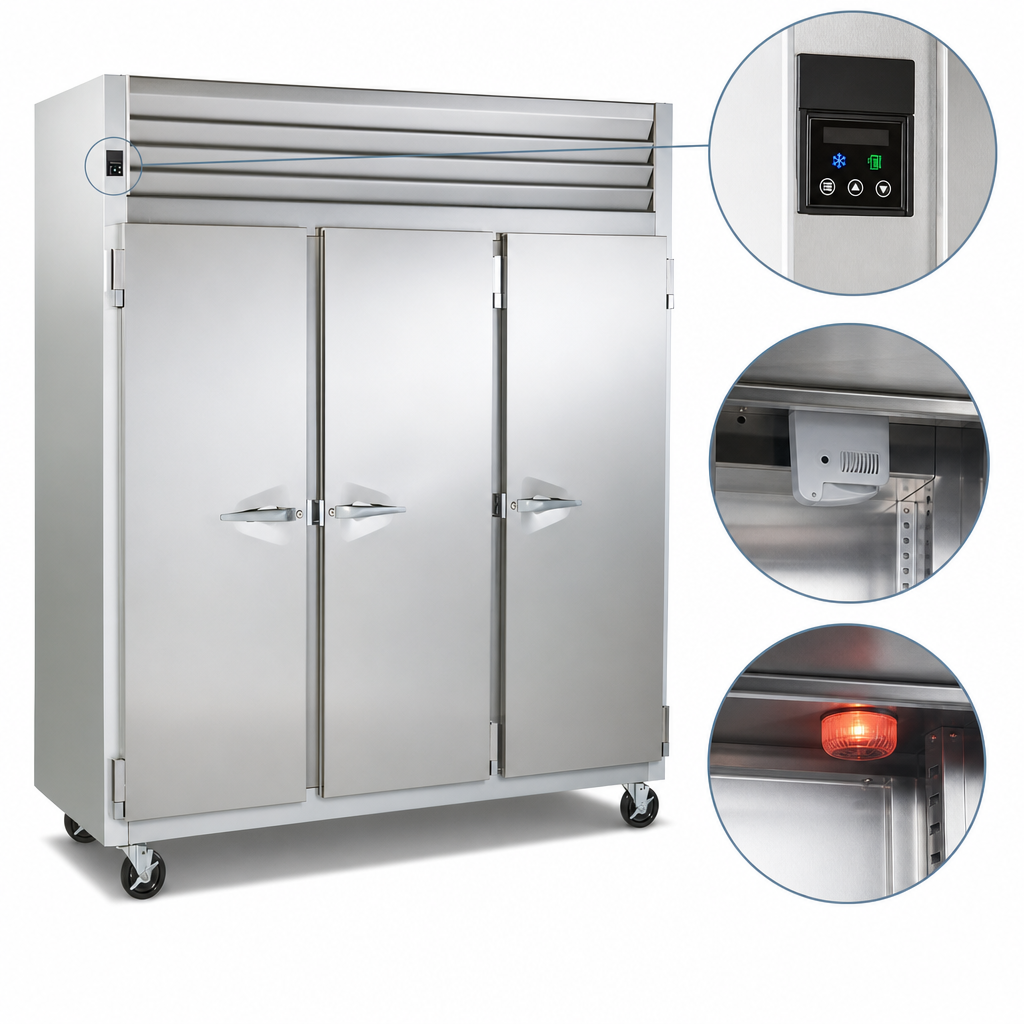

Smart Control™ Microprocessor

Features advanced control algorithms and sophisticated diagnostic capabilities to optimize performance. Utilizes smart sensors to adapt refrigeration system operation and offers visual alarms for critical events like power outages or prolonged door opening.

-10°F Capable Operation

The unit is capable of maintaining a temperature of -10°F even in ambient conditions up to 100°F, ensuring safe food storage.

Narrow Full-Height Solid Doors

Equipped with removable plug cylinder locks, guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with a stay-open feature. Doors feature seamless, polished metal corners and a gasket-protecting metal door pan.

EZ-Clean™ Door Gaskets

Magnetic snap-in door gaskets with a simplified profile and EZ-Clean™ material simplify cleaning and increase overall gasket life, lasting up to 4x longer than PVC gaskets.

Adjustable Wire Shelves

Includes three adjustable, coated wire shelves per section (nine total), which are supported on shelf pins and factory-installed. Each shelf has a recommended load limit of 225 lbs.

Automatically Activated LED Lighting

Interior LED lights are automatically activated when the doors are opened, providing clear visibility of contents.

Anti-Condensate Door Perimeter Heater

Heaters are strategically located behind the door opening to prevent condensation buildup, maintaining cabinet integrity and visibility.

High-Density Foamed-in-Place Insulation

Both the cabinet and doors are insulated with an average of 2 inches thick, high-density, non-CFC, foamed-in-place polyurethane for superior thermal efficiency.

Rear Biased Return Air Duct

Designed to protect against the introduction of warm kitchen air, promoting even temperature maintenance and efficient operation throughout the cabinet.

Guaranteed for Life Cam-Lift Hinges and Workflow Door Handles

Features durable cam-lift hinges and horizontally mounted workflow door handles that limit protrusion from the door face, both backed by a lifetime warranty for long-term reliability.

Remote Refrigeration Ready

Designed for use with a remote refrigeration system (compressor and condensing unit not included). Includes a solenoid valve and expansion valve, wired directly to the control, simplifying external electrical connections.

Type Reach-in Freezer
Style Three-Section, Remote
Installation Type Floor Model (With 6" Adjustable Legs)
Capacity 69.35 cu. ft.
Pan Capacity 9 Full-Size Pans
Compartments 3
Material (Exterior) Stainless Steel (Front, Sides, Door, Louver), Galvanized Steel (Top, Back, Bottom)
Interior Finish Stainless Steel
Controls Microprocessor with LED Display
Temperature Range -10°F to 0°F
Shelves 9
Voltage 115 Volts
Amps 5.4 Amps
Hertz 60 Hz
Phase 1-Phase
Refrigeration Type Remote
Refrigerant Type R-407A
BTU 5220 BTU @ -20°F Evap
Liquid Line Connection Size 1/4" O.D.
Suction Line Connection Size 1/2" or 3/4" O.D.
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 42 Inches
Shipping Depth 91 Inches
Shipping Height 85 Inches
Shipping Weight 1010 lbs.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

6-year parts and labor warranty

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Remote models PDF Download PDF Accessory kits PDF Download PDF Exterior laminates PDF Download PDF Sell sheet PDF Download PDF Tray racks PDF Download PDF Quick start guide PDF Download PDF Shipping dimensions & product weights PDF Download PDF Oversize equipment quick ref guide PDF Download PDF Traulsen smartconnect™ PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The standard operating temperature range for this freezer is -5°F to 0°F, but it is capable of reaching and maintaining -10°F in ambient temperatures up to 100°F.
The Smart Control™ system uses advanced algorithms and smart sensors to optimize performance and precisely regulate the unit. It also features sophisticated diagnostics and provides visual alarms for critical events such as power outages or prolonged door openings, ensuring food safety and operational efficiency.
Remote models like the RLT332N-FHS do not include the compressor or condensing unit, which are supplied by others. This allows for flexible placement of the refrigeration system outside the kitchen. Remote units include a solenoid valve and expansion valve, but do not come with a power cord and plug, and the standard 7-year compressor warranty does not apply.
This Traulsen freezer comes with a 6-year warranty covering both parts and labor. The standard 7-year compressor warranty does not apply to this remote unit, as the compressor is supplied separately.
The freezer includes nine (9) adjustable, coated wire shelves, with three shelves per section. For narrow N-width models, each shelf level can accommodate one 18" x 26" pan.
To clean the condenser coil, first disconnect the electrical power. Remove the two bottom screws securing the louver panel and pivot it upwards to access the front-facing condenser. Vacuum or brush any dirt, lint, or dust from the finned coil, around the compressor, and other cooling system parts. If heavily clogged, use compressed air to clear it. Reverse the steps to reattach the louver panel.
