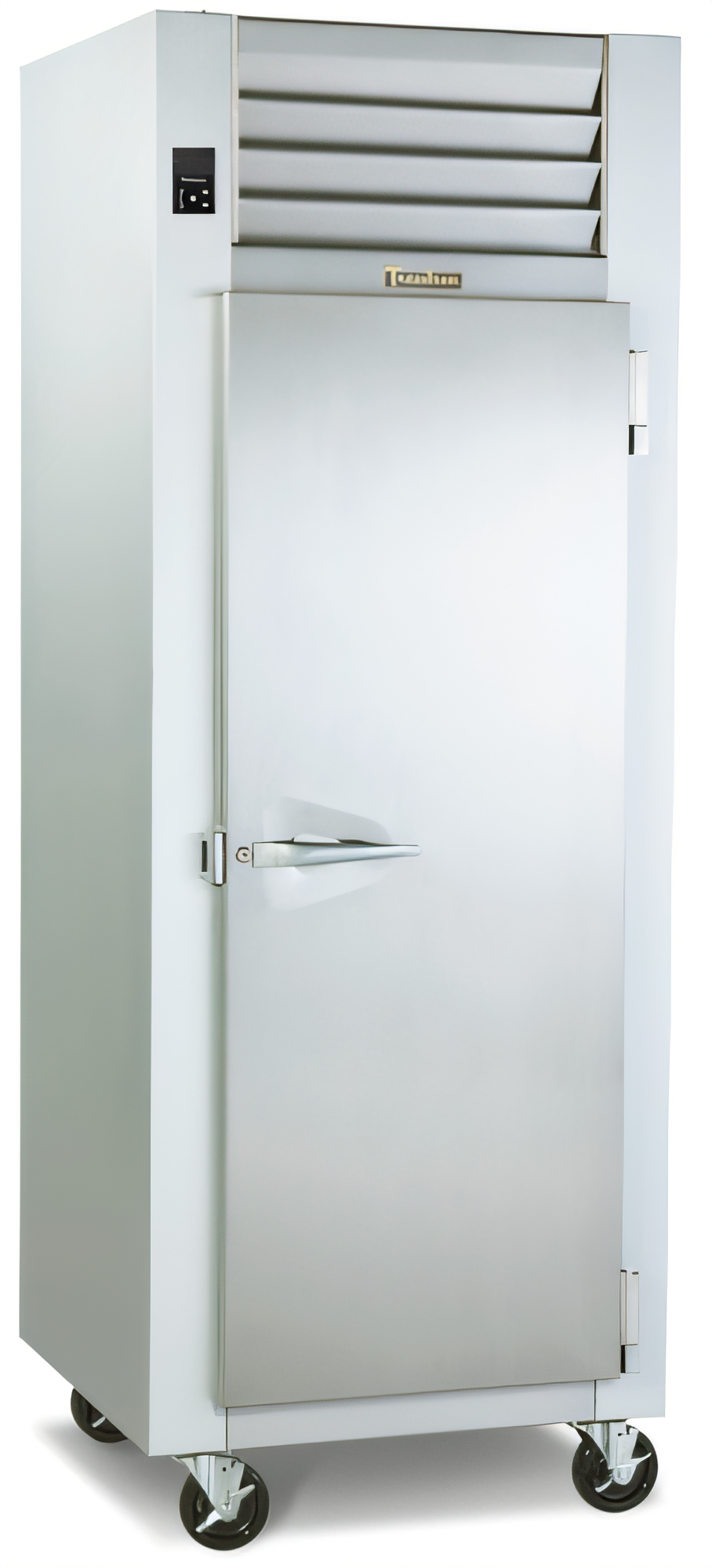

Traulsen Spec-Line RLT132W-HHS One-Section Standard Depth Reach-in Freezer

24.2 cu. ft., Stainless Steel, Remote Refrigeration, Half-Height Wide Doors

Designed for demanding commercial kitchens, this Traulsen Spec-Line remote freezer delivers superior temperature maintenance and precise control for optimal food preservation.

  • Remote refrigeration design allows for flexible placement and optimal kitchen efficiency (condensing unit not included).
  • Constructed with a durable all-stainless steel exterior and interior for longevity and easy cleaning.
  • Features Traulsen's Smart Control™ microprocessor with critical alarms for accurate temperature management.
  • Equipped with wide half-height doors and magnetic EZ-Clean™ gaskets that are easy to remove, clean, and replace.
  • Provides a spacious 24.2 cu. ft. capacity with three adjustable wire shelves per section.
  • Capable of maintaining freezer temperatures from -5° to 0°F, with programmability down to -10°F.

Overall Dimensions:

29.88"W x 35.0"D x 83.25"H

Product Weight:

435.0 lb

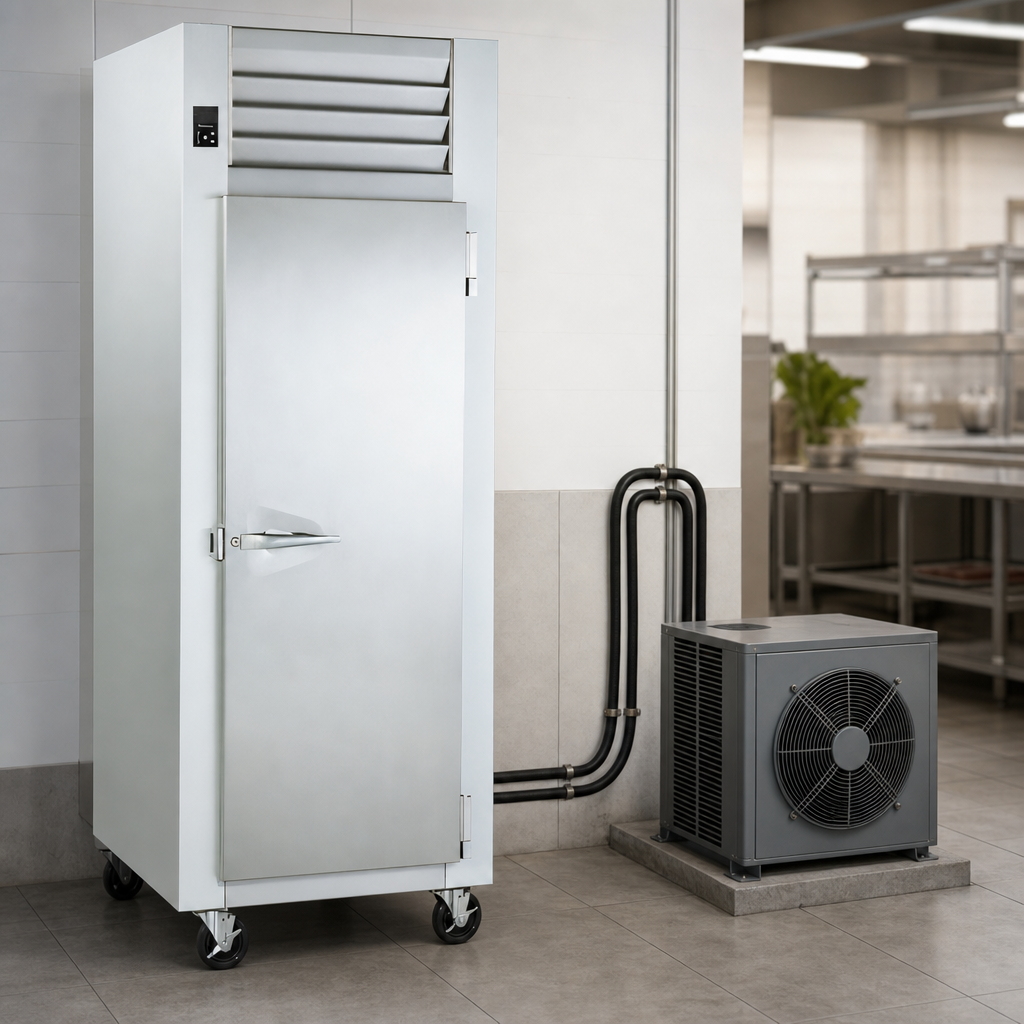

Remote Refrigeration System

Designed for remote refrigeration applications, providing flexibility in kitchen layout and reduced heat/noise in the work area. Condensing unit not supplied by Traulsen.

Remote Refrigeration System

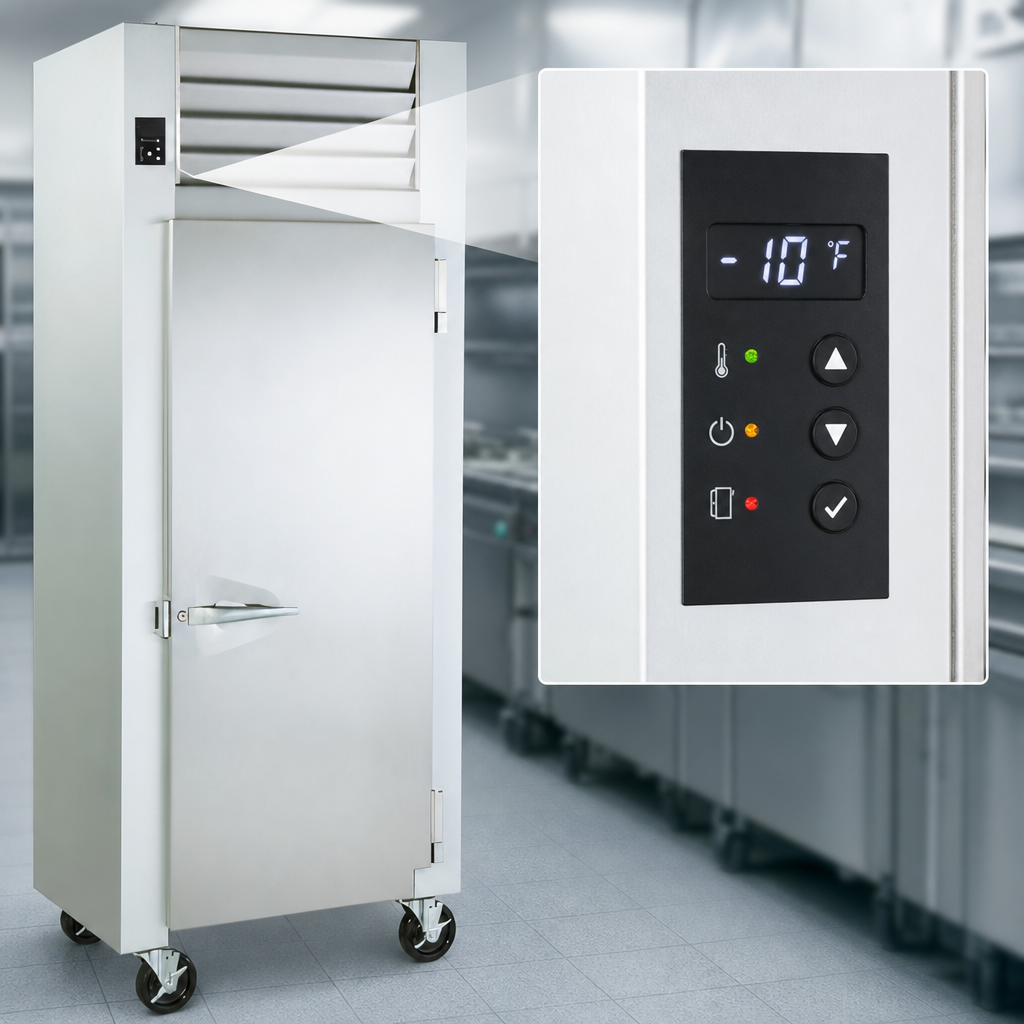

Smart Control™ Microprocessor

Ensures precise temperature control and includes advanced diagnostics and critical alarms for cabinet temperature, power interruption, and door open status to maintain food safety.

Smart Control™ Microprocessor

Durable Construction

Features a robust stainless steel exterior and interior, with brazed system connections and 100% foamed-in-place construction for long-term equipment life.

EZ-Clean™ Gaskets

Magnetic snap-in door gaskets are easy to remove and clean, lasting up to four times longer than traditional PVC gaskets.

Adjustable Shelving

Comes standard with three coated wire shelves per section, mounted on pins for easy adjustment and versatile storage.

Flexible Temperature Range

Operates at a standard freezer temperature of -5° to 0°F, with the ability to be programmed down to -10°F.

Gasket-Protecting Door Pans

Raised metal door pans protect the door gaskets from impacts, extending their lifespan and reducing replacement frequency.

Heavy-Duty Door Features

Equipped with self-closing, stay-open doors that include locks, cam-lift hinges, and workflow door handles, all backed by a lifetime warranty.

Condensate Management

Remote models include a drain tube exiting the evaporator compartment from which condensate will drip, requiring provisions for condensate removal by the operator.

SmartConnect™ Compatibility

Optionally compatible with Traulsen's SmartConnect™ app (with WiFi connectivity) for remote monitoring of operating temperatures, system performance, and receiving critical alerts.

Type Reach-in Freezer
Style One-Section
Installation Type Floor Model (With Legs)
Refrigeration Type Remote
Material Stainless Steel
Interior Finish 304 Stainless Steel
Exterior Finish Stainless Steel
Door Type Solid
Door Style Half-Height Hinged Wide
Capacity 24.2 cu. ft.
Shelf Capacity 3 per section
Shelves 3 Adjustable Wire Shelves
Controls Microprocessor (Smart Control)
Temperature Range -5° to 0°F (programmable to -10°F)
Voltage 115 Volts
Amps 5.4 Amps
Hertz 60 Hz
Phase 1-Phase
Refrigerant Type R-407A
BTU 2160 BTU (Required at -20°F Evap)
Liquid Line Connection Size 1/4 Inches O.D.
Suction Line Connection Size 1/2 or 3/4 Inches O.D.
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 35 Inches
Shipping Height 84 Inches
Shipping Weight 435 lb.
Country of Origin USA

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

6-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Remote models PDF Download PDF Owner's manual PDF Download PDF Quick start guide PDF Download PDF Shipping dimensions & product weights PDF Download PDF Accessory kits PDF Download PDF Traulsen smartconnect™ PDF Download PDF Exterior laminates PDF Download PDF Sell sheet PDF Download PDF Tray racks PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The standard operating temperature range for this freezer is -5° to 0°F, but it can be programmed to operate as low as -10°F.
No, this is a remote model, which means the condensing unit (compressor) is not included and must be supplied and installed by a qualified refrigeration technician based on the required BTU rating and jobsite requirements.
Remote models are supplied standard with a drain tube exiting the evaporator compartment from which condensate will drip. Provisions must be made by the operator for proper condensate removal, such as an extended drain line or a top-mounted condensate evaporator (supplied by others).
Yes, this unit is compatible with Traulsen's SmartConnect™ app (with optional WiFi connectivity), which allows you to monitor cabinet temperature, view defrost settings, check door status, and receive email alerts for alarms like high temperature or power failure.
This model features wide, half-height solid doors equipped with magnetic EZ-Clean™ gaskets and self-closing, stay-open functionality, along with locks for security.
The refrigeration connections provided are 1/4" O.D. for the liquid line and either 1/2" or 3/4" O.D. for the suction line.
