Traulsen Spec-Line RIF232L-FHS Two-Section Remote Roll-In Freezer

SKU: RIF232L-FHS
$34,310.93
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

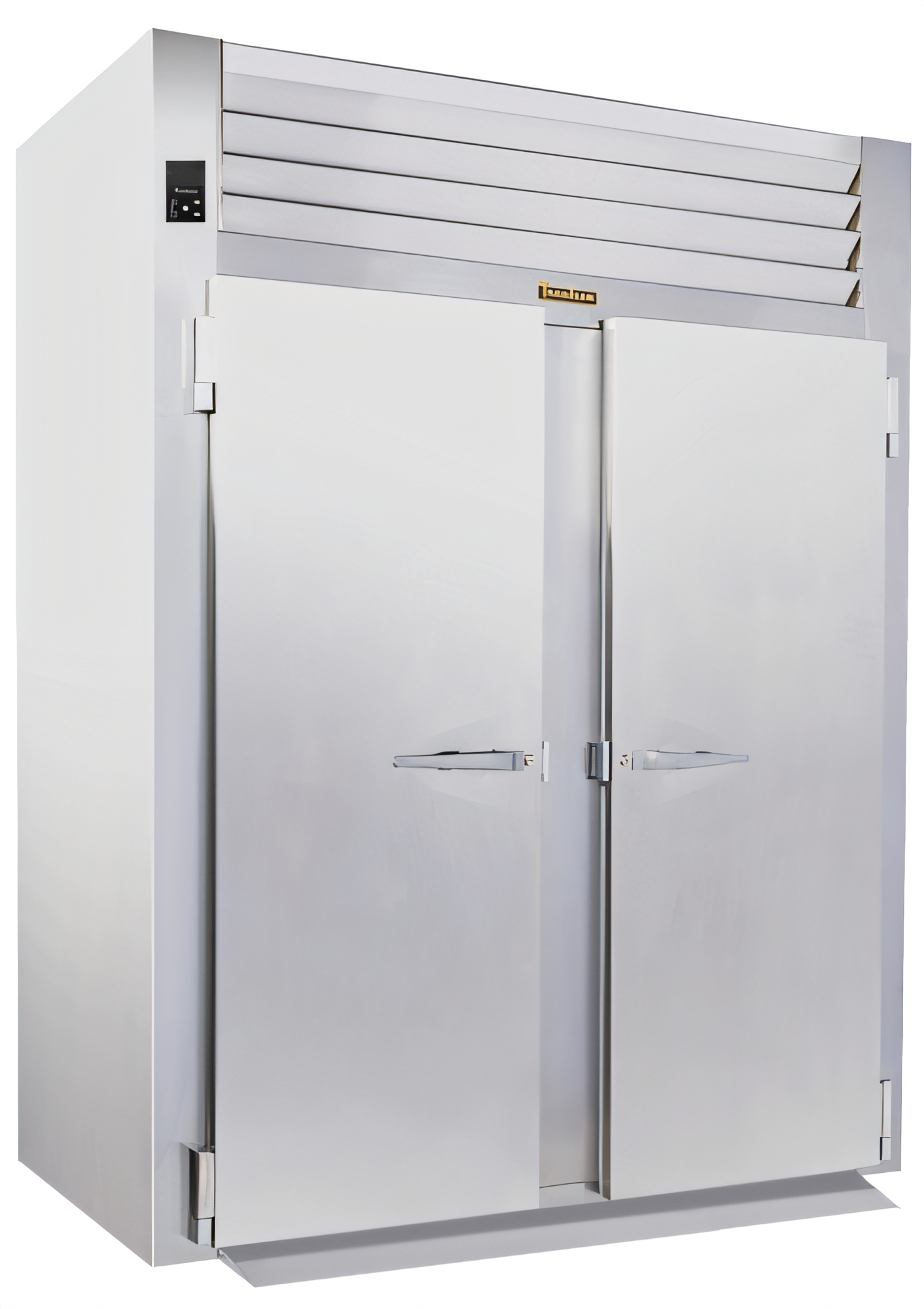

Traulsen Spec-Line RIF232L-FHS Two-Section Remote Roll-In Freezer

For 66" High Racks, Standard Depth, Full-Height Doors, Stainless Steel

Designed for maximum efficiency and food safety, the Traulsen Spec-Line RIF232L-FHS remote roll-in freezer provides reliable, consistent freezing for demanding commercial operations.

  • Durable all-stainless steel exterior and interior construction ensures longevity and easy cleaning.
  • Accommodates two 66-inch high roll-in racks (racks sold separately) for high-volume storage.
  • Remote refrigeration system (refrigeration components not included) offers installation flexibility and reduced heat/noise in the kitchen.
  • Traulsen Smart Control™ with LED display provides precise temperature management and critical diagnostic alarms.
  • Full-height, self-closing doors with locks and a stay-open feature enhance operational convenience and security.
  • Guaranteed for life cam-lift hinges and horizontal workflow door handles provide lasting durability and ease of use.
  • Capable of maintaining temperatures down to -10°F for optimal frozen food preservation.

Overall Dimensions:

68.0"W x 35.56"D x 83.25"H

Product Weight:

820.0 lb

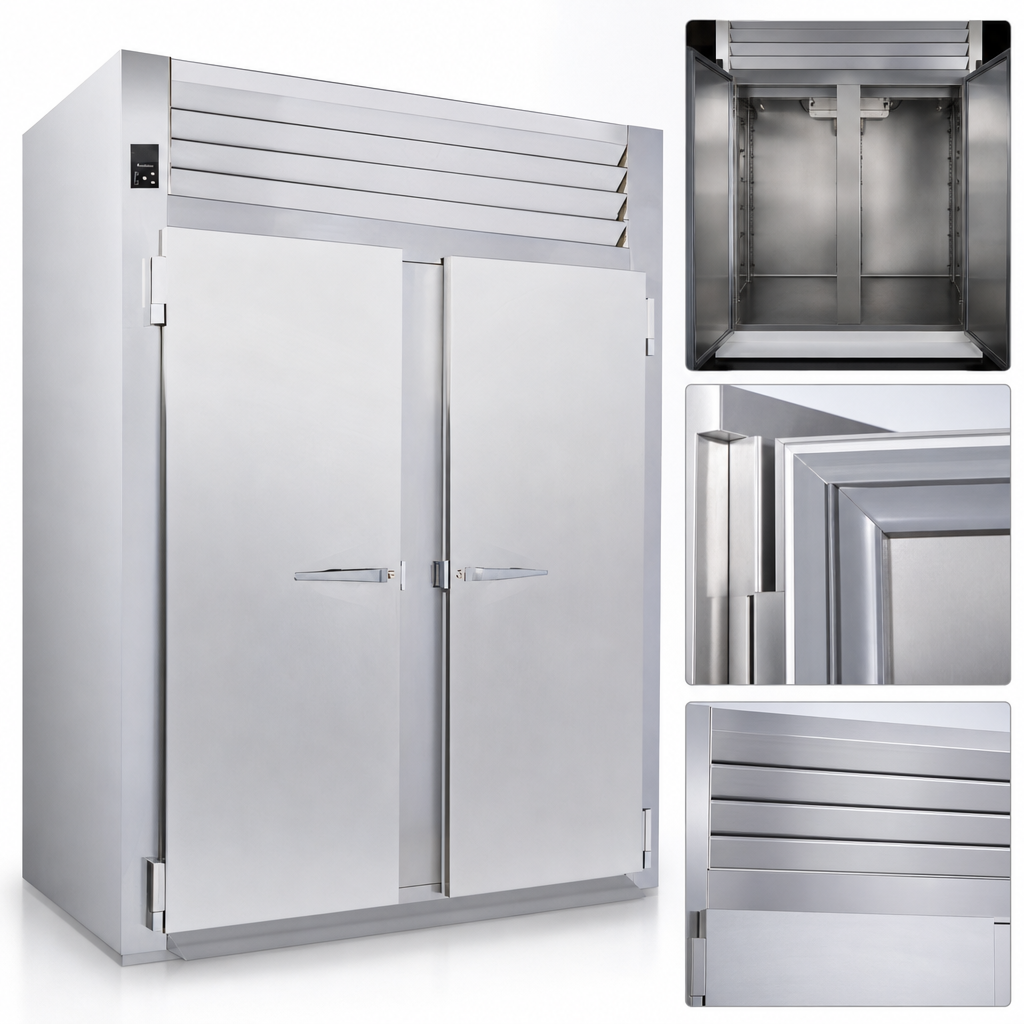

Stainless Steel Construction

Cabinet exterior front, sides, louver assembly, door, and door liner are constructed of heavy gauge stainless steel, with a stainless steel interior and floor for durability and hygiene. Exterior top, back, and bottom are galvanized steel.

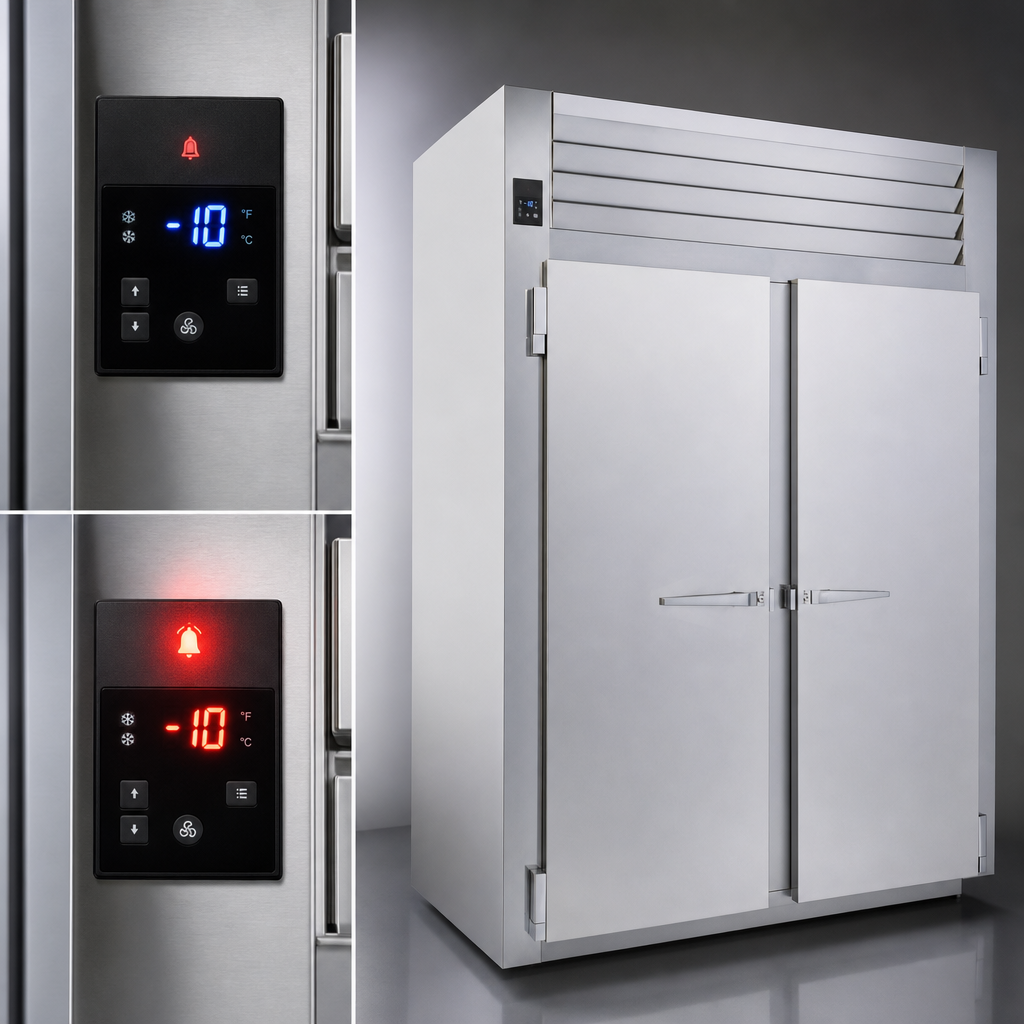

Smart Control™ with LED Display

Features advanced control algorithms and sophisticated diagnostic capabilities to optimize performance, adapting to environments and usage patterns with visual alarms for critical events like power outages or prolonged door openings.

Full-Height Doors with Locks

Equipped with two full-height stainless steel doors, each featuring removable plug cylinder locks for security and anti-condensate perimeter heaters.

Self-Closing Doors with Stay Open Feature

Gravity action, self-closing metal, cam-lift hinges include a stay-open feature at 105° for convenient loading and unloading.

Guaranteed for Life Hinges and Handles

Heavy-duty, metal cam-lift hinges and horizontal workflow door handles are guaranteed for life for lasting reliability.

Accommodates Roll-In Racks

Designed to accommodate two roll-in racks up to 27 inches wide, 29 inches deep, and 66 inches high (racks provided by others).

Rear Biased Return Air Duct

Protects against the introduction of warm kitchen air, promoting even temperature maintenance and efficient operation.

Magnetic Snap-In EZ-Clean™ Door Gaskets

Magnetic snap-in gaskets simplify cleaning and increase overall gasket life, lasting up to 4x longer than PVC.

Thermographic Expansion Valve Metering Device

Ensures efficient refrigerant flow and temperature control.

Stainless Steel Interior Rack Guides & Threshold Ramps

Readily removable stainless steel interior rack guides and an attachable stainless steel ramp facilitate easy loading and unloading of roll-in racks.

Automatically Activated LED Lights

Interior LED lighting automatically illuminates when doors are opened for clear visibility.

Stainless Steel Breaker Caps

Damage-resistant stainless steel breaker caps protect cabinet insulation.

Condensate Drain Tube

Includes a drain tube exiting the evaporator compartment on top of the cabinet for condensate removal, requiring external provisions by the operator.

Load-Sure™ Guard

Protects the cabinet from improper loading, allowing full capacity use without blocking airflow.

Type Freezer
Style Roll-In
Installation Type Floor Model
Refrigeration Type Remote
Compartments 2
Capacity 73.47 Cubic Feet
Pan Capacity 2 Roll-In Racks (66" High)
Controls Smart Control™ with LED Display
Temperature Range -10°F
Material Stainless Steel
Exterior Finish Stainless Steel
Interior Finish Stainless Steel
Voltage 115 Volts
Amps 8.5 Amps
Hertz 60 Hz
Phase 1-Phase
Refrigerant Type R-407A
BTU 5220 BTU @ -20°F Evap
Refrigeration Liquid Line Size 1/4 Inches O.D.
Refrigeration Suction Line Size 1/2 Inches or 3/4 Inches O.D.
Selling Unit Each
Units Per Case 1
Shipping Width 73 Inches
Shipping Depth 44 Inches
Shipping Height 92.5 Inches
Shipping Weight 985 lbs

Frequently Asked Questions

The RIF232L-FHS is a remote freezer model, meaning it requires an external refrigeration system (compressor and condenser are not included with the unit). It uses R-407A refrigerant and has specific liquid and suction line connections.
This remote freezer unit is capable of maintaining an operating temperature of -10°F.
The unit requires 115 Volts, 60 Hz, 1-Phase, drawing 8.5 Amps. A cord and plug are not supplied with remote units, as power is primarily for the controls.
The RIF232L-FHS is designed to accommodate two roll-in racks up to 27 inches wide by 29 inches deep by 66 inches high. Racks are supplied by others.
Remote models like the RIF232L-FHS include a drain tube exiting the evaporator compartment on top of the cabinet from which condensate will drip. Provisions must be made by the operator for condensate removal, and optional external condensate evaporators or drain lines can be supplied by others.
To manually defrost the unit, press the Minus (-) key and the Esc (X) key simultaneously and hold for 5 seconds. The Defrost Symbol will illuminate on the LED display, indicating the cycle is in process.
