Traulsen Spec-Line R-Series Roll-In Freezer for 66-Inch High Racks, Full-Height Solid Door, Self-Contained

SKU: RIF132LUT-FHS
$24,057.99
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Frozen Food Storage & Dispensers New Arrivals Reach-in Freezers Reach-In Refrigerators & Freezers Restaurant Equipment Traulsen

Traulsen Spec-Line R-Series Roll-In Freezer for 66-Inch High Racks, Full-Height Solid Door, Self-Contained

35.3 Cu. Ft., Stainless Steel Interior & Exterior, 115V/60Hz, R-290

Built for high-volume roll-in storage, this self-contained freezer combines 66-inch rack capacity, durable stainless steel construction, and easy-service Smart Control refrigeration.

  • Designed to hold one 66-inch high roll-in rack for fast loading and unloading.
  • Stainless steel exterior and interior help withstand demanding kitchen use and simplify cleaning.
  • Top-mounted self-contained refrigeration uses low-GWP R-290 and a StayClear condenser to streamline maintenance.
  • Smart Control microprocessor system provides LED display, diagnostics, and alarm protection.
  • Full-height locking solid door self-closes and stays open when needed, with automatically activated interior LED lighting.
  • 115V/60Hz single-phase operation includes a 9-foot cord and NEMA 5-15P plug.

Overall Dimensions:

35.5"W x 35.56"D x 83.25"H

Product Weight:

635.0 lb

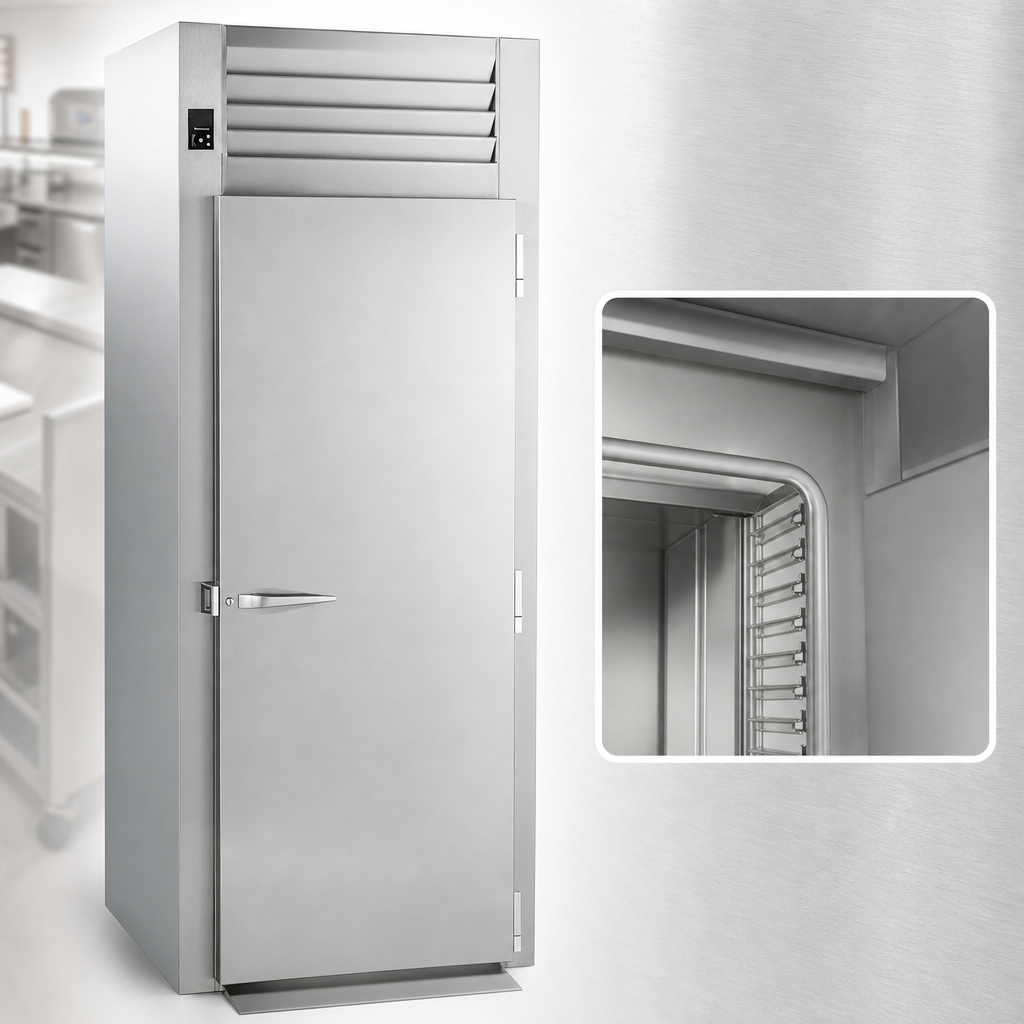

Stainless Steel Construction

Heavy-gauge stainless steel exterior and interior provide durability and make cleanup easier.

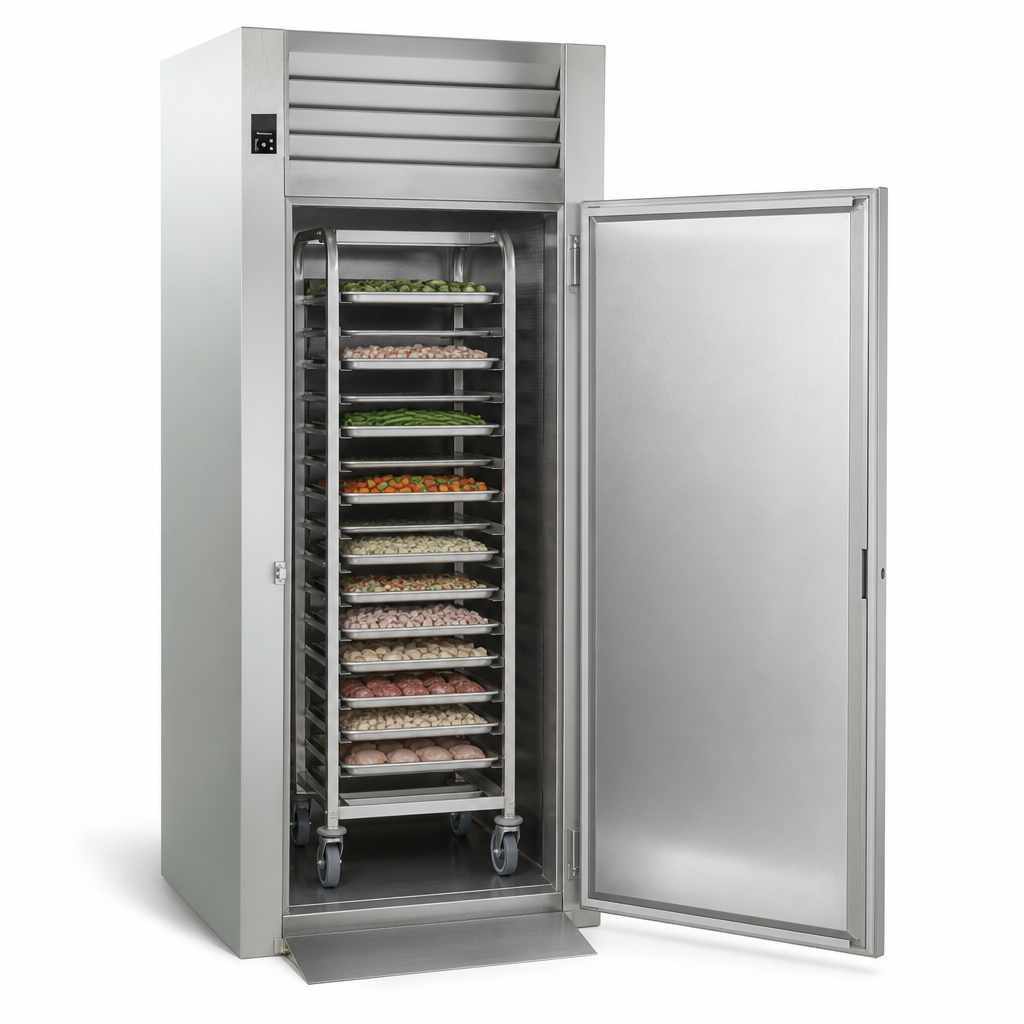

Roll-In Rack Capacity

Accommodates one 66-inch high rack supplied by others, with stainless steel rack guides and a threshold ramp.

Self-Contained R-290 Refrigeration

Top-mounted balanced refrigeration system uses environmentally friendly R-290 refrigerant.

StayClear Condenser Coil

Finless condenser design helps simplify preventive maintenance and service access.

Smart Control System

Microprocessor control with LED display, diagnostics, and visual alarms helps manage performance.

Full-Height Locking Door

Solid door includes cam-lift hinges, a lock, and self-closing, stay-open operation.

Automatic Interior LED Lighting

Interior lights activate automatically when the door opens.

Easy-Clean Sealing and Drainage

Magnetic EZ-Clean gasket, anti-condensate door heater, and non-electric condensate evaporator support reliable operation.

Type Roll-In Freezer
Style Full-Height Solid Door
Installation Type Floor Model
Capacity 35.3 Cubic Feet
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Controls Smart Control
Refrigeration Type Self-Contained
Refrigerant Type R-290
Temperature Range 0°F to -5°F
BTU 1,750 BTU/HR
Voltage 115 Volts
Amps 7.6 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 9 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 42 Inches
Shipping Depth 48 Inches
Shipping Height 94 Inches
Shipping Weight 648 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

6-year parts and labor; 7-year compressor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Sell sheet PDF Download PDF Remote models PDF Download PDF Quick start guide PDF Download PDF Traulsen smartconnect™ PDF Download PDF Exterior laminates PDF Download PDF Shipping dimensions & product weights PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accommodates one 66-inch high roll-in rack supplied by others.
It uses a top-mounted, self-contained balanced refrigeration system with R-290 refrigerant and a StayClear condenser.
The unit operates on 115/60/1 power, draws 7.6 amps, and includes a NEMA 5-15P plug with a 9-foot cord.
Standard operating temperature is 0 to -5°F, and the unit is capable of -10°F operation in up to 100°F ambient.
It includes a top-mounted non-electric condensate evaporator.
Standard warranty is 6 years parts and labor plus 7 years on the compressor for self-contained models.
