Traulsen Spec-Line RHT226WPUT-FHG Two-Section Pass-Through Glass-Door Reach-In Refrigerator, Stainless Steel, Top-Mounted Self-Contained

SKU: RHT226WPUT-FHG
$36,289.44
Free Shipping

Want to speak to an expert?

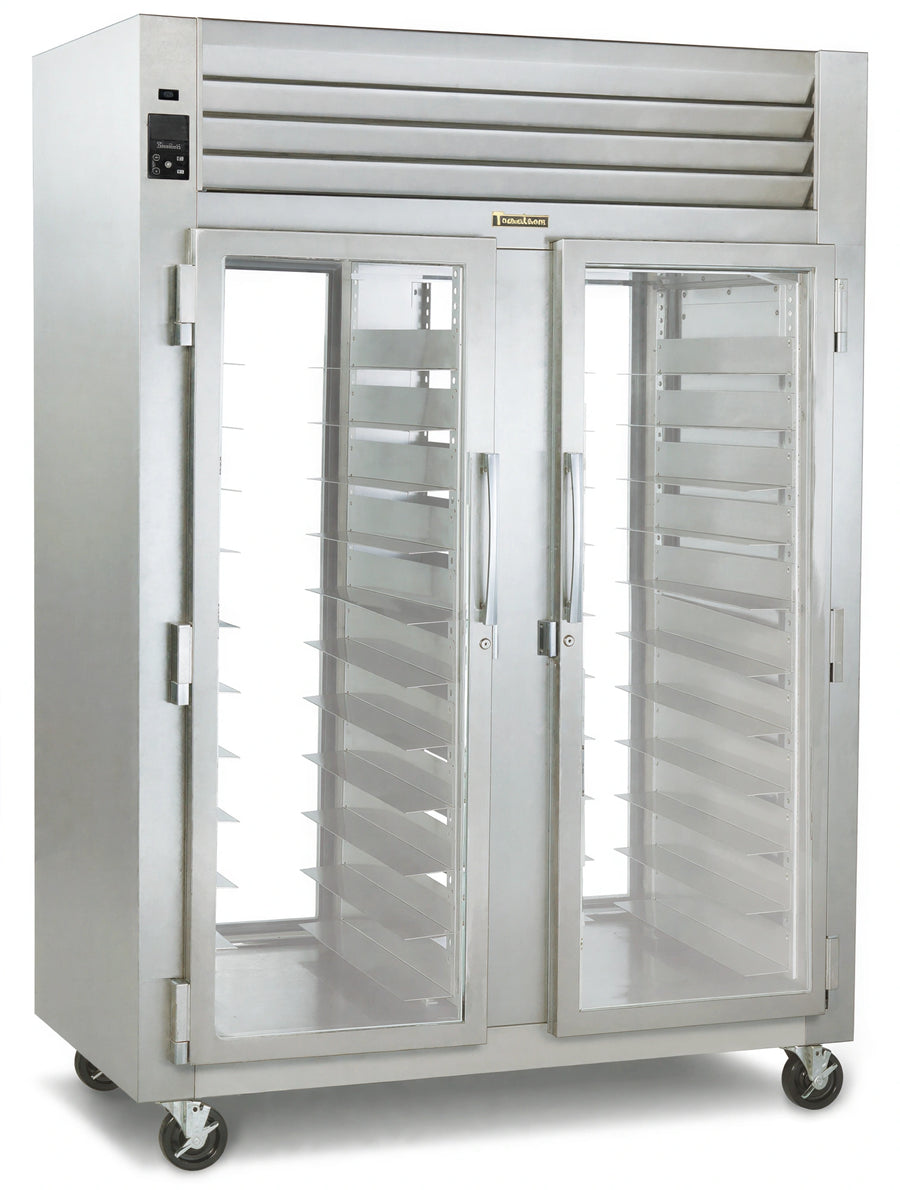

The Traulsen Spec-Line RHT226WPUT-FHG is a two-section pass-through refrigerator with full-height glass doors, stainless steel interior and exterior, and top-mounted self-contained refrigeration.

It provides 44.3 cu. ft. of net capacity with six factory-installed adjustable coated wire shelves, three per section. Smart Control™ with an LED display, interior LED lighting, R-290 refrigerant, and 115 V electrical service are included.

  • Full-height glass doors with locks and self-closing, stay-open hinges
  • Six adjustable coated wire shelves, three per section
  • Six-inch adjustable stainless steel legs

Overall Dimensions:

58.0"W x 31.94"D x 83.25"H

Product Weight:

740.0 lb

Pass-through configuration

Two-section cabinet with full-height glass doors in a pass-through configuration.

Stainless steel construction

The R-Series has a stainless steel interior and stainless steel exterior.

Self-contained refrigeration

Top-mounted, balanced self-contained refrigeration uses R-290 refrigerant and a StayClear™ condenser.

Smart Control™

Microprocessor controls include an LED display and visual alarms for events such as power outages and prolonged door openings.

Adjustable shelving

Six factory-installed, pin-mounted coated wire shelves are provided, with three full-width shelves per section.

Interior LED lighting

Interior LED lighting is activated by an exterior switch.

Self-closing glass doors

The full-height glass doors have locks and self-closing cam-lift hinges with a stay-open feature.

Adjustable stainless steel legs

A set of four 6 in. adjustable stainless steel legs is included.

Net Capacity 44.3 cu. ft.
Number of Sections 2
Door Type Full-height glass
Door Style Wide hinged/swing
Door Locks Removable plug cylinder locks
Refrigeration Self-contained, top-mounted
Refrigerant R-290
Condenser StayClear™ finless condenser
Compressor Horsepower 1/2 HP
Compressor Type Air-cooled hermetic variable speed compressor
Operating Temperature 34–38°F
Shelves 6 adjustable coated wire shelves, 3 per section
Interior Finish Stainless steel
Exterior Finish Stainless steel
Control Smart Control™ with LED display
Electrical Supply 115 V, 60 Hz, 1 phase
Current 8 A
Plug NEMA 5-15P
Refrigeration Capacity 5120 BTU/hr at 90°F ambient and 20°F evaporator
Energy Efficiency ENERGY STAR®

Frequently Asked Questions

The unit is 58.0 in. wide, 31.94 in. deep, and 83.25 in. high, with a listed weight of 740.0 lb.
Six adjustable coated wire shelves are included, with three shelves per section.
It uses 115 V, 60 Hz, single-phase power, draws 8 amps, and is equipped with a NEMA 5-15P plug.
Yes. The refrigeration system is self-contained and top-mounted.
The unit uses R-290 refrigerant.
The listed operating temperature is 34–38°F.
The standard warranty provides six years of parts and labor coverage and seven years of compressor coverage for self-contained models.
