Traulsen Spec-Line RDT232WUT-FHS Two-Section Dual-Temperature Reach-In Refrigerator/Freezer, Stainless Steel, Self-Contained

SKU: RDT232WUT-FHS
$33,297.66
Free Shipping
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

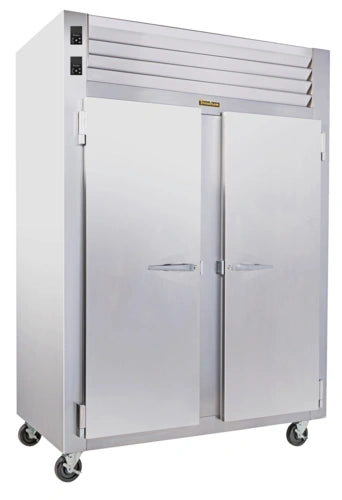

The Traulsen RDT232WUT-FHS Spec-Line R Series cabinet combines a refrigerator section and freezer section in one self-contained, standard-depth reach-in unit. The refrigerator is on the left and the freezer is on the right.

  • Stainless steel exterior and interior
  • Two wide, full-height solid locking doors with EZ-Clean gaskets
  • Six adjustable coated wire shelves, with three shelves per section
  • Top-mounted R-290 refrigeration with Smart Control and LED display
  • Automatically activated interior LED lighting
  • Four adjustable 6-inch stainless steel legs

The cabinet provides 46.86 cubic feet of total net capacity, divided evenly between the refrigerator and freezer sections.

Overall Dimensions:

58.0"W x 35.0"D x 83.25"H

Product Weight:

845.0 lb

Dual-temperature storage

The two sections provide separate refrigerator and freezer compartments, with the refrigerator on the left and freezer on the right.

Full-height solid doors

Two wide full-height solid doors include locks, self-closing operation, a stay-open feature, and gasket-protecting door liners.

Stainless steel construction

The R Series cabinet has a stainless steel exterior and interior.

Adjustable shelving

Six coated wire shelves are included, with three adjustable shelves in each section.

Self-contained R-290 refrigeration

The top-mounted, self-contained refrigeration system uses R-290 refrigerant and includes a variable-speed compressor and non-electric condensate evaporator.

Smart Control

Microprocessor-based Smart Control provides an LED display, visual alarms, and temperature control functions.

Interior lighting

Interior LED lights activate automatically.

Adjustable stainless steel legs

A set of four adjustable 6-inch stainless steel legs is included.

Related Searches

Best Sellers Combination Refrigerator-Freezers Commercial Refrigeration New Arrivals Reach-In Cabinet Equipment Reach-in Refrigerators Refrigeration & Ice Refrigerators & Freezers Restaurant Equipment Traulsen
Product Type Two-section dual-temperature reach-in refrigerator/freezer
Refrigerator Location Left section
Freezer Location Right section
Net Capacity 46.86 cu. ft. total; 23.43 cu. ft. refrigerator and 23.43 cu. ft. freezer
Exterior Finish Stainless steel
Interior Finish Stainless steel
Door Type Two full-height solid hinged doors
Door Features Locking, self-closing, stay-open feature, EZ-Clean gaskets
Shelves 6 adjustable coated wire shelves; 3 per section
Lighting Automatically activated interior LED lighting
Controls Smart Control microprocessor controls with LED display
Thermometer Exterior digital
Refrigeration Type Top-mounted self-contained refrigeration
Refrigerant R-290
Compressor HP 1/2 HP refrigerator; 1/2 HP freezer
Cooling Output 2,800 BTU/hr refrigerator; 1,750 BTU/hr freezer
Refrigerator Temperature Range 34–38°F
Freezer Temperature Range -5 to 0°F
Compressor Location Top mounted
Electrical 115/60/1, 12.6 amps
Plug NEMA 5-20P
Legs Four adjustable 6-inch stainless steel legs
Shelf Load Limit 225 lb per shelf
Depth Class Standard depth

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

U.S. domestic warranty includes six years of parts and labor coverage, seven years of compressor coverage, and a lifetime warranty for cam-lift hinge and workflow handle housings.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Quick start guide PDF Download PDF Quick start guide PDF Download PDF Accessory kits PDF Download PDF Shipping dimensions & product weights PDF Download PDF Owner's manual PDF Download PDF Owner's manual PDF Download PDF Exterior laminates PDF Download PDF Accessory kits PDF Download PDF Tray racks PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cabinet has a refrigerator section on the left and a freezer section on the right.
The refrigerator section operates at 34–38°F, and the freezer section operates at -5 to 0°F.
Six adjustable coated wire shelves are included, with three shelves per section.
The unit is specified for 115/60/1 electrical service at 12.6 amps and is equipped with a NEMA 5-20P plug.
The self-contained refrigeration system uses R-290 refrigerant.
Yes. The two full-height solid doors are equipped with locks.
The U.S. domestic warranty provides six years of parts and labor coverage, seven years for the compressor, and lifetime coverage for cam-lift hinge and workflow handle housings, subject to the warranty terms.
