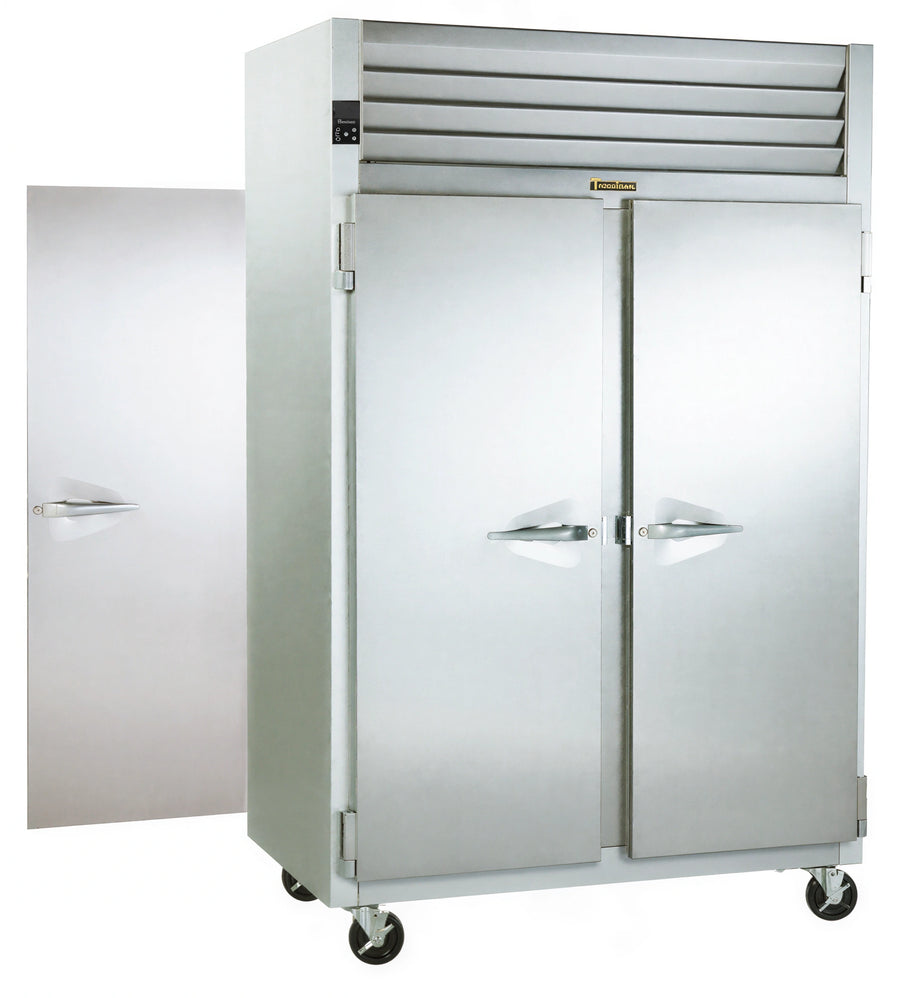

Traulsen Spec-Line G20012P Two-Section Pass-Thru Solid-Door Reach-In Refrigerator, Top-Mounted Self-Contained Refrigeration
The Traulsen G20012P is a two-section pass-thru refrigerator with full-height solid doors on both sides. Its top-mounted, self-contained refrigeration system uses low-GWP R-290 refrigerant and has a standard operating temperature of 34° to 38°F.
- 48.87 cu. ft. net capacity for the full-height door model
- Three factory-installed epoxy-coated wire shelves per section
- Microprocessor control with three-digit LED temperature display
- Stainless steel front and doors with anodized aluminum sides and interior
- LED interior lighting and 6-inch high locking casters
- 115/60/1 electrical connection with NEMA 5-15P plug
Overall Dimensions:
52.13"W x 38.13"D x 83.44"HProduct Weight:
550.0 lbPass-thru configuration
Two-section cabinet with full-height solid doors on the control and non-control sides.
Door hinging
Control side uses left/right hinging; the non-control side uses left/left hinging.
Self-contained refrigeration
Top-mounted refrigeration system with low-GWP R-290 refrigerant and a standard 34° to 38°F operating range.
Microprocessor control
Water-resistant microprocessor control with a three-digit LED display and Fahrenheit or Celsius temperature scale capability.
Factory-installed shelving
Three full-width epoxy-coated wire shelves per section are installed at the factory on shelf pins.
Interior lighting
LED interior lights are automatically activated by concealed door-hinge switches.
Cabinet construction
Stainless steel front and doors with anodized aluminum sides and interior; the cabinet top and bottom are galvanized steel.
Caster-mounted cabinet
Includes four 6-inch high locking casters.
Front-facing condenser
The refrigeration system includes an easy-to-maintain front-facing condenser coil.
Certifications & Compliance
Warranty & Protection
Six-year parts and labor warranty; seven-year compressor warranty for self-contained models.
