Traulsen

Centerline CLBM-23F-HS-R One-Section 19.89 Cu. Ft. Half-Solid Door Reach-In Freezer

SKU: CLBM-23F-HS-R
$7,295.16
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Frozen Food Storage & Dispensers New Arrivals Reach-in Freezers Reach-In Refrigerators & Freezers Reach-In Refrigerators & Freezers Refrigeration, Freezing & Ice Restaurant Equipment Traulsen

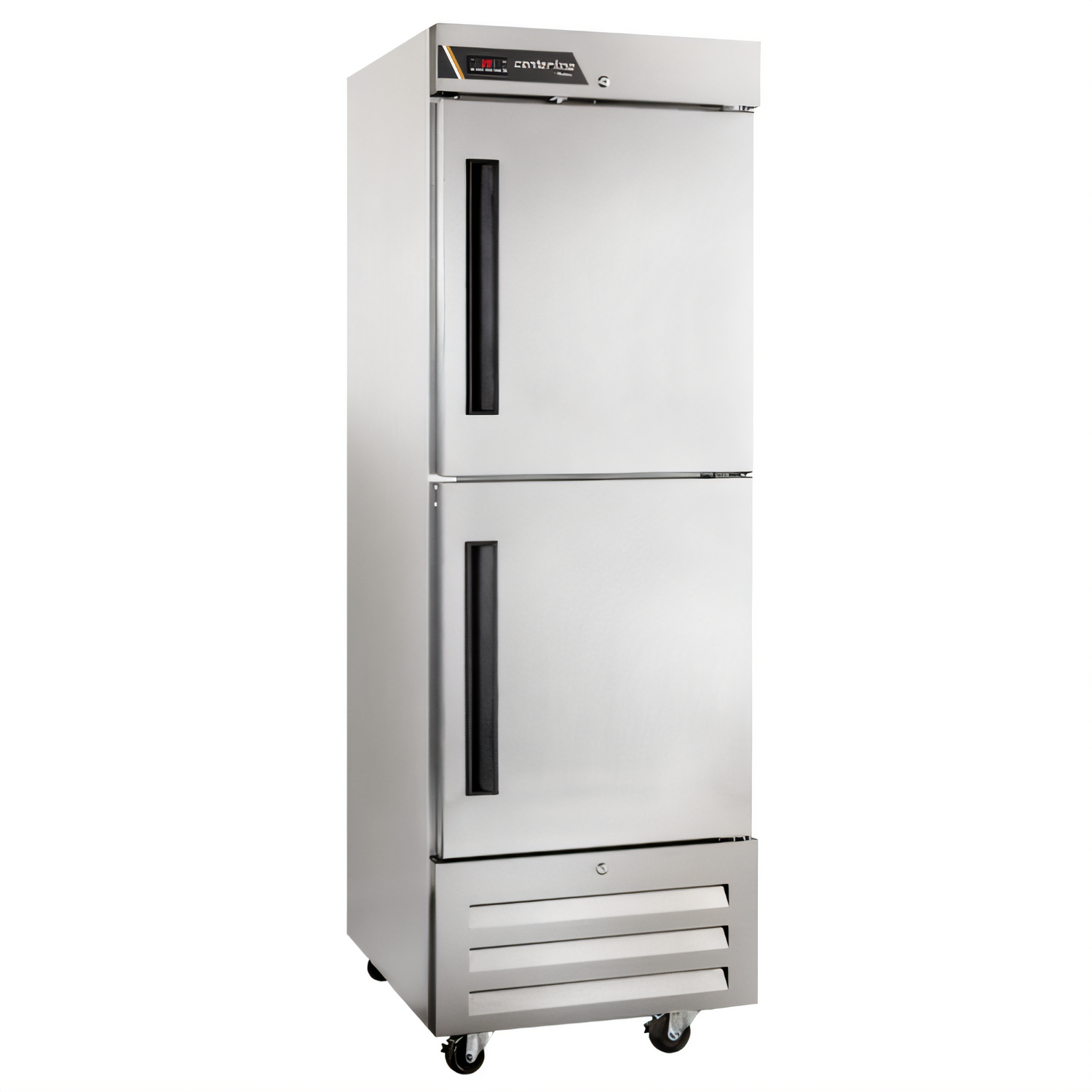

Centerline CLBM-23F-HS-R One-Section 19.89 Cu. Ft. Half-Solid Door Reach-In Freezer

Self-Contained, Bottom Mount, R-290 Hydrocarbon Refrigerant

This Centerline by Traulsen reach-in freezer delivers reliable, energy-efficient frozen storage with durable construction and user-friendly features, perfect for budget-conscious commercial kitchens.

  • 19.89 cu. ft. capacity for ample frozen storage.
  • Eco-friendly R-290 Hydrocarbon refrigerant with bottom-mounted system for easy maintenance.
  • Durable stainless steel exterior and anodized aluminum interior for long-lasting performance.
  • Features two field-reversible half-height solid doors with a convenient stay-open feature.
  • Electronic control with LED display provides accurate temperature monitoring and adjustment.
  • Equipped with three adjustable, heavy-duty epoxy-coated shelves per section.
  • Backed by an extensive 6-year parts and labor, plus 7-year compressor warranty.
  • ENERGY STAR® certified for reduced energy consumption and operational costs.

Overall Dimensions:

27.0"W x 33.5"D x 78.0"H

Product Weight:

350.0 lb

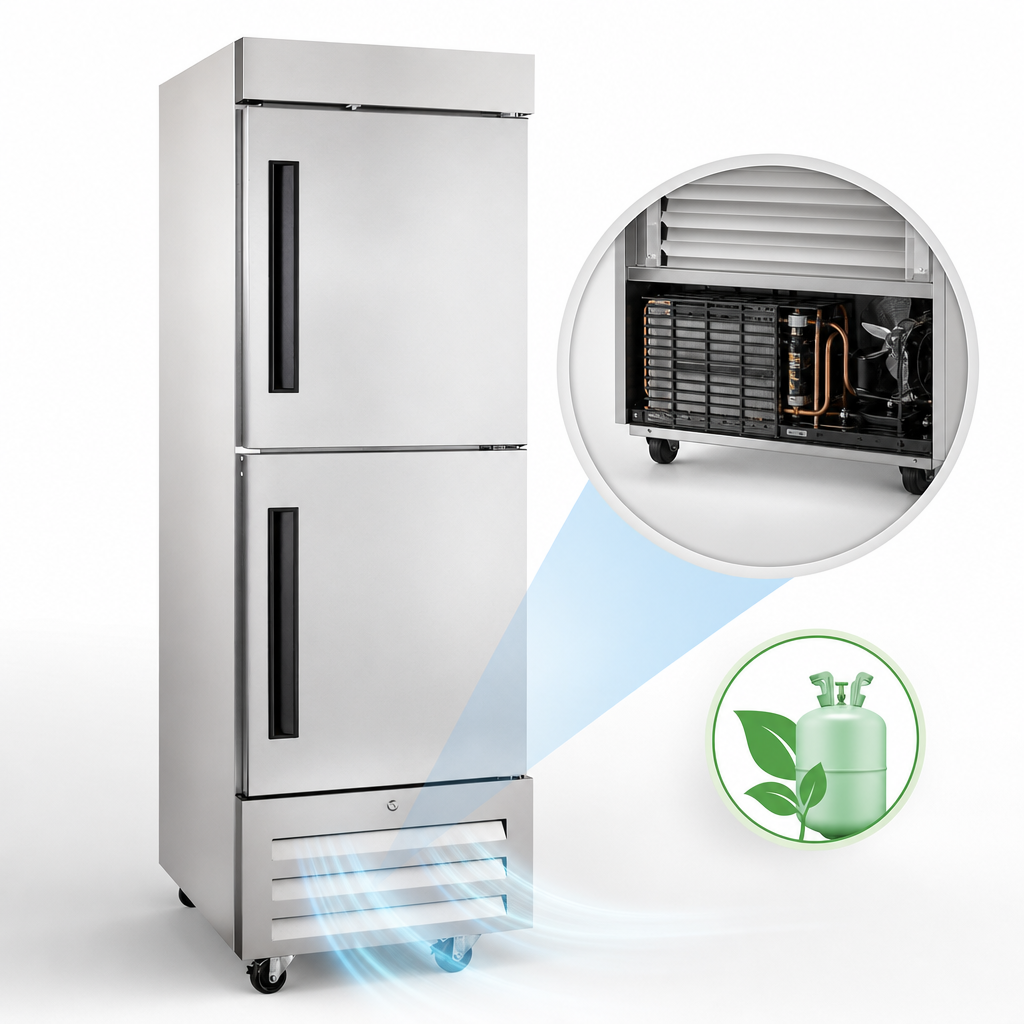

Bottom-Mounted Refrigeration System

Utilizes R-290 Hydrocarbon refrigerant, positioned at the bottom for improved cooling efficiency and easy access for maintenance and cleaning of the front-facing condenser.

Bottom-Mounted Refrigeration System

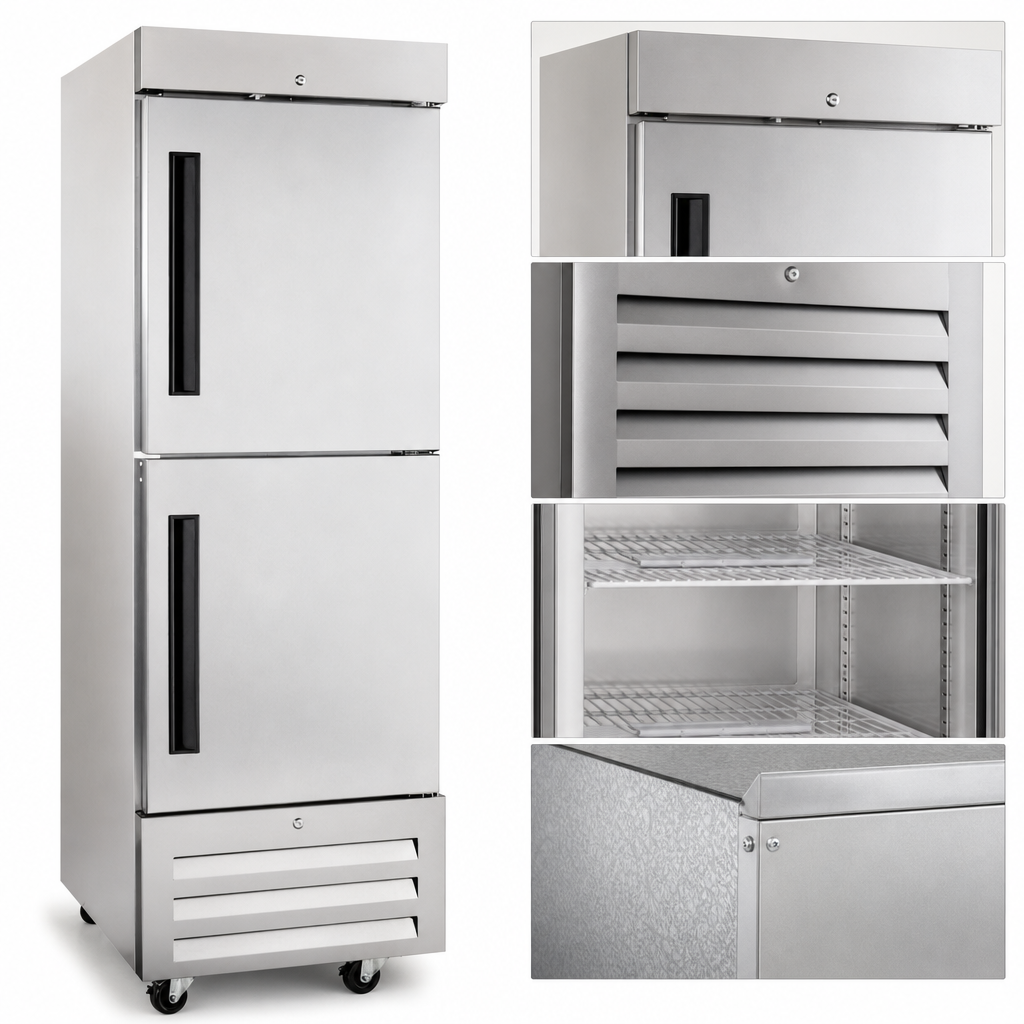

Durable Construction

Cabinet sides, louver assembly, and doors are constructed of stainless steel. The cabinet front and interior are made of anodized aluminum, with the exterior top, back, and bottom of galvanized steel for robust commercial use.

Durable Construction

Half-Height Solid Doors

Two self-closing, positive-seal half-height solid doors with a stay-open feature at 110° for convenient loading and unloading. Doors are also field reversible for flexible kitchen layouts.

Electronic Control with LED Display

Provides accurate temperature control and easy monitoring with a clear 3-Digit LED display, capable of showing temperatures in Fahrenheit or Celsius.

Adjustable Epoxy Coated Shelves

Three heavy-duty, epoxy-coated wire shelves per section, adjustable to accommodate various product sizes. Each shelf has a recommended load limit of 150 lbs.

Thermal Expansion Valve (TXV) Metering Device

Ensures precise and efficient refrigerant flow for optimal cooling performance and temperature consistency.

Gasket-Protecting Retainer

Extends gasket life and ensures a tight seal to maintain consistent internal temperatures, contributing to energy efficiency.

High-Density Insulation

Non-CFC foamed-in-place polyurethane insulation with an average thickness of 2-3/8" for superior temperature retention and structural rigidity.

4" Casters with Locks

Pre-installed 4" high casters make the unit easy to move for cleaning or repositioning, with locks on the front casters for stability during operation.

Storage on Top of Cabinet

The flat top surface of the cabinet provides additional space for storing lightweight items or supplies, maximizing kitchen utility.

Type Reach-In Freezer
Style One-Section
Installation Type Floor Model (With Casters)
Capacity 19.89 Cu. Ft.
Compartments 1
Pan Capacity 3 Full-Size Pans (Approximate)
Shelves 3
Interior Finish Anodized Aluminum
Exterior Finish Stainless Steel (Front, Doors, Sides, Louver), Galvanized Steel (Top, Back, Bottom)
Material Stainless Steel, Anodized Aluminum, Galvanized Steel
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 7.0 Amps
Plug Type NEMA 5-15P
Cord Length 9 Feet
Refrigerant Type R-290 Hydrocarbon
Refrigeration Type Self-Contained, Air-Cooled
BTU 1750 BTU/HR
Compressor HP 1/2 HP
Temperature Range -1°F to 2°F
Controls Electronic with LED Display
Shipping Width 37 Inches
Shipping Depth 40 Inches
Shipping Height 85 Inches
Shipping Weight 350 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of ETL Listed
ETL Listed

Warranty & Protection

6 Year Parts & Labor, 7 Year Compressor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The CLBM-23F-HS-R freezer uses R-290 Hydrocarbon refrigerant, an environmentally friendly option with a low Global Warming Potential (GWP).
Yes, the half-height solid doors of this model are field reversible, allowing you to change the door swing direction to best suit your kitchen layout.
The freezer comes with a 6-year warranty covering both parts and labor, and an extended 7-year warranty on the compressor parts.
The freezer measures 27 inches in width, 33.5 inches in depth, and 78 inches in height without casters. With the standard 4-inch casters, the total height is 82 inches.
The interior of the CLBM-23F-HS-R freezer is constructed of anodized aluminum, known for its corrosion resistance and durability.
Yes, the CLBM-23F-HS-R is ENERGY STAR® listed, indicating it meets strict energy efficiency guidelines set by the EPA.
