MasterRange Five-Chamber Gas Wok Range with Flue and Swing Faucets

Standard Finish, Black Epoxy Sides, Knee Lever Controls

Built for high-volume wok service, this five-chamber gas range combines refractory brick-lined chambers, flue ventilation, and convenient swing faucets for a faster, cooler cook line.

  • Five cast iron, brick-lined chambers are built for heavy-duty wok service.
  • Flue-equipped design helps vent heat away from the cook line for better comfort.
  • Five swing faucets mounted on a 25-inch backsplash simplify water access.
  • Knee "L" lever gas control provides simple, hands-on operation.
  • Black epoxy-coated sides give the range a durable commercial finish.
  • Includes a strainer basket for added prep and cleanup convenience.

Overall Dimensions:

138.0"W x 47.0"D x 71.0"H

Product Weight:

1800.0 lb

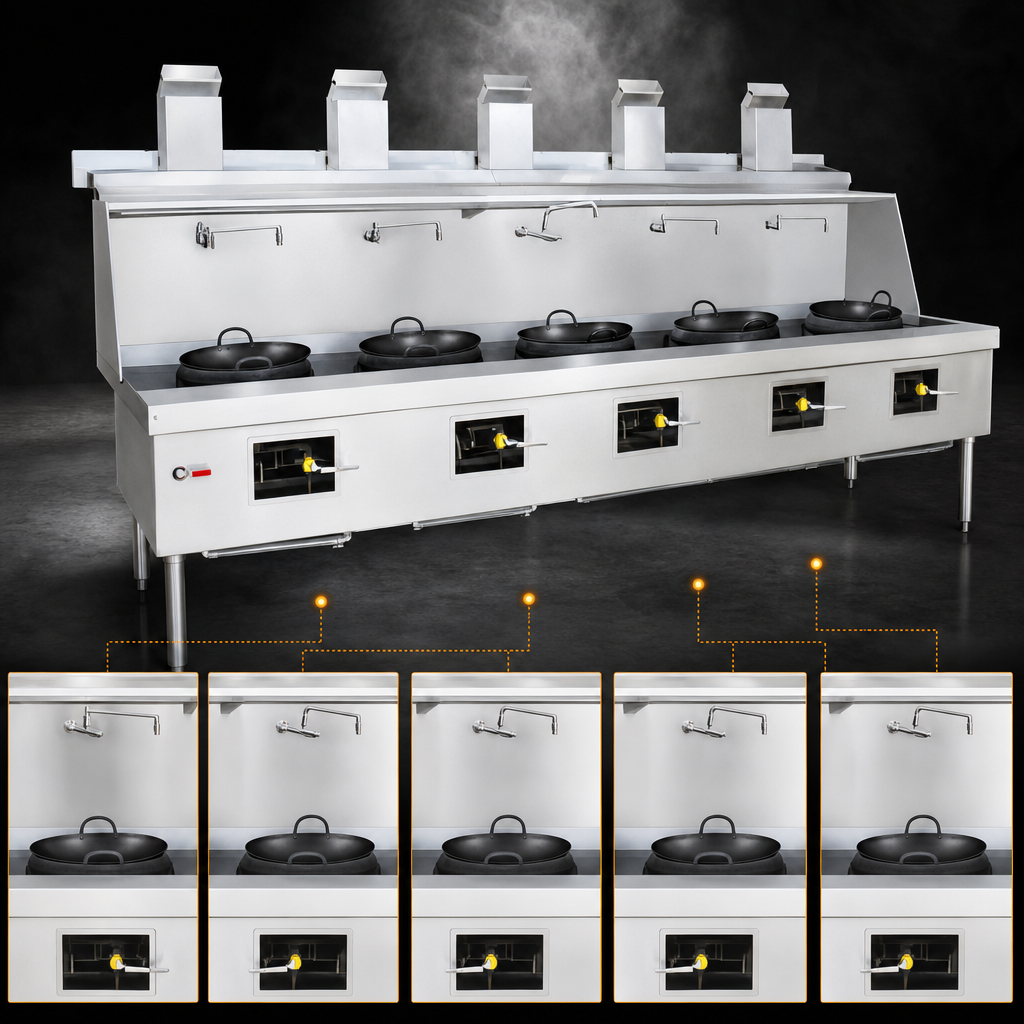

Five-Chamber Layout

Provides five cooking chambers for high-volume wok service.

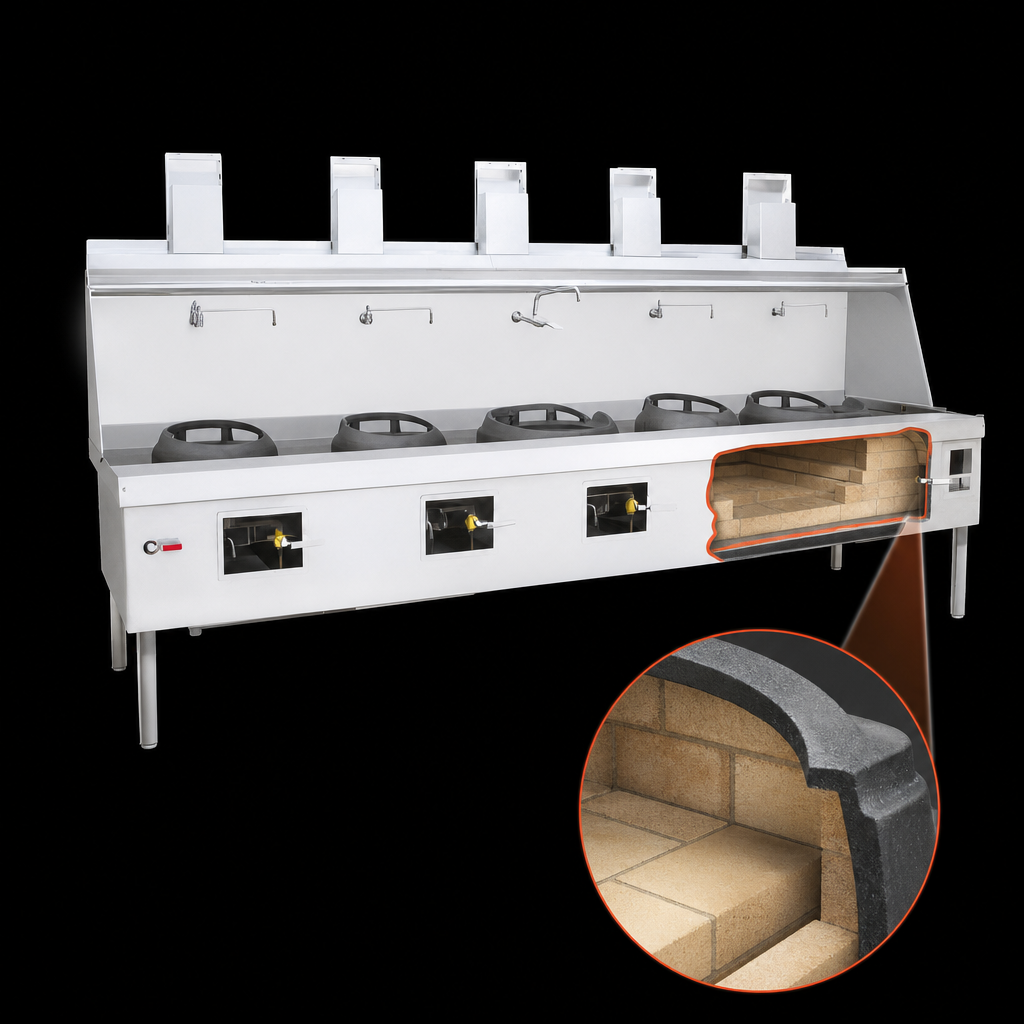

Brick-Lined Chambers

Cast iron chambers are brick lined for heat retention and long service life.

Flue Riser Venting

Helps move heat away from the cook line for better chef comfort.

Five Swing Faucets

Mounted on the 25-inch backsplash for easy water access during prep and cleanup.

Knee "L" Lever Gas Handle

Knee-actuated control simplifies operation at the station.

Black Epoxy-Coated Sides

Durable exterior finish helps protect the range body and gives a clean commercial appearance.

Strainer Basket

Included to support sink drainage and cleanup.

Type Wok Range
Style Five Chamber
Installation Type Floor Model
Controls Knee Lever
Compartments 5
Interior Finish Refractory Brick
Color Black
Finish Epoxy Coated
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch NPT
Drain Connection Size 1 1/2 Inch NPT
Gas Connection Size 1 1/4 Inch NPT
Shipping Width 138 Inches
Shipping Depth 47 Inches
Shipping Height 71 Inches
Shipping Weight 1800 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified

Frequently Asked Questions

It has five cast iron, brick-lined chambers.
Yes. This MasterRange model is the flue version of the five-chamber range.
The series can be ordered for natural gas or propane.
It uses a 1/2-inch NPT water connection and a 1 1/2-inch NPT drain connection.
Yes. The MasterRange line allows chamber and front access sink placement to be configured to customer requirements.
