Topos Mondial T-180 Removable Bowl Spiral Mixer, 397 lb Dough Capacity, 281 Qt
- Product type
- Removable-bowl spiral dough mixer
- Final dough capacity
- 397 lb (180 kg)
- Bowl volume
- 281 qt
- Bowl material
- Stainless steel
- Bowl inside diameter
- 35 in
- Bowl inside depth
- 19 in
Specifications
Description

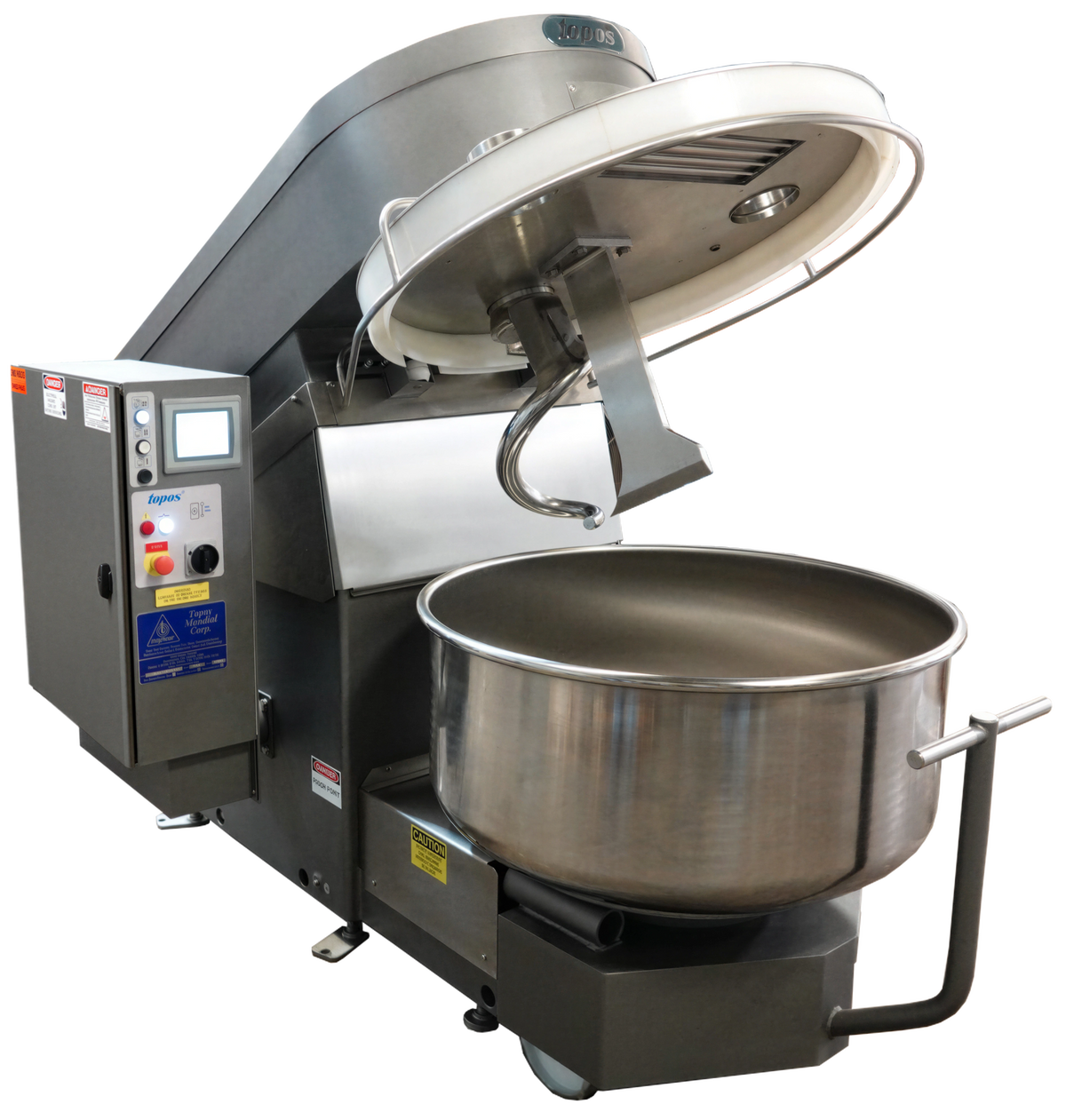

The Topos Mondial T-180 is a removable-bowl spiral dough mixer designed for heavy production. It provides a 397 lb final dough capacity in a 281 qt stainless steel bowl mounted on a mobile base, with one bowl included.
Two-speed spiral agitation, programmable Allen-Bradley PLC controls with PanelView touch display, and forward and reverse powered bowl drive support recipe-based or manual mixing.
- All product zones are solid stainless steel.
- The bowl cover includes an inspection grill, two dry ingredient openings, two liquid ingredient openings, and a safety bar.
- A hydraulic bowl lock, twin roller bowl supports, lift-off covers with interlock, and six stainless steel leveling feet support operation and cleaning.
Overall Dimensions:
48.0"W x 71.0"D x 52.0"HProduct Weight:
2822.0 lbRemovable bowl
Includes one 281 qt stainless steel bowl mounted on a mobile base.
Two-speed spiral agitation
The stainless steel spiral agitator operates at 110/220 rpm.
Programmable controls
An Allen-Bradley PLC with PanelView touch display supports stored recipes or manual mixing.
Powered bowl drive
The bowl drive operates in forward and reverse and includes twin roller bowl supports.
Stainless steel construction
All product zones are solid stainless steel.
Bowl cover
The stainless steel bowl cover includes an inspection grill, two dry ingredient openings, two liquid ingredient openings, and a safety bar.
Hydraulic bowl lock
A hydraulic bowl lock secures the removable bowl.
Cleaning and leveling features
Lift-off covers with interlock and six stainless steel leveling feet are included.
