Key specifications
- Phase
- 1-Phase and 3-Phase
- Dimensions
- 48.0"W × 27.81"D × 15.53"H
- Type
- Griddle
- Installation Type
- Countertop
- Material
- Stainless Steel
- Country of Origin
- USA
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

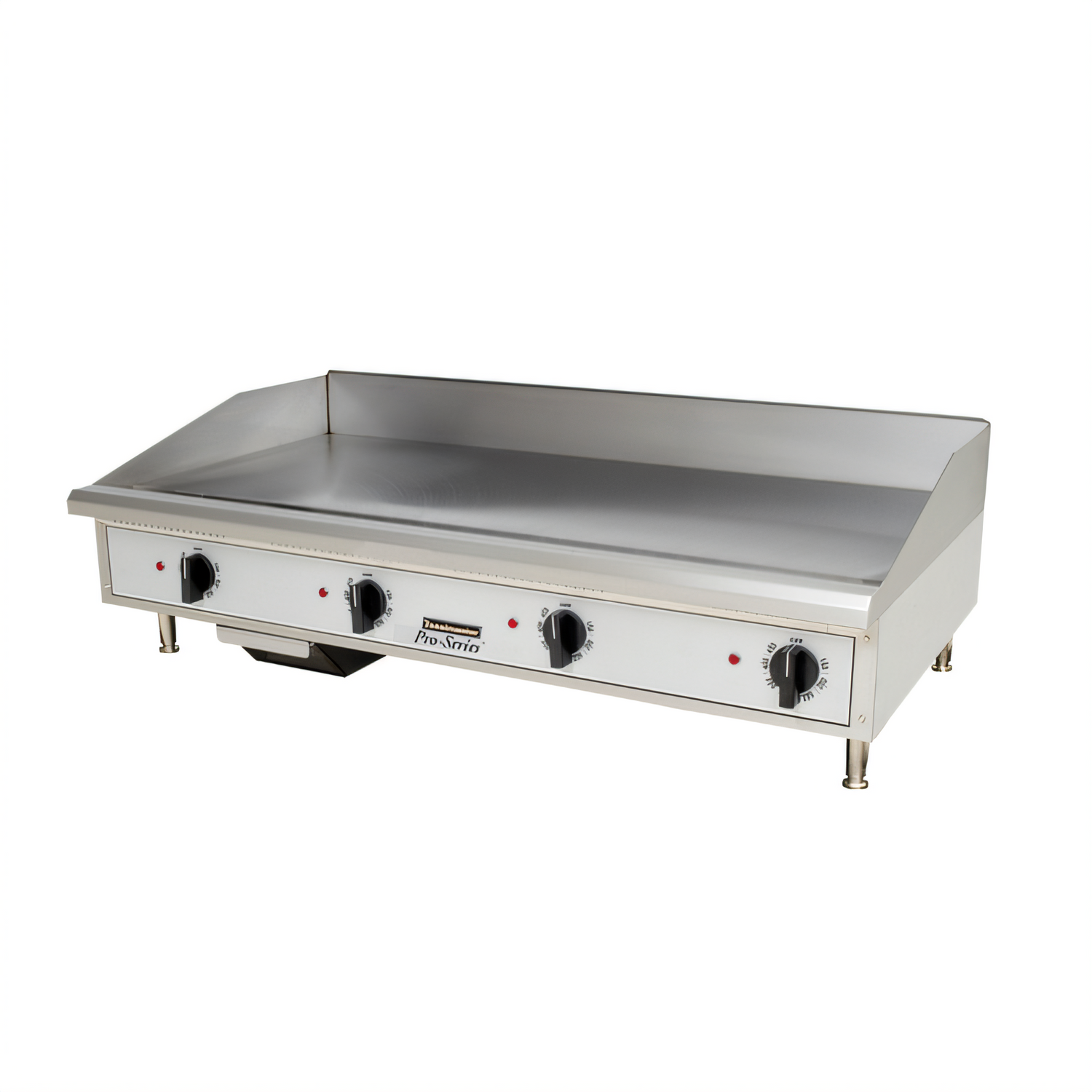

The Toastmaster TMGE48 is an electric countertop griddle with a 48-inch-wide by 21-inch-deep polished steel cooking surface.
Four steel radiants and independent thermostatic controls serve the griddle in 12-inch sections, with a temperature range of 150°F to 450°F.
- 3/4-inch-thick polished steel plate
- Removable drip tray with a 3-1/4-inch front grease trough and chute
- Side and rear splash guards
- 4-inch nickel-plated steel legs
- Stainless steel front panel, bullnose, and drip tray
The griddle is rated for 208/240-volt service at 12/16 kW and is designed for hardwired electrical connection. It is made in the USA and is cULus and UL EPH Classified.
Overall Dimensions:
48.0"W x 27.81"D x 15.53"HProduct Weight:

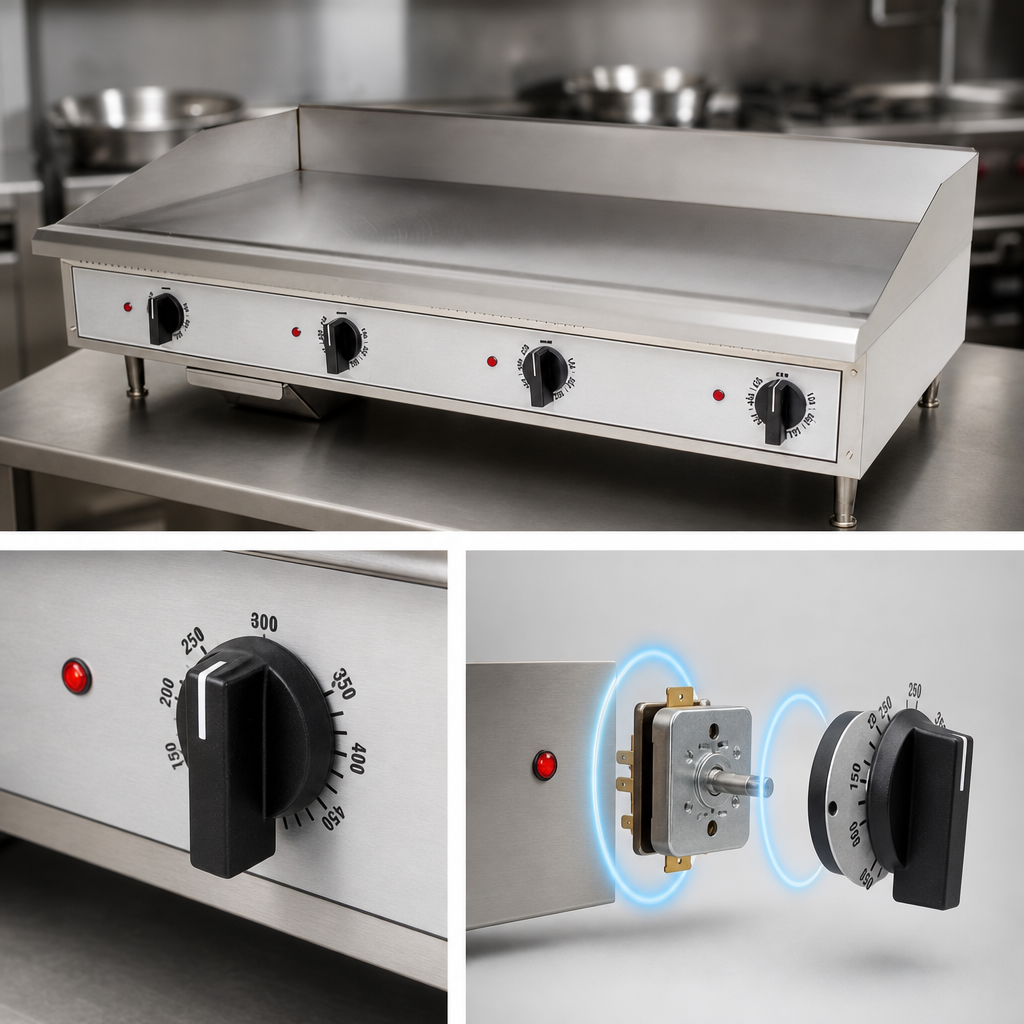

315.0 lbIndependent thermostatic controls

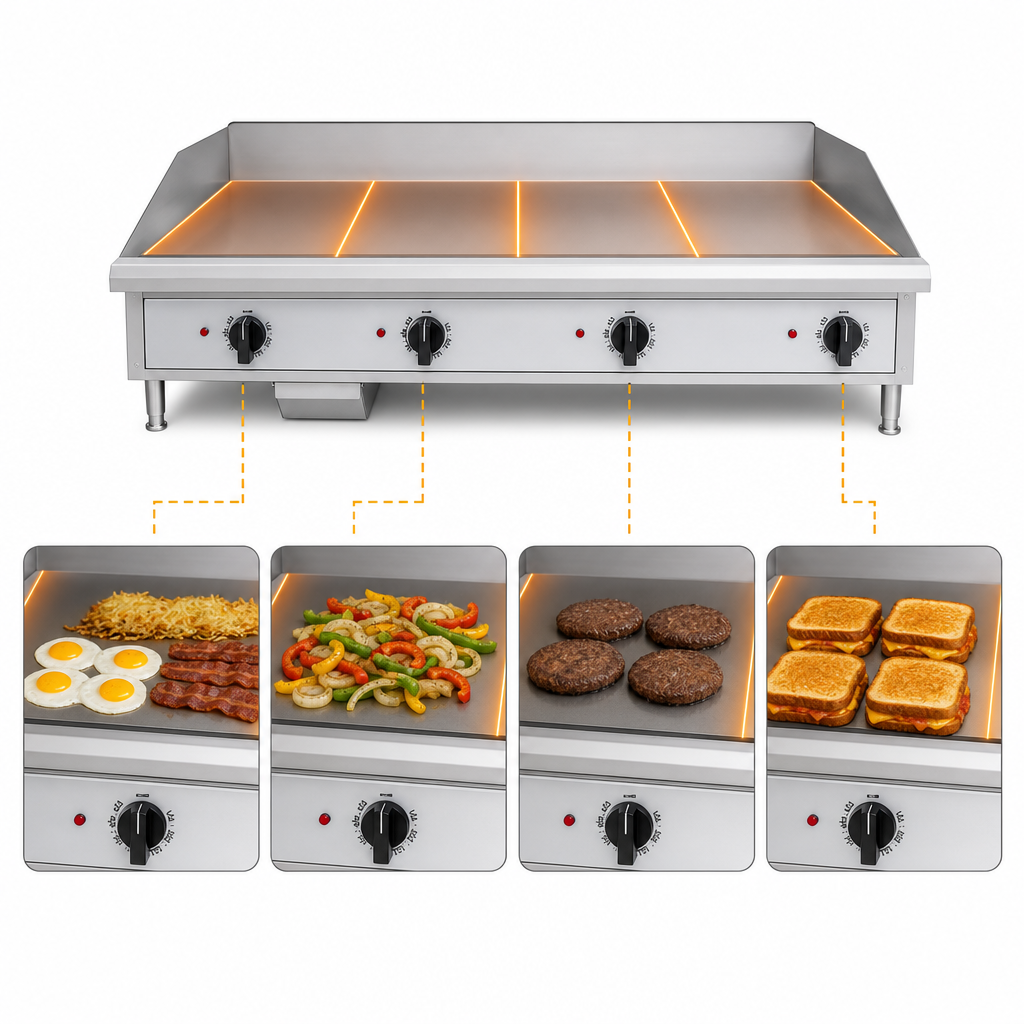

Each 12-inch section has its own thermostat; the TMGE48 has four sections.
Polished steel cooking plate
The cooking surface is a 3/4-inch-thick polished steel plate.
Grease management
A removable drip tray works with the 3-1/4-inch front grease trough and chute.
Splash guards
Side and rear splash guards help contain cooking residue.
Steel radiants
The griddle has four steel radiants.
Hardwire-ready connection
The unit is supplied ready for hardwiring and operates on 208/240-volt service.
