Taylor Company (Middleby)

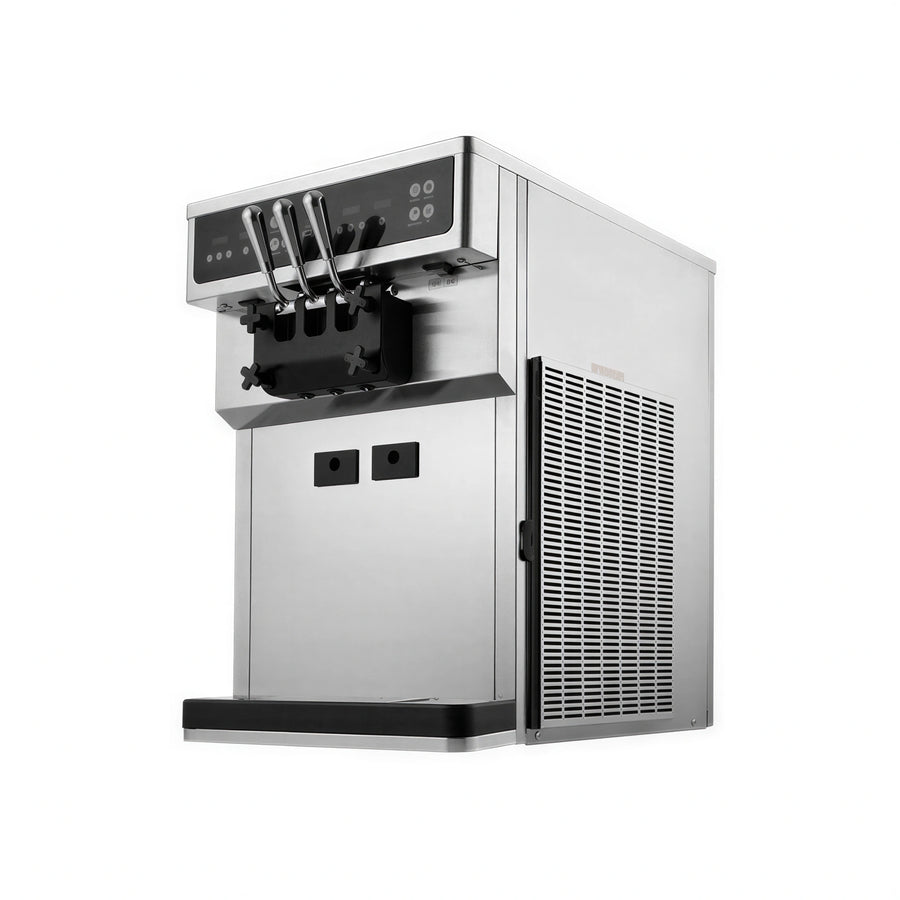

Taylor Company (Middleby) ISI-163TT Countertop Soft Serve Ice Cream Machine, Two Flavors, Single Twist, Air-Cooled, Touch Controls

SKU: ISI-163TT
$22,996.80
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Cream Makers Frozen Dessert Equipment Ice Cream & Gelato Machine Equipment New Arrivals Refrigeration & Ice Restaurant Equipment Soft Serve Ice Cream Machines Soft-Serve & Frozen-Yogurt Machines Taylor Company (Middleby)

The ISI-163TT is a countertop, air-cooled soft serve ice cream machine with two flavors and one twist.

  • Two 1.5-gallon mix hoppers and two 0.43-gallon freezing cylinders
  • Touch control panel, agitator, and direct motor drive
  • Mix low and out sensors
  • 208–230 V, 60 Hz, single-phase electrical configuration

Overall Dimensions:

20.0"W x 33.0"D x 31.5"H

Product Weight:

430.0 lb

Two flavors plus one twist

The machine is configured for two flavors and one twist.

Air-cooled operation

The ISI-163TT uses air cooling.

Touch control panel

Controls are provided through a touch control panel.

Direct motor drive

The machine uses direct motor drive.

Agitator

An agitator is included in the machine configuration.

Mix low and out sensors

Sensors monitor mix low and out conditions.

Two mix hoppers

The machine has two 1.5-gallon mix hoppers.

Two freezing cylinders

The machine has two 0.43-gallon freezing cylinders.

Installation Countertop
Flavor configuration 2 flavors + 1 twist
Cooling Air-cooled
Electrical 208–230 V / 60 Hz / 1 phase
Hopper quantity 2
Hopper capacity (each) 1.5 gal. (5.9 qt.)
Freezing cylinder quantity 2
Freezing cylinder capacity (each) 0.43 gal. (1.7 qt.)
Controls Touch control panel
Drive Direct motor drive
Agitator Yes
Sensors Mix low and out sensors
Power consumption 3,120 W
Maximum production 4.5 gal./h
Consecutive dispensing 7–8 cups / 3.0 oz.
Maximum amps 16 A
Minimum circuit breaker 20 A
Cylinder compressor 0.85 HP x 2 (R404A)
Hopper compressor 0.35 HP x 1 (R134A)
Mix pump Gravity-fed
Heat treatment No

Documents

PDF Middleby financial flyer PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Catalog PDF Download PDF Catalog PDF Download

Frequently Asked Questions

Yes. The ISI-163TT is specified as a countertop machine.
It is configured for two flavors and one twist.
The machine is air-cooled.
It has two 1.5-gallon hoppers and two 0.43-gallon freezing cylinders.
The specifications list 208–230 V, 60 Hz, single-phase electrical service.
The listed dimensions are 20.0 inches wide, 33.0 inches deep, and 31.5 inches high.
