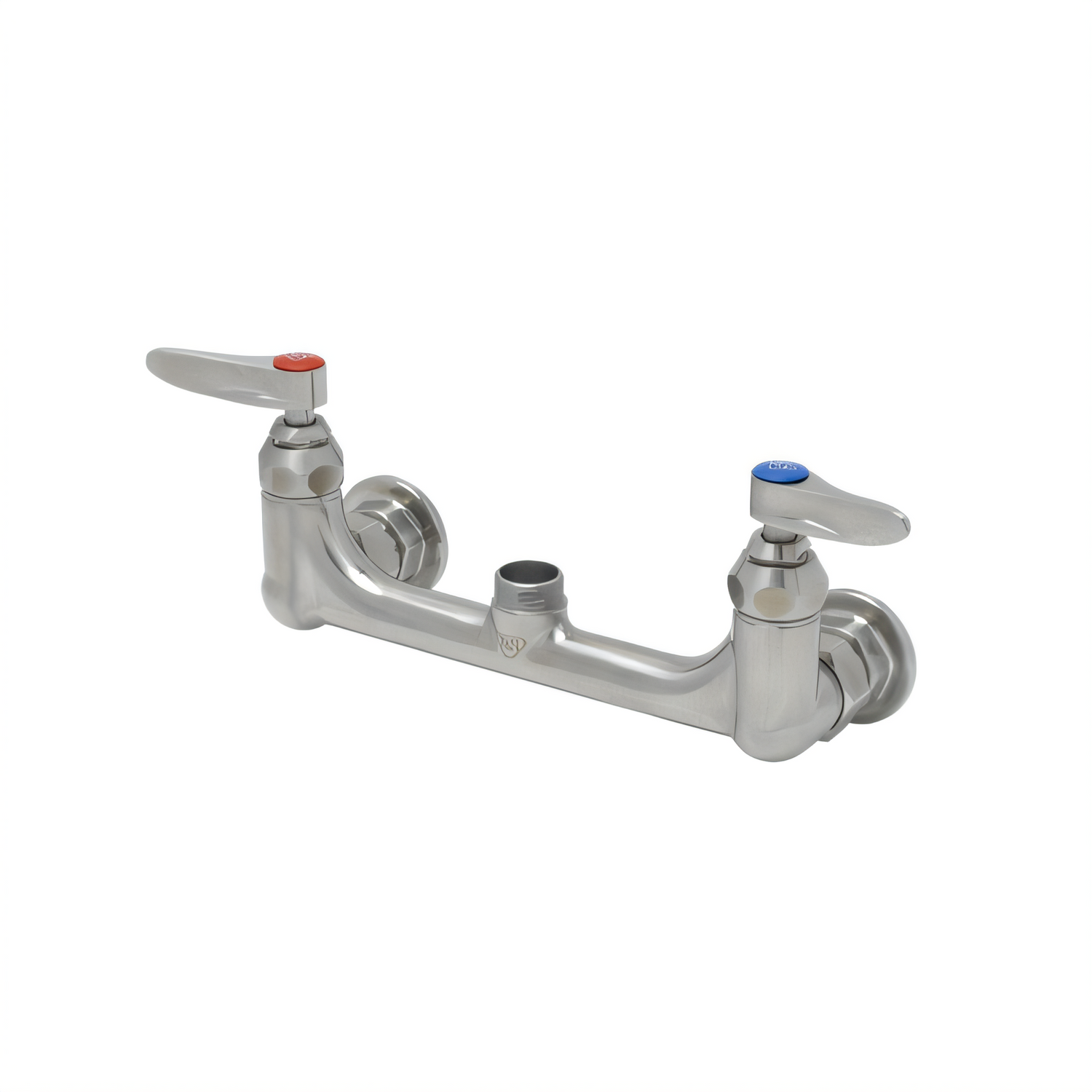

T&S Brass EverSteel 8-Inch Stainless Steel Wall Mount Mixing Faucet with Swivel Outlet, Less Nozzle

SKU: S-0230-LN
$169.05
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Faucets Commercial Faucets & Plumbing Commercial Plumbing Supplies New Arrivals Pre-rinse Faucets Restaurant Equipment Sinks & Handwashing Stations T&S Brass

T&S Brass EverSteel 8-Inch Stainless Steel Wall Mount Mixing Faucet with Swivel Outlet, Less Nozzle

8-Inch Adjustable Centers, 1/2-Inch NPT Female Inlets, Low-Lead

A durable low-lead stainless steel wall-mount mixing faucet with a swivel outlet and quarter-turn cartridges for dependable commercial performance.

  • 8-inch adjustable centers make wall-mount installation more flexible.
  • Swivel outlet accepts standard stainless steel T&S swing nozzles and can be converted to rigid with the included lock washer.
  • Stainless steel quarter-turn Eterna cartridges with spring checks support smooth, reliable operation.
  • Stainless steel lever handles with color-coded indexes make hot and cold identification simple.
  • 1/2-inch NPT female inlets and stainless steel flanges provide a sturdy connection point.
  • Low-lead construction with NSF 61 Section 9, NSF 372, and ADA compliance.

Overall Dimensions:

12.62"W x 2.37"D x 3.68"H

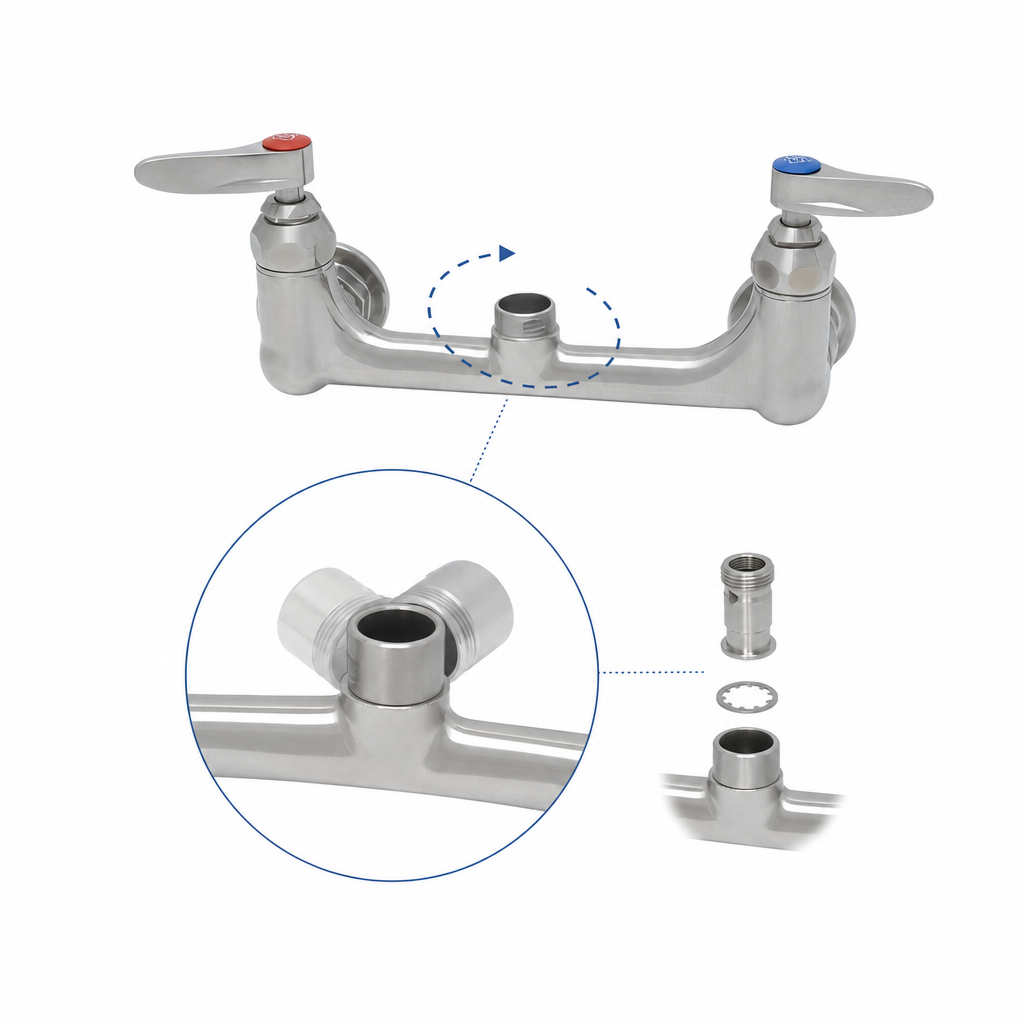

Swivel Outlet

Accepts standard stainless steel T&S swing nozzles and converts to rigid with the included 014200-45 lock washer.

Quarter-Turn Eterna Cartridges

Stainless steel cartridges with spring checks help deliver smooth operation and dependable mixing.

Stainless Steel Lever Handles

Durable lever handles include color-coded indexes for quick hot and cold identification.

Adjustable Centers

8-inch centers are adjustable from 7 3/4 inches to 8 1/4 inches for installation flexibility.

1/2-Inch NPT Female Inlets

Stainless steel flanges with 1/2-inch NPT female inlets provide the water connection.

Low-Lead / ADA Compliance

Meets NSF 372 low lead content requirements, NSF 61 Section 9, and ANSI A117.1 ADA requirements.

Type Mixing Faucet
Style Swivel Outlet
Mounting Type Wall Mount
Faucet Centers 8 Inches Adjustable (7 3/4 Inches to 8 1/4 Inches)
Nozzle Type Without Nozzle
Handle Type Lever
Material Stainless Steel
Water Inlet Size 1/2 Inch NPT Female
Selling Unit Each
Units Per Case 1
Shipping Width 13 Inches
Shipping Depth 3 Inches
Shipping Height 4 Inches
Shipping Weight 5 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

No. It is sold less nozzle, but the swivel outlet accepts standard stainless steel T&S swing nozzles.
The faucet has 8-inch adjustable centers, ranging from 7 3/4 inches to 8 1/4 inches.
It uses stainless steel 1/2-inch NPT female inlets.
Yes. It meets ANSI A117.1 ADA requirements.
Yes. The outlet converts to rigid with the included 014200-45 lock washer.
