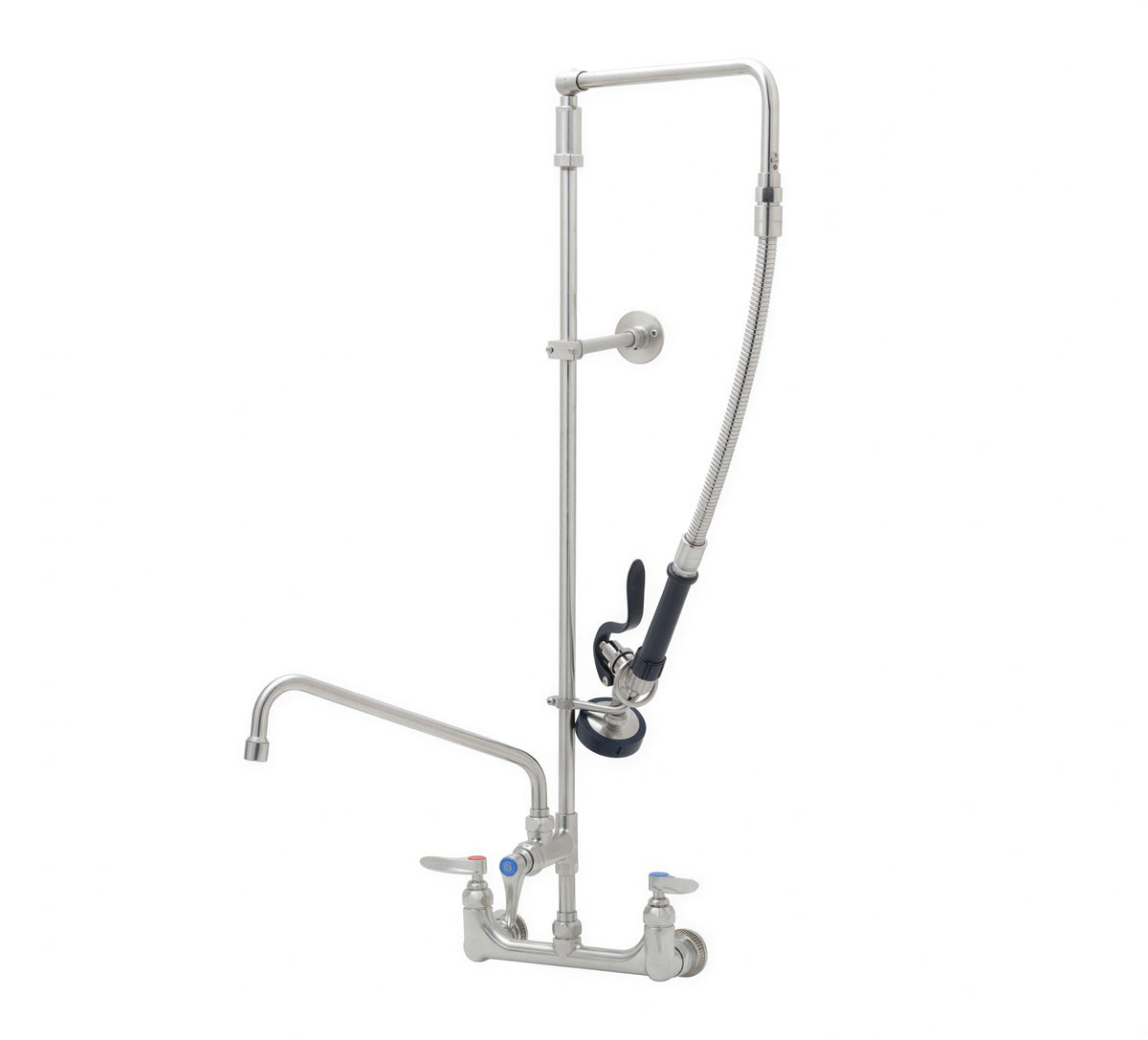

T&S Brass EasyInstall S-0131-A12-B Wall-Mount Pre-Rinse Faucet with 8-Inch Centers, 26-Inch Riser and 20-Inch Stainless Steel Hose
- Dimensions
- 12.0"W × 8.0"D × 30.0"H
- Faucet Centers
- 8 inches nominal; adjustable from 7 3/4 to 8 1/4 inches
- Mounting
- Wall mount
- Body Material
- Stainless steel
- Riser Height
- 26 inches
- Arm Type
- Overhead swivel arm
Specifications
Description
The S-0131-A12-B is an EasyInstall 8-inch wall-mount mixing pre-rinse unit with a stainless steel body, 26-inch riser, and overhead swivel arm.
- Pre-rinse assembly: Includes a 20-inch flexible stainless steel hose with heat-resistant handle, hold-down ring, and 1.15 GPM spray valve.
- Add-on faucet: Includes a 12-inch add-on faucet with compression cartridge and lever handle.
- Controls and connections: Features quarter-turn Eterna compression cartridges with spring checks, lever handles with color-coded indexes, and 1/2-inch NPT female eccentric inlets.
- Installation: Includes a 6-inch adjustable wall bracket and spray valve holder, with adjustable faucet centers from 7 3/4 to 8 1/4 inches.
- Compliance: Certified to ASME A112.18.1/CSA B125.1, NSF 61 Section 9, and NSF 372; 2019 DOE PRSV Class II compliant.
Overall Dimensions:
12.0"W x 8.0"D x 30.0"HProduct Weight:
30.0 lbWall-mount installation
The mixing faucet mounts to the wall and has nominal 8-inch centers adjustable from 7 3/4 to 8 1/4 inches.
Stainless steel construction
The wall-mount faucet body and add-on faucet body are specified as stainless steel.
Pre-rinse riser and swivel arm
The assembly has a 26-inch riser and overhead swivel arm.
Flexible hose and spray valve
The 20-inch flexible stainless steel hose has a heat-resistant handle and hold-down ring, and the spray valve is rated at 1.15 GPM at 60 psi.
Add-on faucet
The configuration includes a 12-inch add-on faucet with a compression cartridge and lever handle.
Quarter-turn cartridges
Quarter-turn Eterna compression cartridges with spring checks are specified to prevent cross flow of water.
Adjustable wall bracket
A 6-inch adjustable wall bracket and spray valve holder are included in the specified configuration.
Compliance listings
The product is certified to ASME A112.18.1/CSA B125.1, NSF 61 Section 9, and NSF 372, and is 2019 DOE PRSV Class II compliant.
