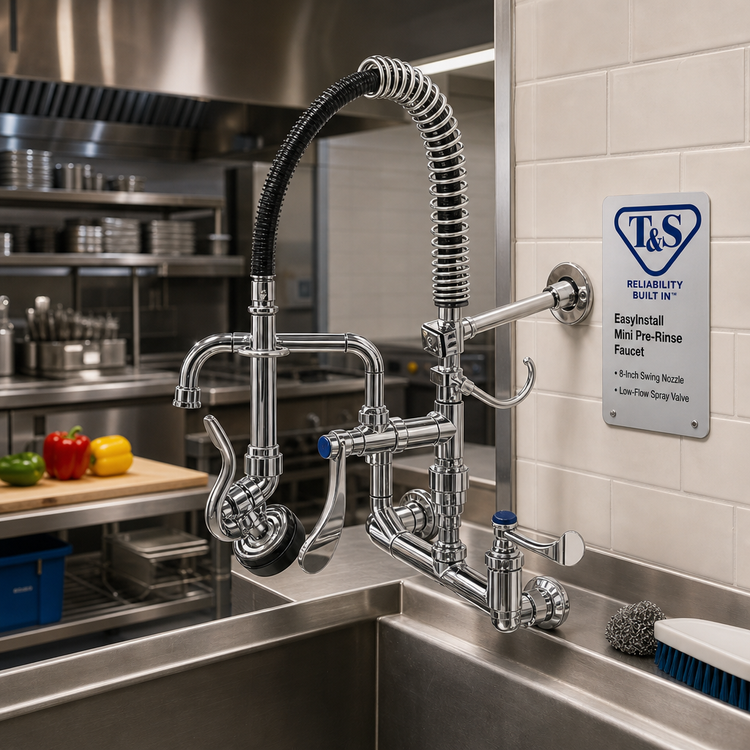

T&S Brass EasyInstall Mini Pre-Rinse Faucet with 8-Inch Swing Nozzle and Low-Flow Spray Valve

Wall Mount, 8-Inch Centers, 1.42 GPM, Vacuum Breaker, Wrist-Action Handles

A compact wall-mount pre-rinse solution that combines an 8-inch swing nozzle, low-flow spray valve, and wrist-action Cerama controls for efficient sink cleanup.

  • Wall-mounted mini pre-rinse faucet built for 8-inch centers with adjustable spacing from 7 3/4 inches to 8 1/4 inches.
  • 8-inch swing nozzle adds reach for filling and rinsing tasks at the sink.
  • 1.42 GPM angled spray valve delivers low-flow rinsing performance.
  • Quarter-turn Cerama cartridges with check valves and wrist-action handles provide smooth, reliable control.
  • Includes a vacuum breaker, 24-inch flexible stainless steel hose, and 6-inch wall bracket.
  • 1/2-inch NPT female inlets simplify plumbing connection.

Product Weight:

13.0 lb

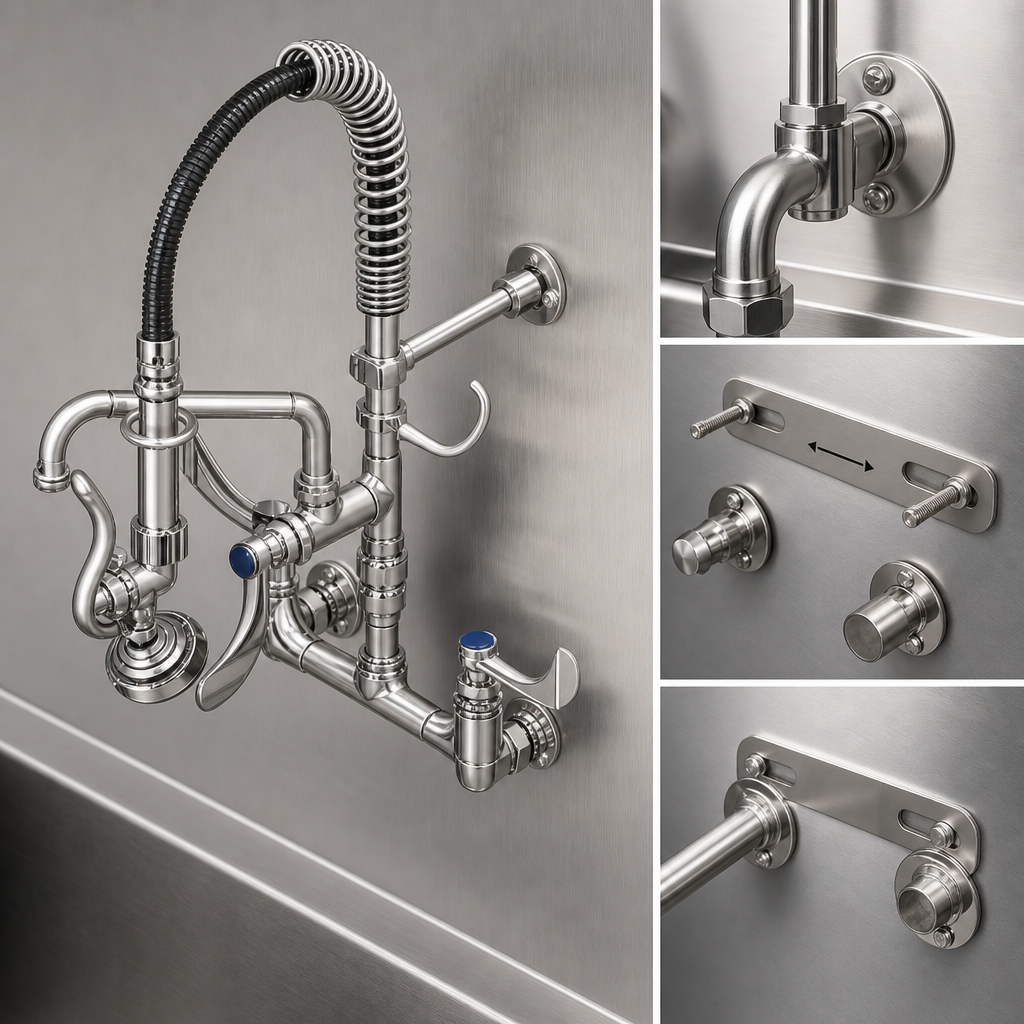

EasyInstall Wall Mount Mixing Faucet

Designed for 8-inch centers and adjusts from 7 3/4 inches to 8 1/4 inches; includes a 6-inch wall bracket for stable wall mounting.

Quarter-Turn Cerama Cartridges with Check Valves

Provides smooth quarter-turn operation and dependable shutoff with built-in check valves.

Wrist Action Handles with Color-Coded Indexes

Ergonomic wrist handles and red/blue indexes make operation and hot/cold identification easier.

8-Inch Swing Nozzle

Adds reach and movement for rinsing, filling, and wash-down tasks.

1.42 GPM Angled Spray Valve

Low-flow spray valve supports efficient rinsing while helping conserve water.

Vacuum Breaker

Included vacuum breaker helps protect against backflow.

24-Inch Flexible Stainless Steel Hose

Flexible spring-style hose adds reach and durability for everyday use.

1/2-Inch NPT Female Inlets

Standard female inlet connections support straightforward installation.

Type Pre-Rinse Unit
Style Mini
Installation Type Wall Mounted
Faucet Centers 8 Inches
Nozzle Type Swing Nozzle
Spout Length 8 Inches
Flow Rate 1.42 GPM
Controls Quarter-Turn
Handle Type Wrist Action
Water Inlet Size 1/2 Inch NPT Female
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Installation and maintenance instructions PDF Download

Frequently Asked Questions

Yes. It is an 8-inch wall-mount mixing faucet with a 6-inch wall bracket and adjustable centers from 7 3/4 inches to 8 1/4 inches.
The angled spray valve is rated at 1.42 GPM.
Yes, an EasyInstall vacuum breaker is included.
It uses quarter-turn Cerama cartridges with check valves and wrist-action handles.
It uses 1/2-inch NPT female inlets.
An 8-inch swing nozzle with stream regulator outlet is included.
