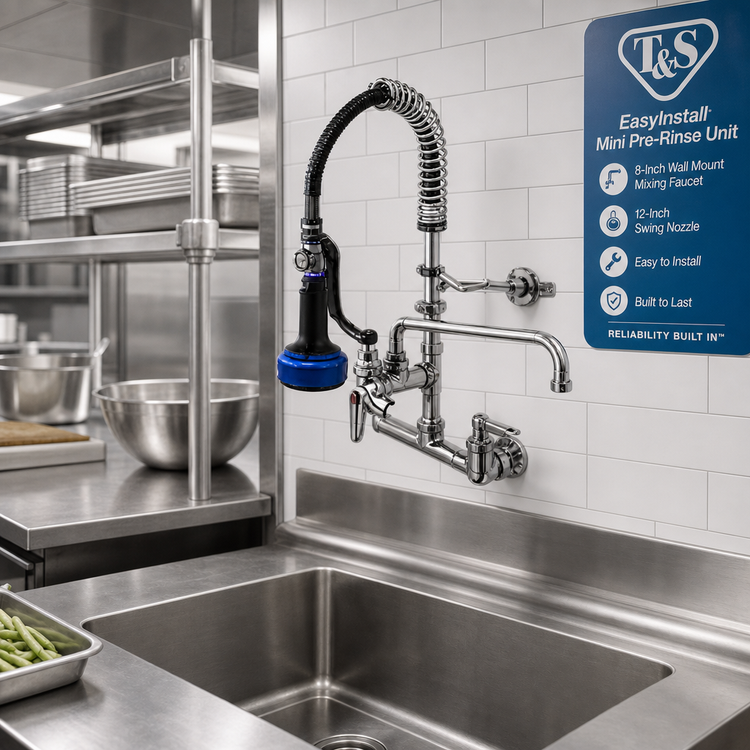

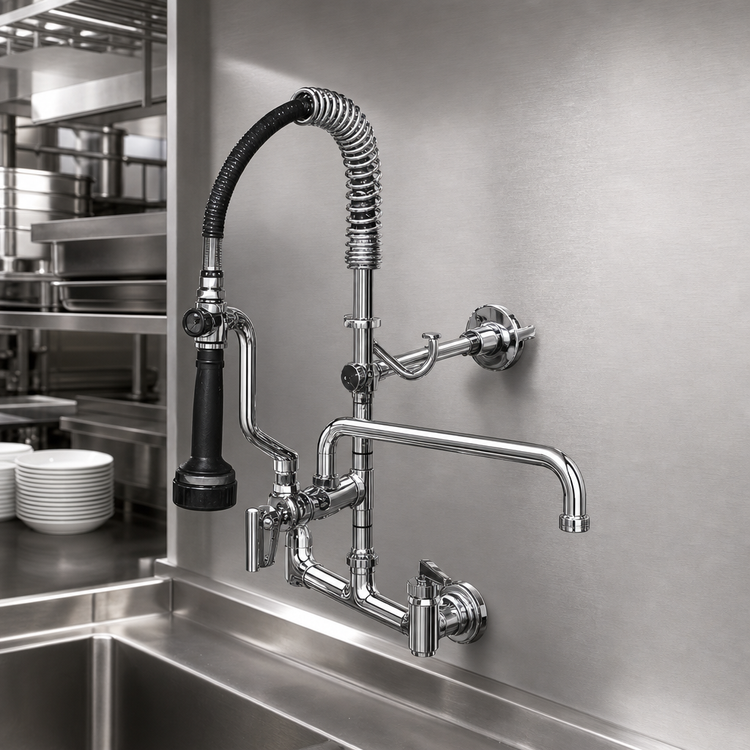

T&S Brass EasyInstall Mini Pre-Rinse Unit with 8-Inch Wall Mount Mixing Faucet and 12-Inch Swing Nozzle

Adjustable 8-Inch Centers, Polished Chrome Plated Brass, 1.07 GPM Spray Valve

Compact and efficient, this wall-mounted mini pre-rinse unit pairs an adjustable mixing faucet with a 12-inch swing nozzle and 1.07 GPM spray valve for dependable dishroom rinsing.

  • 8" wall mount mixing faucet with adjustable centers for easier installation.
  • 12" swing nozzle with stream regulator outlet for targeted rinsing.
  • 1.07 GPM JETSpray valve with insulated grip handle and trigger lock.
  • Quarter-turn Eterna cartridges with spring checks help prevent cross-flow.
  • 24" flexible stainless steel hose, 8" rigid riser, and 6" adjustable wall bracket included.
  • Polished chrome plated brass construction with low-lead compliance and cCSAus certification.

Product Weight:

12.1 lb

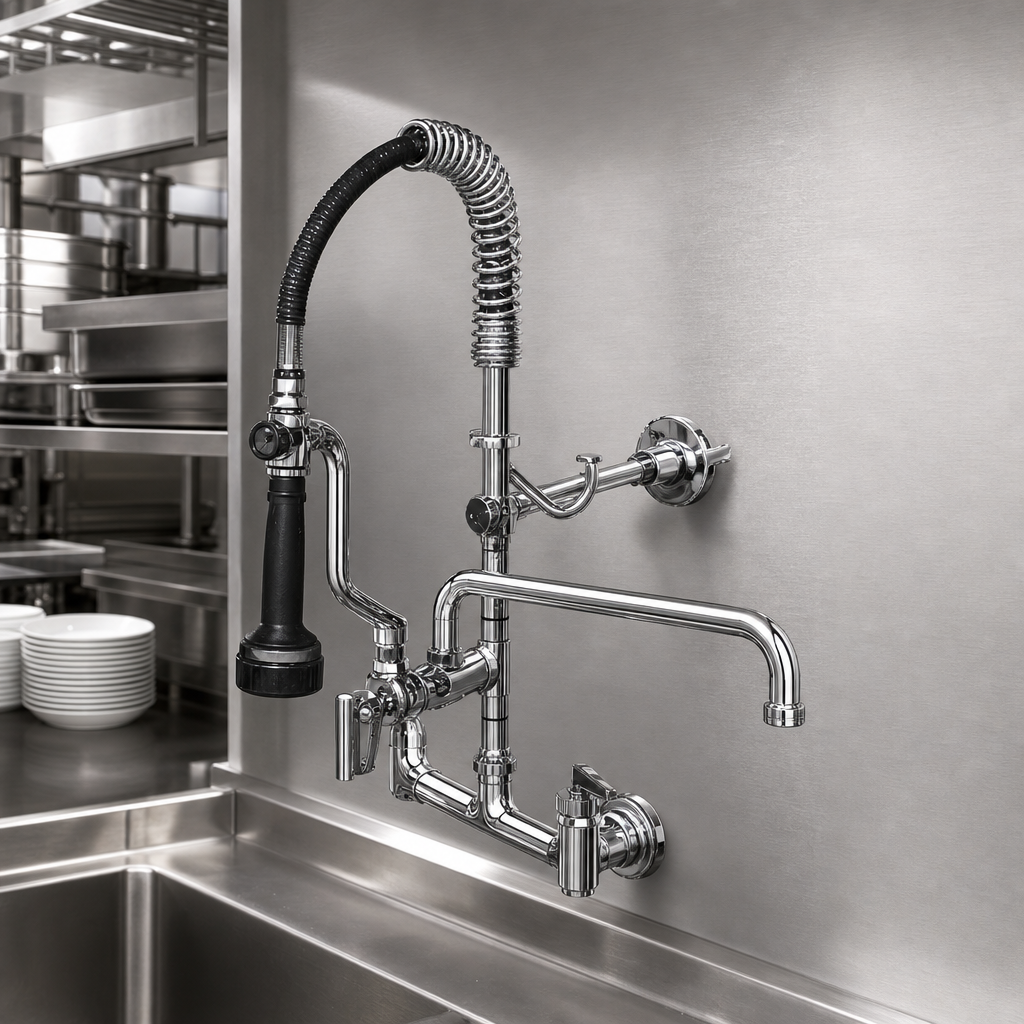

Wall-Mount Mixing Faucet

8" wall mount mixing faucet with a polished chrome plated brass body and add-on faucet.

Adjustable Centers

Centers adjust from 7 3/4" to 8 1/4" for installation flexibility.

12-Inch Swing Nozzle

12" swing nozzle includes a stream regulator outlet for controlled water delivery.

1.07 GPM Spray Valve

JETSpray valve includes an insulated grip handle, stainless steel trigger, and trigger lock.

Quarter-Turn Eterna Cartridges

Compression cartridges with spring checks help prevent cross flow of water.

Flexible Hose Assembly

Includes a 24" stainless steel flex hose with a heat-resistant handle.

Lever Handles

Chrome plated metal lever handles feature color-coded indexes for quick hot/cold identification.

Installation Hardware

Includes an 8" rigid riser, 6" adjustable wall bracket, spray valve holder, and overhead spring.

Compliance

Low-lead construction with cCSAus certification, NSF 61 Section 9, NSF 372, and EPAct 2005 compliance.

Type Mini Pre-Rinse Unit
Installation Type Wall Mounted
Material Brass
Finish Polished Chrome Plated
Faucet Centers 8 Inches
Nozzle Type Swing
Handle Type Lever
Water Inlet Size 1/2 Inch NPT Female
Flow Rate 1.07 GPM
Temperature Range 40 to 140 °F
Pressure Range 20 to 125 psi
Shipping Weight 12.1 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

Three-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download PDF Installation and maintenance instructions PDF Download

Frequently Asked Questions

It is an 8" wall mount mixing faucet with adjustable centers from 7 3/4" to 8 1/4".
The standard JETSpray valve flows at 1.07 GPM.
The unit features a polished chrome plated brass body, a stainless steel flex hose, and chrome plated metal handles.
Yes. It includes a 12" swing nozzle and an 8" rigid riser.
Yes. The documentation states NSF 372 low lead compliance along with NSF 61 Section 9 and EPAct 2005 compliance.
