T&S Brass

EasyInstall Mini Wall-Mount Pre-Rinse Unit with Add-On Faucet, 12-Inch Swing Nozzle, and 1.07 GPM Spray Valve

SKU: MPM-8WLN-12-SWV
GTIN: 671262791052
$625.74
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Faucets Commercial Faucets & Plumbing Commercial Plumbing Supplies New Arrivals Pre-rinse Faucets Restaurant Equipment Sinks & Handwashing Stations T&S Brass

EasyInstall Mini Wall-Mount Pre-Rinse Unit with Add-On Faucet, 12-Inch Swing Nozzle, and 1.07 GPM Spray Valve

8-Inch Adjustable Centers, Polished Chrome-Plated Brass, 24-Inch Hose

This compact wall-mount pre-rinse unit combines an add-on faucet, long-reach swing nozzle, and low-flow spray valve to speed up sink-side cleanup in tight commercial spaces.

  • Mini wall-mount pre-rinse unit designed for compact commercial sink stations.
  • 8-inch adjustable centers help simplify installation on existing wall mounts.
  • Includes a 12-inch swing nozzle and 1.07 GPM spray valve for efficient rinsing.
  • 24-inch flexible stainless steel hose, 8-inch riser, and 6-inch wall bracket improve reach and stability.
  • Quarter-turn Eterna cartridges with spring checks help prevent cross flow.
  • Polished chrome-plated brass construction with lever handles and color-coded indexes.
  • Low-lead design with commercial plumbing compliance for demanding kitchen use.

Product Weight:

12.65 lb

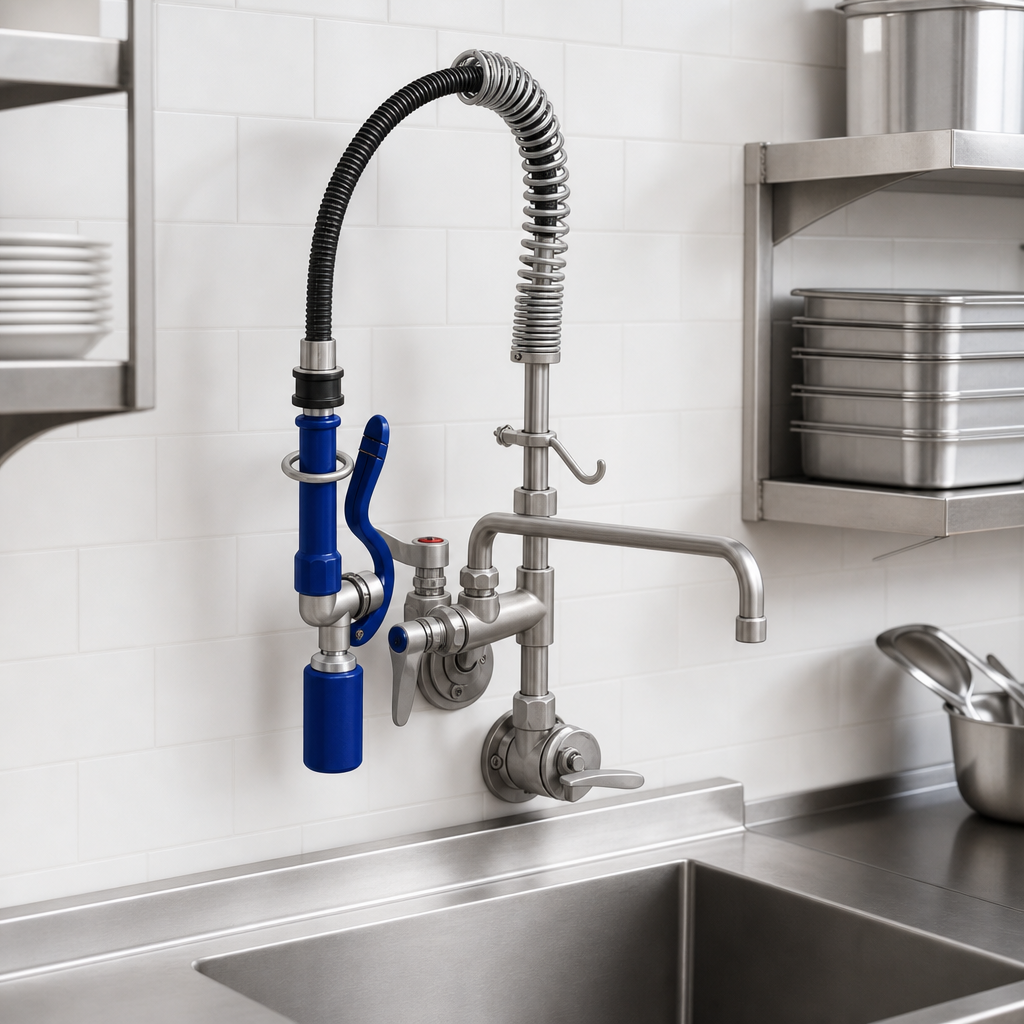

Mini Wall-Mount Design

Compact pre-rinse format saves space while providing full sink coverage.

Add-On Faucet and 12-Inch Swing Nozzle

Built-in add-on faucet gives extra fill capability, while the swing nozzle extends reach over the sink.

1.07 GPM Spray Valve

Low-flow spray valve helps conserve water without sacrificing rinsing performance.

Quarter-Turn Eterna Cartridges with Spring Checks

Provides smooth operation and helps prevent cross flow of water.

Adjustable 8-Inch Centers

Centers adjust from 7 3/4 inches to 8 1/4 inches for easier installation.

Flexible Hose and Riser

Includes a 24-inch flexible stainless steel hose and 8-inch riser for extended maneuverability.

Lever Handles with Color-Coded Indexes

Simple hot/cold identification and easy operation.

Chrome-Plated Brass Construction

Polished chrome-plated brass body offers durability and a clean appearance.

Wall Support Hardware

Includes a 6-inch adjustable wall bracket, spray valve holder, and overhead spring.

Low-Lead Commercial Construction

Designed for commercial use with low-lead content and NSF/CSA compliance.

Type Pre-Rinse Unit
Style Mini
Installation Type Wall Mounted
Material Chrome-Plated Brass
Finish Polished Chrome
Nozzle Type Swing Nozzle
Handle Type Lever
Faucet Centers 7 3/4 Inches to 8 1/4 Inches
Water Inlet Size 1/2 Inch NPT Female
Nozzle Length 12 Inches
Riser Length 8 Inches
Hose Length 24 Inches
Spray Valve Flow Rate 1.07 GPM
Add-On Faucet Flow Rate 9.73 GPM @ 60 PSI
Pressure Range 20 to 125 PSI
Temperature Range 40 °F to 140 °F
Shipping Weight 12.65 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Three-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

Yes. It is a wall-mount mini pre-rinse unit with 8-inch adjustable centers and a 6-inch adjustable wall bracket.
The included spray valve is rated at 1.07 GPM.
It uses 1/2-inch NPT female eccentric inlets with 2-inch flanges.
The unit is rated for 20 to 125 psi and 40°F to 140°F.
The manufacturer lists a three-year limited warranty.
Yes. Optional spray valves listed in the documentation include B-0107, B-0107-C, B-0108, and B-0108-C.
