T&S Brass

48-Inch Low-Lead Coated Stainless Steel Water Appliance Connector Hose with Quick Disconnect, 1/2-Inch NPT

SKU: HW-4C-48VB
GTIN: 671262775137
$326.61
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

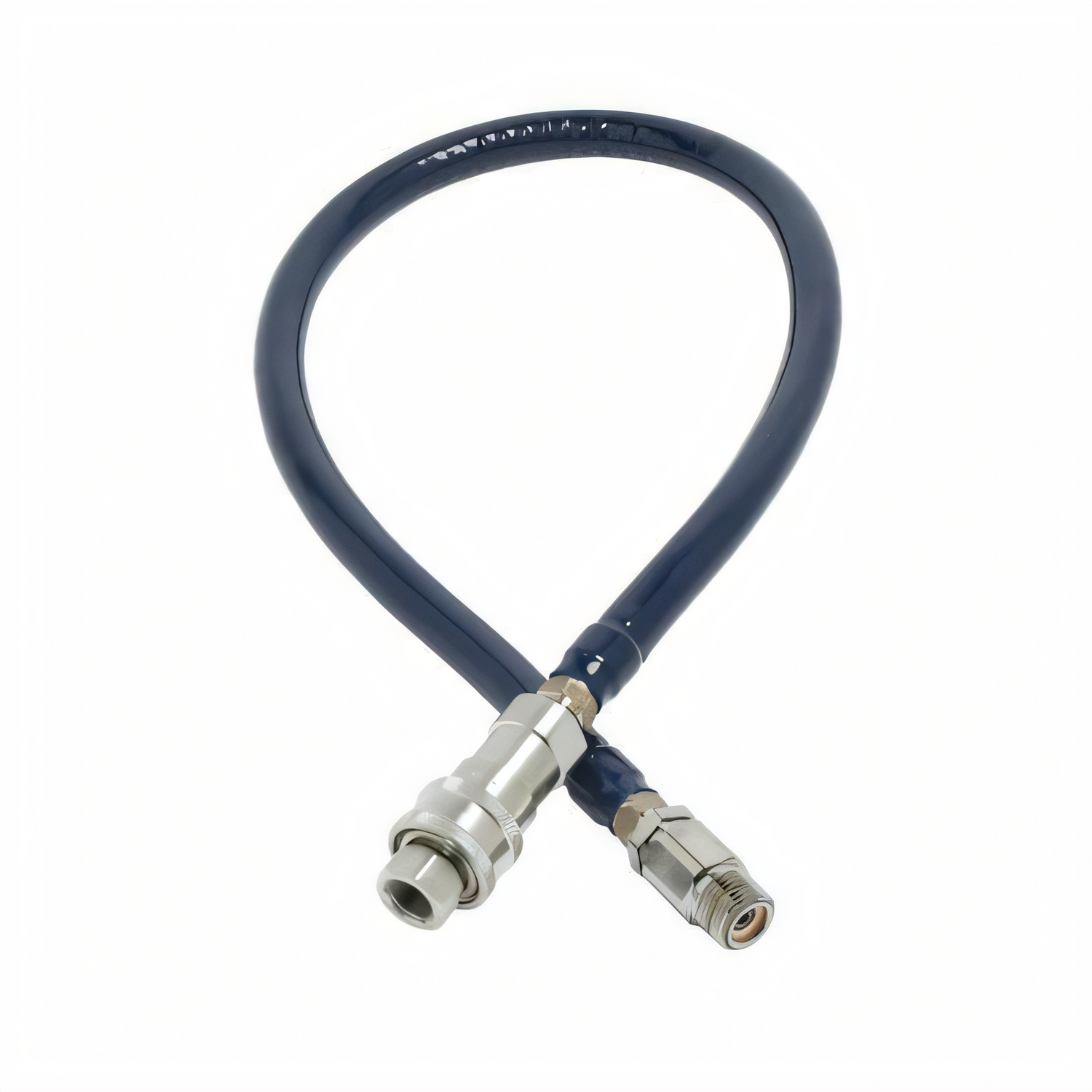

48-Inch Low-Lead Coated Stainless Steel Water Appliance Connector Hose with Quick Disconnect, 1/2-Inch NPT

Blue extruded coating, 1/2-inch diameter, and built-in vacuum breaker

Built for potable-water appliance hookups, this 48-inch connector hose combines a stainless steel braid, protective coating, quick-disconnect ends, and a vacuum breaker for reliable service.

  • 48-inch length provides flexible reach for water appliance connections.
  • Stainless steel braided construction with extruded blue coating helps protect the hose.
  • 1/2-inch NPT male outlet and female quick-disconnect inlet simplify installation and service.
  • Built-in 3/8-inch NPT vacuum breaker supports backflow prevention.
  • Low-lead, potable-water design is certified to NSF 61 Section 9 and NSF 372.
  • Rated for 20 to 125 psi and 40°F to 175°F with 10.77 GPM flow at 60 psi.

Product Weight:

4.0 lb

48-Inch Hose Length

Provides a full 48 inches of reach for appliance water connections.

Stainless Steel Braided Hose

Braided stainless steel construction adds strength and flexibility.

Extruded Blue Coating

The coated exterior helps protect the hose and gives it a blue finish.

Quick-Disconnect Connection

Female quick-disconnect fitting makes appliance changes faster and easier.

Built-In Vacuum Breaker

Includes a 3/8-inch NPT vacuum breaker for added backflow protection.

Low-Lead Water Use

Designed for low-lead potable water applications.

Certified Compliance

Certified to ASME A112.18.1 / CSA B125.1, NSF 61 Section 9, NSF 372, and CSA B64.8 (VB).

Type Water Appliance Connector Hose
Style Coated Stainless Steel Braid
Material Stainless Steel
Finish Blue Extruded Coating
Color Blue
Length 48 Inches
Hose Diameter 1/2 Inch
Inlet Connection 1/2 Inch NPT Female
Outlet Connection 1/2 Inch NPT Male
Vacuum Breaker Connection 3/8 Inch NPT
Pressure Range 20 PSI to 125 PSI
Temperature Range 40°F to 175°F
Flow Rate 10.77 GPM at 60 PSI
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Five-year limited warranty.

Frequently Asked Questions

It is 48 inches long with a 1/2-inch diameter.
It has a 1/2-inch NPT male outlet, a 1/2-inch NPT female inlet, and a 1/2-inch female quick-disconnect connection.
Yes. It includes a 3/8-inch NPT vacuum breaker.
The hose is rated for 20 to 125 psi and 40°F to 175°F, with a flow rate of 10.77 GPM at 60 psi.
The product is certified to ASME A112.18.1 / CSA B125.1, NSF 61 Section 9, NSF 372, and CSA B64.8 (VB).
