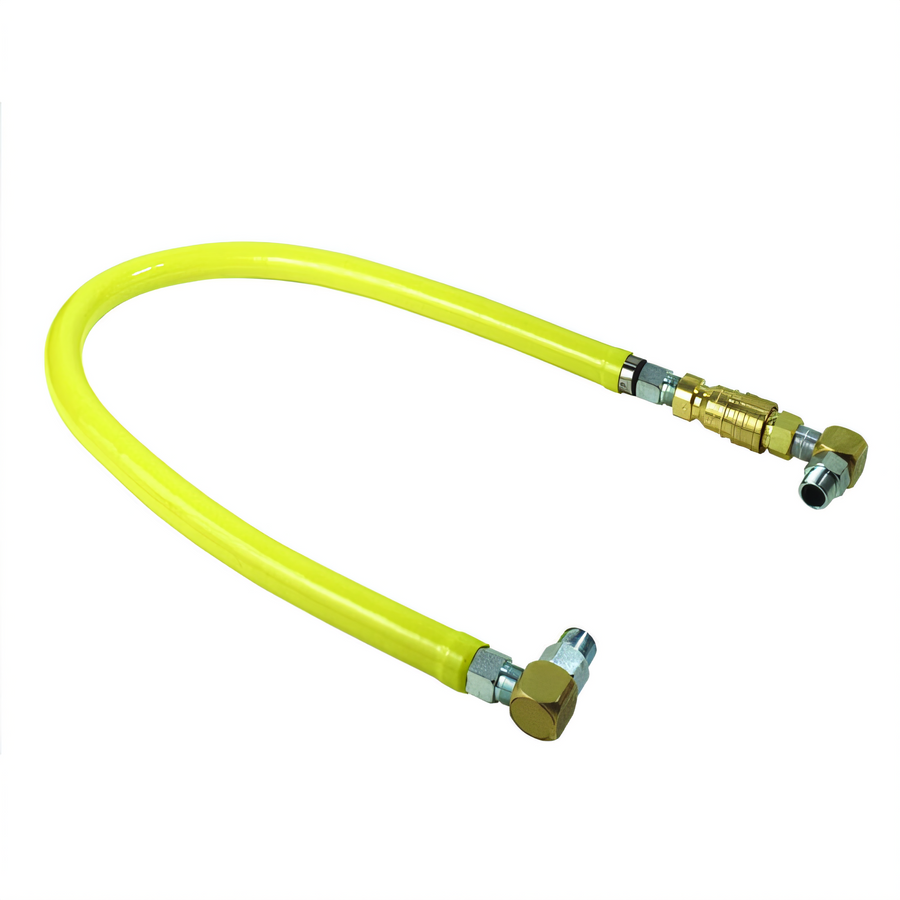

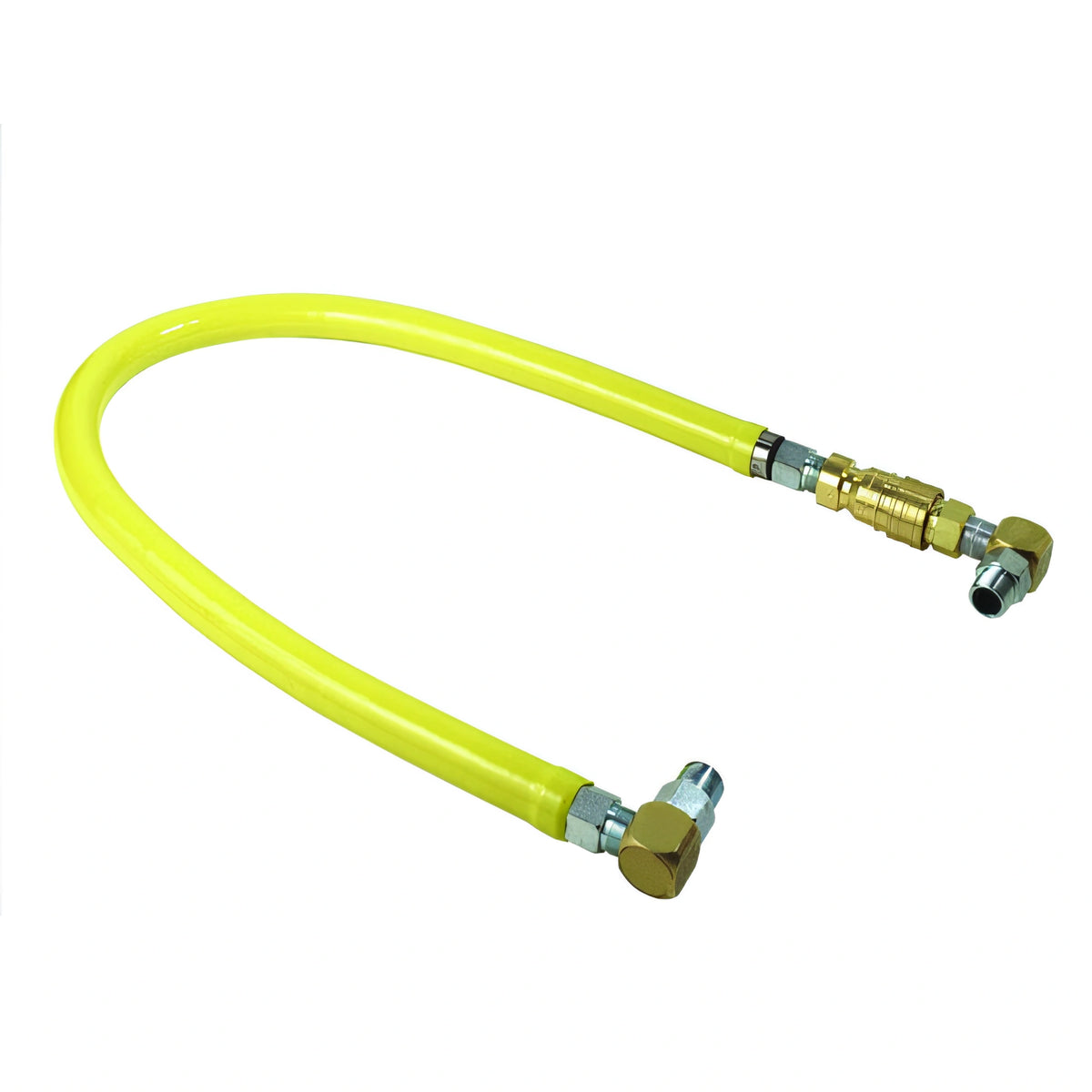

T&S Brass Safe-T-Link HG-4E-48S Gas Connector Hose, 48 Inch, 1 Inch Connection, Coated Stainless Steel Braided, Quick-Disconnect
- Dimensions
- 12 × 16 × 8
- Connection size
- 1 inch
- Connection type
- NPT male ends
- Hose length
- 48 inches
- Material
- Stainless steel braiding with extruded coating
- Quick-disconnect
- 1
Specifications
Description
The Safe-T-Link HG-4E-48S is a 48-inch coated gas connector hose with a 1-inch NPT connection, stainless steel braiding, and an extruded coating.
It includes one 2-piece quick-disconnect, two Swivelink fittings, and two 90° elbows. The specified minimum flow capacity is 335,000 BTU/hr.
Product compliance is listed as ANSI Z21.69 / CSA 6.16, NSF 2, and NFPA 54.
Product Weight:
8.0 lbCoated stainless steel braiding
The hose uses stainless steel braiding with an extruded coating.
1-inch NPT connection
The connector has 1-inch NPT male ends.
Quick-disconnect
One 2-piece quick-disconnect is specified.
Swivelink fittings
Two Swivelink fittings are specified.
90° elbows
Two 90° elbows are specified.
Minimum flow capacity
The specified minimum flow capacity is 335,000 BTU/hr.
