Description

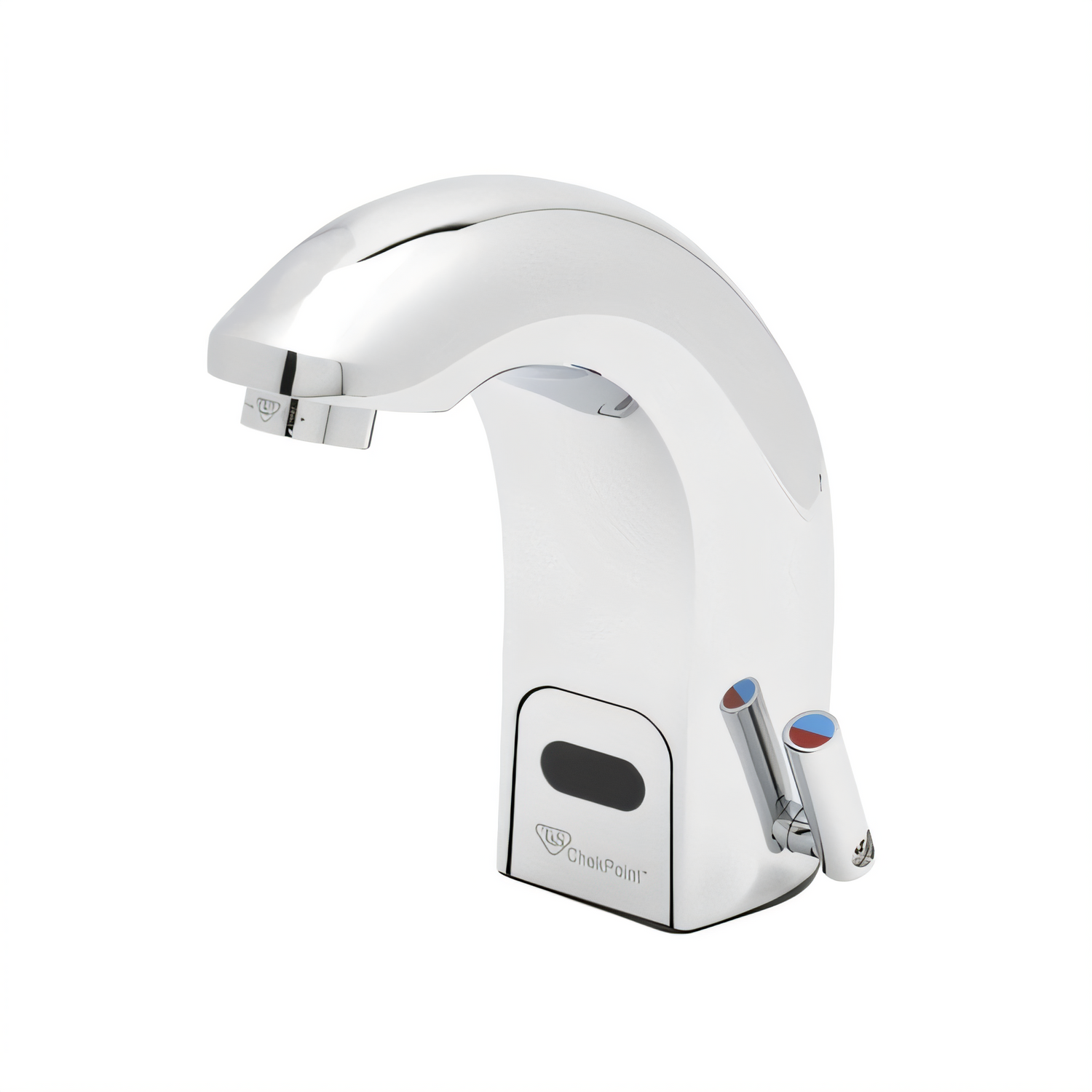

ChekPoint™ EC-3142-STV5THG Above-Deck Electronic Faucet
Hands-free hygiene with built-in water & energy savingsEngineered by T&S Brass for demanding commercial restrooms, the ChekPoint™ EC-3142-STV5THG delivers reliable touch-free operation, precise temperature control and ultra-low 0.5 GPM flow—all in a rugged, chrome-plated brass package that installs through a single deck hole.
Why you’ll love it

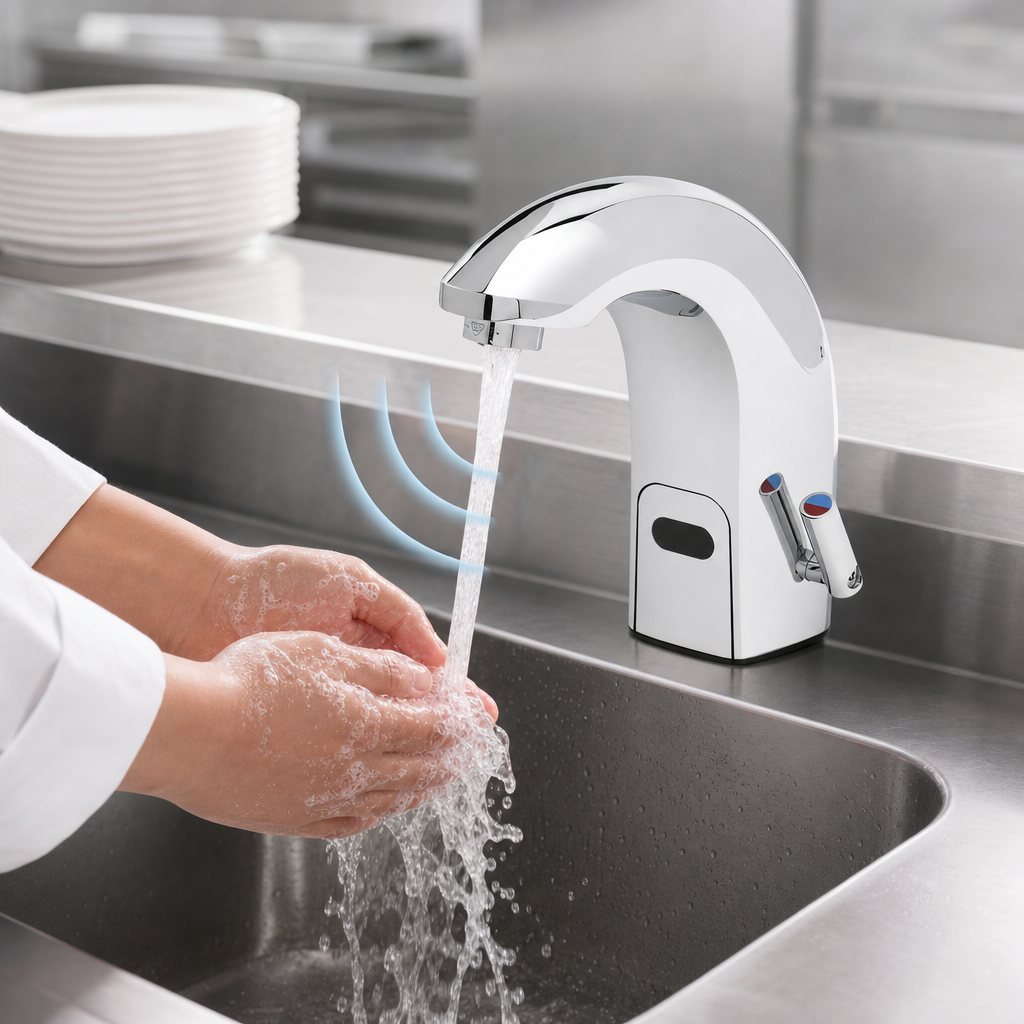

- Infrared sensor activation keeps users & surfaces germ-free and meets ADA/ANSI A117.1 requirements.
- 5" (127 mm) cast spout with vandal-resistant 0.5 GPM non-aerated spray device slashes water consumption.
- Self-charging low-flow hydro-generator powers the electronics—no routine battery changes.
- 6 V lithium back-up battery and 100-240 V AC transformer included for uninterrupted operation.
- On-board dip-switches let you set run time (15 sec – 20 min), shut-off delay (1-30 sec) and 12-hour auto-flush.
- ASSE 1070-listed EC-TMV thermostatic mixing valve with integral check valves prevents scalding.
- 18" stainless-steel supply hoses with 3/8" compression inlets + 19" hose with 1/2" NPSM swivel for quick hook-up.
- Lead-free (NSF 61/372) chrome-plated brass body built to survive high-traffic environments.
Technical data
| Brand / Series | T&S Brass • ChekPoint™ |
|---|---|
| Model number | EC-3142-STV5THG |
| Mounting style | Single-hole deck mount (Ø 1-1/4") |
| Spout reach / height | 5" reach • 6-3/8" overall height |
| Flow rate | 0.5 GPM (1.9 L/min) vandal-resistant spray |
| Power source | Hydro-generator (primary) • 6 V lithium battery (backup) • 100-240 V AC adapter |
| Temperature control | Included ASSE 1070 thermostatic mixing valve |
| Supply connections | (2) × 18" SS hoses, 3/8" compression (1) × 19" SS hose, 1/2" NPSM (generator) |
| Body material | Chrome-plated low-lead brass |
| Certifications | ASME A112.18.1 / CSA B125.1, NSF 61/372, UL 1951, ANSI A117.1 (ADA) |
| Warranty | 3-year limited manufacturer’s warranty |
Perfect for
- Public & corporate restrooms
- Healthcare & long-term care facilities
- Food-service & hospitality venues
- Education, transportation hubs & stadiums
Need a different flow rate or finish? Ask about additional ChekPoint™ configurations from T&S Brass.
