Description

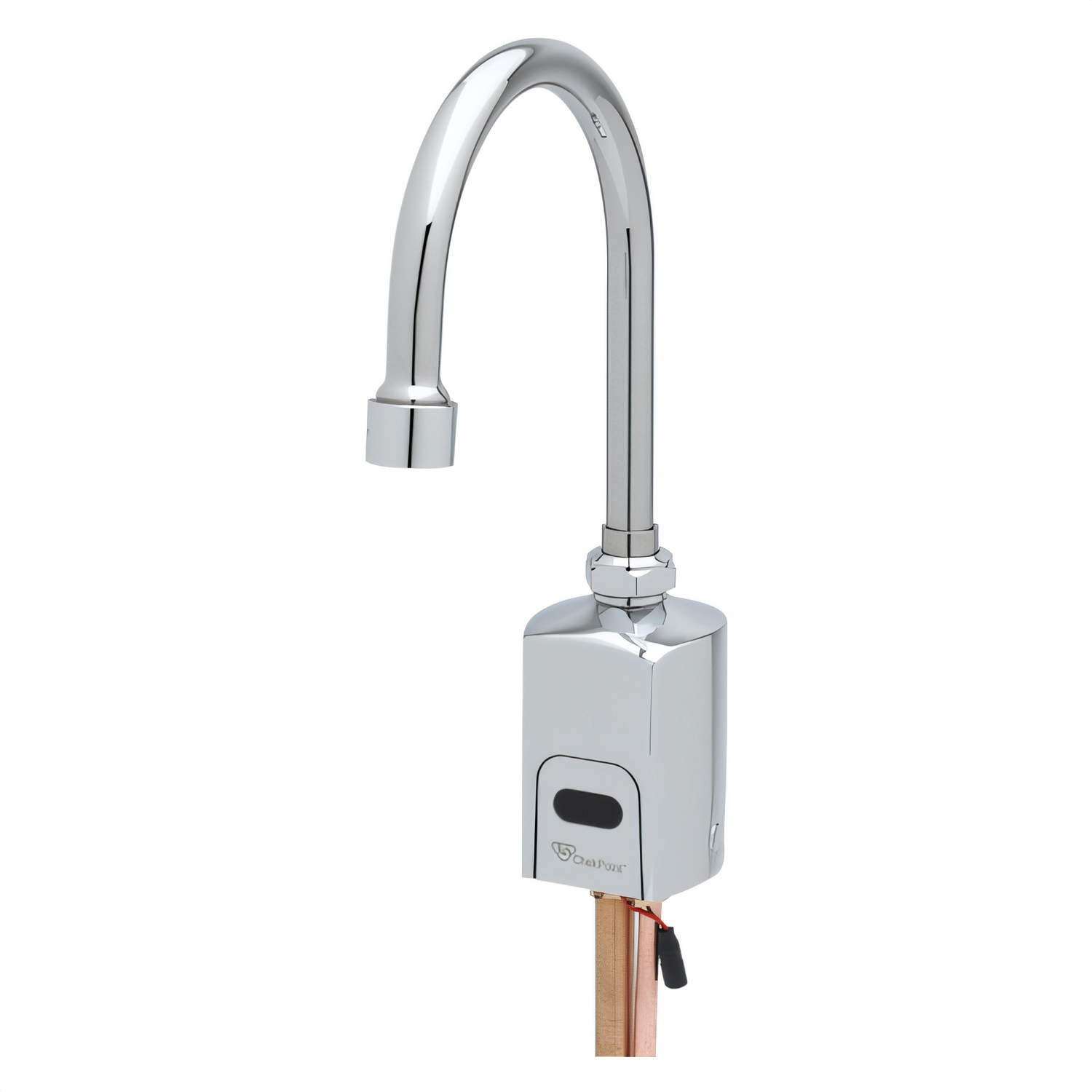

ChekPoint™ EC-3130-STV5THG Above-Deck Electronic Faucet
Hydro-Generator Powered • Thermostatic Mixing • 0.5 GPM Vandal-ResistantBuilt for demanding commercial restrooms, the T&S Brass ChekPoint™ EC-3130-STV5THG combines touch-free convenience with a rugged chrome-plated brass body, ultra-low 0.5 GPM laminar flow and an on-board hydro-generator that makes dead batteries a thing of the past. Integrated flow-control switches and a factory-matched ASSE 1070 thermostatic mixing valve give you complete command over water volume, run-time and temperature—right at the fixture.
Key features & benefits

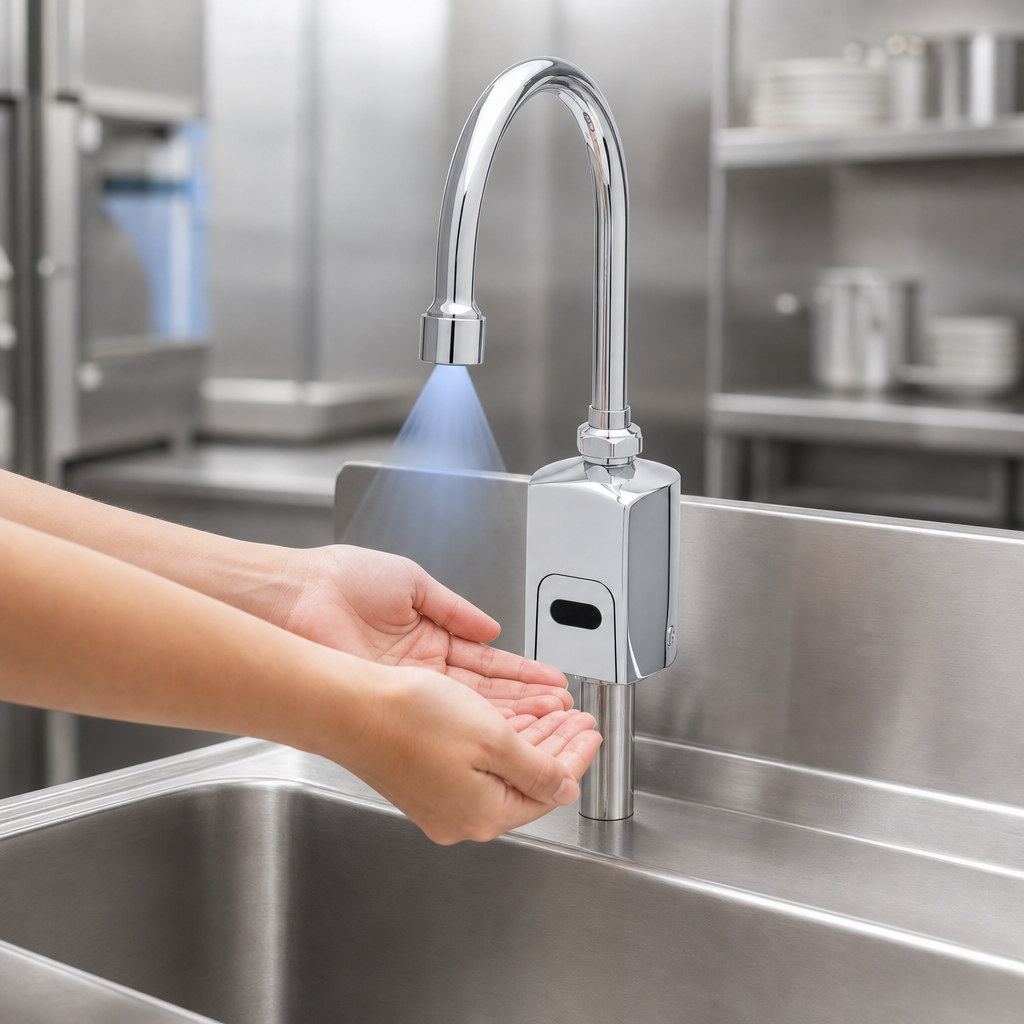

- Touch-free infrared activation reduces cross-contamination and saves water.
- Self-powered low-flow hydro-generator with 6 V lithium battery backup—no routine battery changes.
- 5-7/16" (138 mm) swivel gooseneck converts to rigid with the supplied lock washer for code compliance.
- 0.5 GPM (1.9 L/min) vandal-resistant non-aerated spray device supports LEED v4 & CALGreen.
- Point-of-use dip-switches let you set auto-timeout (15 s – 20 min), shut-off delay (1 s – 30 s) and 12-hr auto-flush ON/OFF.
- ASSE 1070 thermostatic mixing valve with integral check valves maintains safe, consistent water temperature.
- 18" (457 mm) braided stainless-steel supply hoses with 3/8" compression inlets for quick hook-up.
- Optional 100-240 VAC plug-in transformer included—ideal for hard-wire or multi-faucet installations.
- Chrome-plated brass construction, low-lead certified and fully ADA compliant.
Technical specifications
| Manufacturer | T&S Brass & Bronze Works |
|---|---|
| Model / Series | EC-3130-STV5THG • ChekPoint™ |
| Mounting | Single-hole deck mount (Ø 1-1/4" [32 mm]) |
| Overall height | 11-1/16" (281 mm) |
| Spout clearance | 5-7/16" (138 mm) |
| Spout reach | 6-3/4" (171 mm) |
| Flow rate | 0.5 GPM (1.9 L/min) laminar, vandal-resistant |
| Power | Hydro-generator & 6 V lithium battery back-up; 100-240 VAC transformer included (optional use) |
| Water temperature control | EC-TMV thermostatic mixing valve (ASSE 1070) |
| Supply connections | (2) × 18" braided SS hoses, 3/8" compression (9/16-24 UN) (1) × 19" hose to hydro-generator, 1/2" NPSM |
| Body material / finish | Chrome-plated brass |
| Adjustable settings | Auto timeout: 15 s, 30 s, 45 s, 60 s, 3 min, 20 min Shut-off delay: 1 s, 10 s, 15 s, 30 s Auto flush: 30 s every 12 hr (ON/OFF) |
| Compliance | ASME A112.18.1 / CSA B125.1, NSF 61 & 372, UL 1951, ASSE 1070, ANSI A117.1 (ADA) |
Powering multiple fixtures? Up to eight ChekPoint faucets can share one EC-HARDWIRE transformer when connected with EC-ADEWIRE cables (each sold separately).
Why choose ChekPoint™?
- Ultra-reliable electronics from the brand professionals trust.
- Hands-free hygiene and water-savings in one sleek package.
- Field-adjustable settings—no software, dongles or Wi-Fi required.
- Thermostatic safety protects every user, every time.
