T&S Brass

T&S Brass ChekPoint Ligature Resistant 4-Inch Centerset Deck Mount Touchless Electronic Sensor Faucet, Chrome Plated Brass, 0.5 GPM

SKU: EC-3113-VF05
$705.09
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Faucets Commercial Faucets & Plumbing Commercial Plumbing Supplies New Arrivals Restaurant Equipment Sinks & Handwashing Stations T&S Brass Touchless Faucets

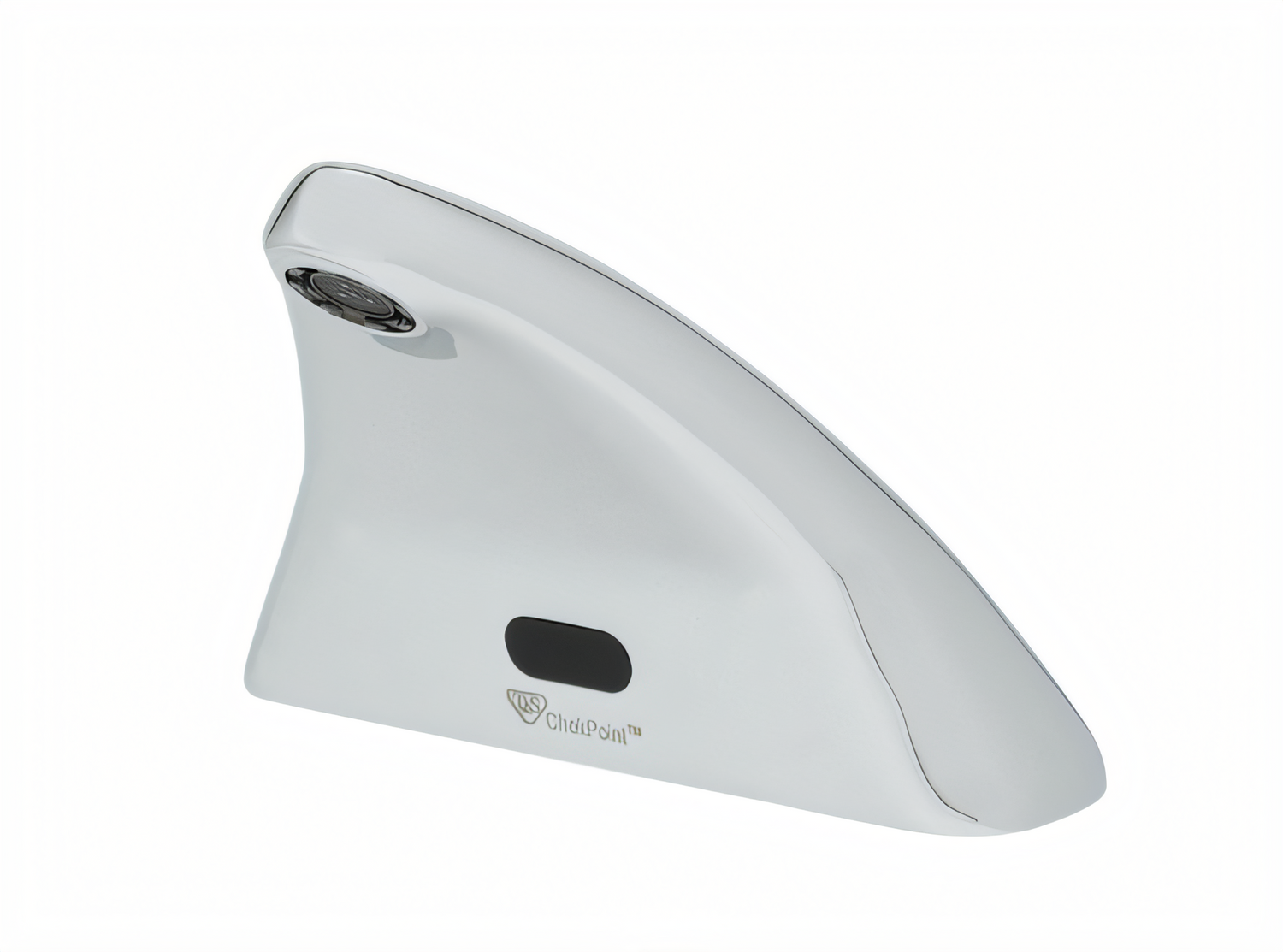

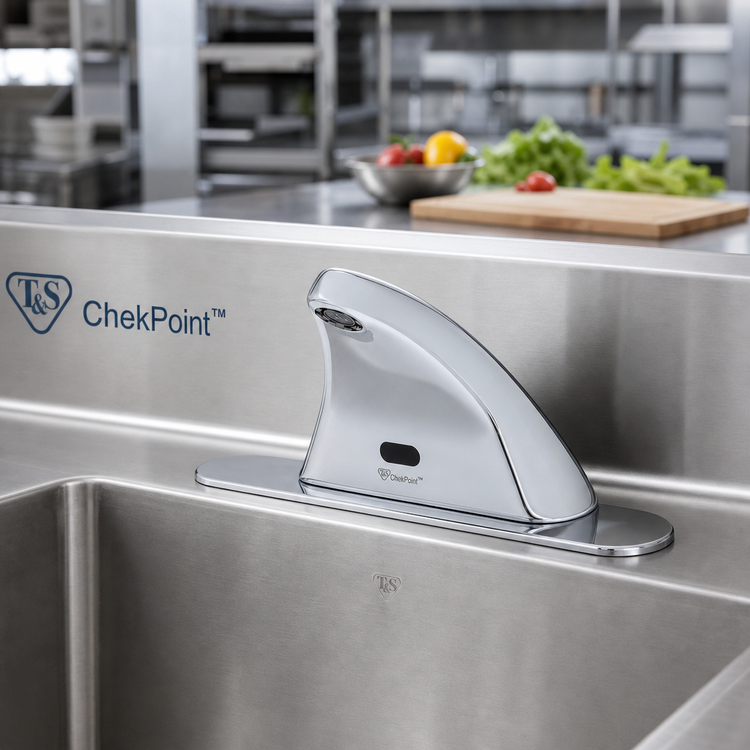

T&S Brass ChekPoint Ligature Resistant 4-Inch Centerset Deck Mount Touchless Electronic Sensor Faucet, Chrome Plated Brass, 0.5 GPM

AC/DC Control Module, Temperature Mixing Valve, Hidden Non-Aerated Spray

Built for secure environments, this touchless faucet combines ligature-resistant construction with vandal-resistant water delivery and flexible AC/DC power options.

  • Ligature-resistant solid cast brass body with polished chrome finish for demanding commercial settings.
  • Touchless electronic sensor operation helps reduce contact and improve hygiene at the sink.
  • 0.5 GPM hidden non-aerated spray device delivers efficient, vandal-resistant water flow.
  • Temperature mixing valve with integral check valves supports controlled outlet temperature.
  • Includes flexible stainless steel supply hoses and hardwire-capable control module for easier installation.

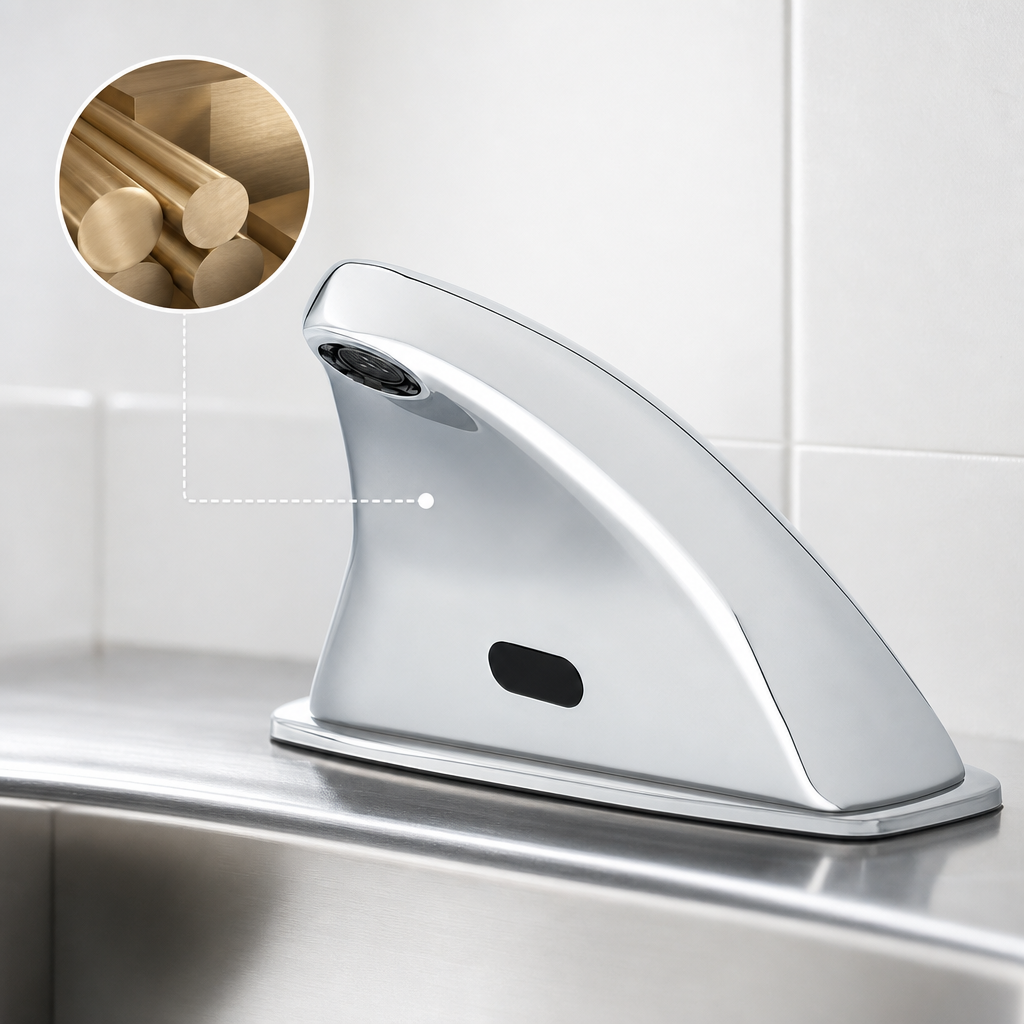

Ligature-Resistant Cast Brass Body

Solid cast brass construction is designed for ligature-resistant applications and finished in polished chrome plated brass.

4-Inch Centerset Deck Mount

Configured for a 4-inch centerset deck installation with rough-in requirements shown in the documentation.

Touchless Sensor Operation

Electronic sensor control provides hands-free activation for commercial handwashing stations.

Vandal-Resistant Hidden Spray Device

Uses a hidden non-aerated spray device rated at 0.5 GPM to help resist tampering and conserve water.

Temperature Mixing Valve

Includes a temperature control mixing valve with integral check valves for controlled hot and cold water blending.

Flexible Supply and Sensor Connections

Supplied with 18-inch flexible stainless steel supply hoses, a 24-inch sensor cable, and a removable strainer.

Flexible Power Options

AC/DC control module can operate with battery power, includes an adapter and is hardwire capable through rear terminals.

Type Electronic Sensor Faucet
Style Ligature Resistant
Mounting Type Deck Mount
Material Brass
Finish Polished Chrome
Nozzle Type Fixed / Rigid
Flow Rate 0.5 GPM
Water Inlet Size 3/8 Inch Compression
Voltage 100-240 Volts AC
Cord Length 72 Inches
Shipping Weight 7 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Yes. It is an electronic sensor faucet with touchless operation.
The faucet uses a 0.5 GPM vandal-resistant hidden non-aerated spray device.
It is a 4-inch centerset deck mount faucet and requires a center shank mounting hole plus mounting stud holes on 4-inch centers.
Yes. The control module can operate on AC or DC power with (4) AA batteries, and it is hardwire capable using terminals on the back.
The documentation lists 18-inch flexible stainless steel supply hoses, a temperature mixing valve with integral check valves, and a removable strainer.
