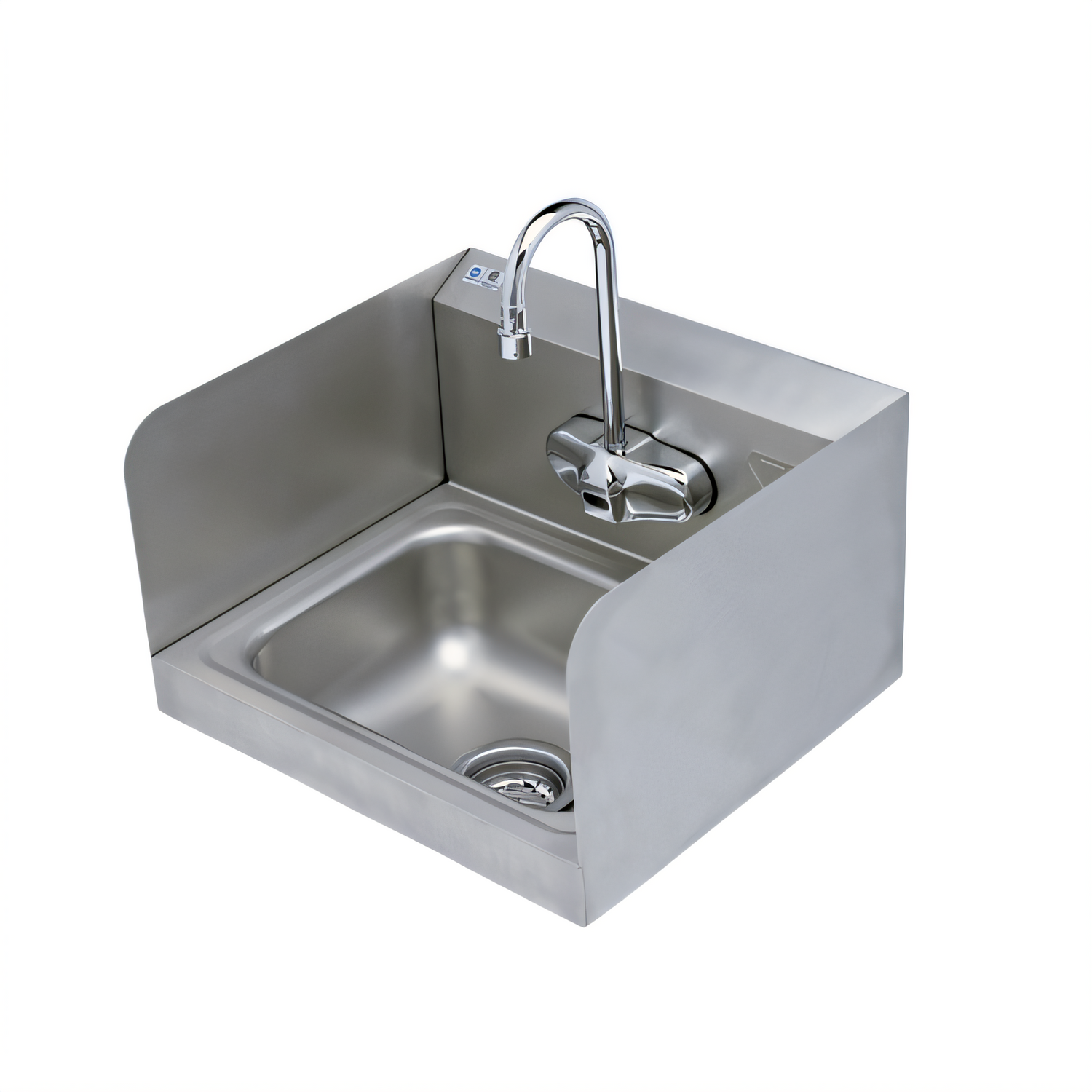

T&S Brass Wall-Mounted Stainless Steel Hand Sink with Electronic Sensor Faucet and Side Splash Shields

Includes 4-inch wall-mount faucet, 2.2 GPM aerator, hydro-generator, and 3-1/2-inch drain

This compact, wall-mounted hand sink combines stainless steel construction, a hands-free sensor faucet, and side splash protection to support cleaner, more efficient handwashing stations.

  • Wall-mounted stainless steel hand sink designed for compact handwashing stations.
  • Includes a 4-inch electronic sensor faucet for hands-free operation.
  • Side splash shields help contain water and protect adjacent surfaces.
  • Features a vandal-resistant 2.2 GPM aerator, temperature control mixing valve, and hydro-generator.
  • Ships with 18-inch flexible stainless steel supply hoses and a 3-1/2-inch sink drain.
  • Certified to multiple ASME, NSF, and UL standards and meets ADA ANSI/ICC A117.1 requirements.

Overall Dimensions:

14.5"W x 11.0"D x 5.5"H

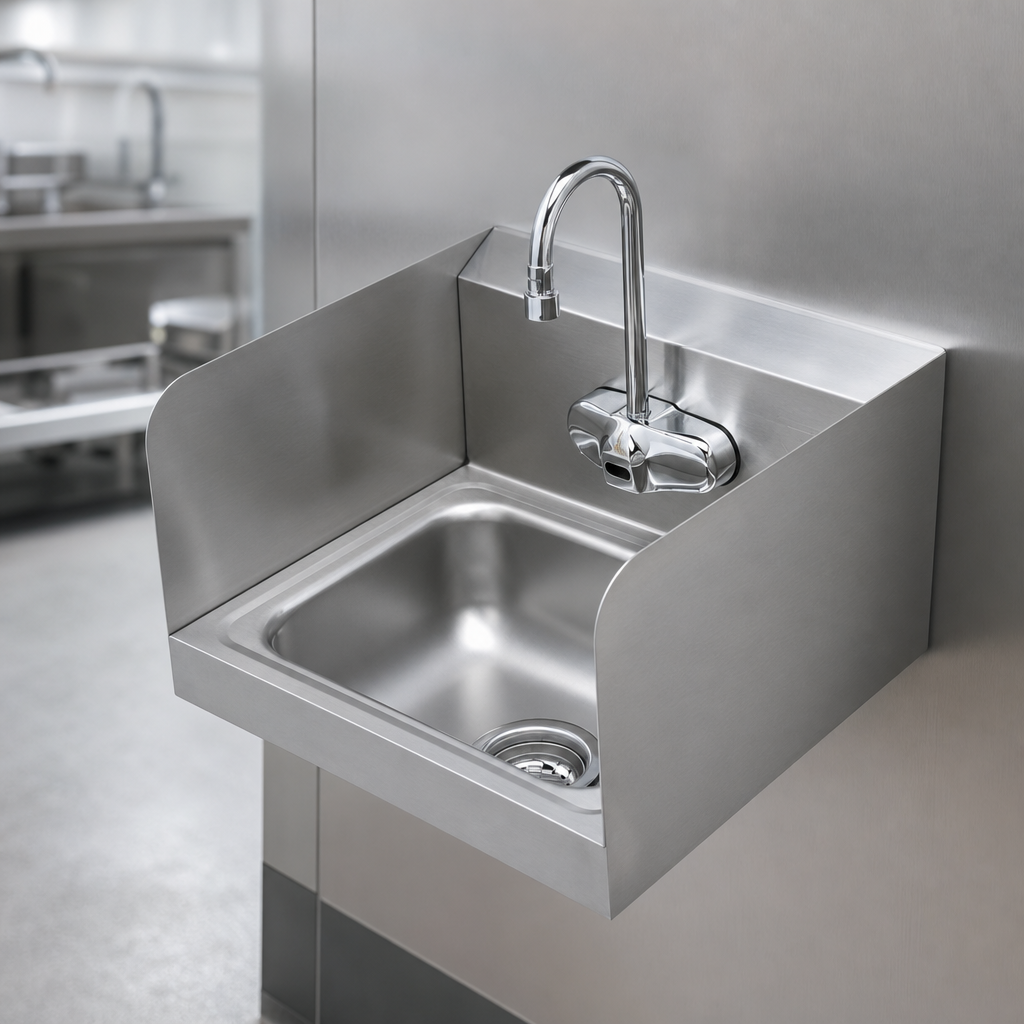

Stainless Steel Sink Construction

Durable stainless steel body suited for commercial handwashing applications.

Side Splash Shields

Helps contain splashes and protect nearby walls and fixtures.

Hands-Free Sensor Faucet

Includes a 4-inch wall-mount electronic sensor faucet with polished chrome plated brass body for touch-free operation.

Rigid Gooseneck Spout

4 1/8-inch rigid gooseneck provides clearance and directed water flow.

Vandal-Resistant Aerator

2.2 GPM aerator is designed for controlled flow and added durability.

Temperature Control Mixing Valve

Includes check valves and an AC/DC control module with internal flow control setting switches.

Hydro-Generator Power

Hydro-generator helps power the electronic faucet operation.

Flexible Supply Hoses and Drain

Includes 18-inch flexible stainless steel supply hoses with 3/8-inch compression connections and a 3 1/2-inch sink drain.

Compliance and Accessibility

Certified to ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, ASME A112.19.3/CSA B45.4, NSF 61-Section 9, NSF 372, and UL 1951; meets ADA ANSI/ICC A117.1 requirements.

Type Hand Sink
Installation Type Wall Mounted
Material Stainless Steel
Spout Length 4 1/8 Inches
Flow Rate 2.2 GPM
Water Inlet Size 3/8 Inch Compression
Drain Connection Size 3 1/2 Inches
Shipping Width 15 Inches
Shipping Depth 11 Inches
Shipping Height 6 Inches
Shipping Weight 50 Pounds
Selling Unit Each
Units Per Case 1

Documents

PDF Submittal PDF Download PDF Parts list PDF Download

Frequently Asked Questions

Yes. It includes a 4-inch wall-mounted electronic sensor faucet with a polished chrome plated brass body and rigid gooseneck spout.
The sink includes a 3 1/2-inch drain.
Yes. The included faucet uses electronic sensor operation for touch-free use.
It is certified to ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, ASME A112.19.3/CSA B45.4, NSF 61-Section 9, NSF 372, and UL 1951.
Yes. It meets ADA ANSI/ICC A117.1 requirements.
