T&S Brass

T&S Brass Wall-Mounted Stainless Steel Hand Wash Sink with Side Splash Shields and Electronic Sensor Faucet

SKU: EC-3101-HG-1W-S
GTIN: 671262926751
$998.33
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Plumbing Supplies Commercial Sinks Hand Sinks Hand Wash Sinks New Arrivals Restaurant Equipment Sinks & Handwashing Stations T&S Brass

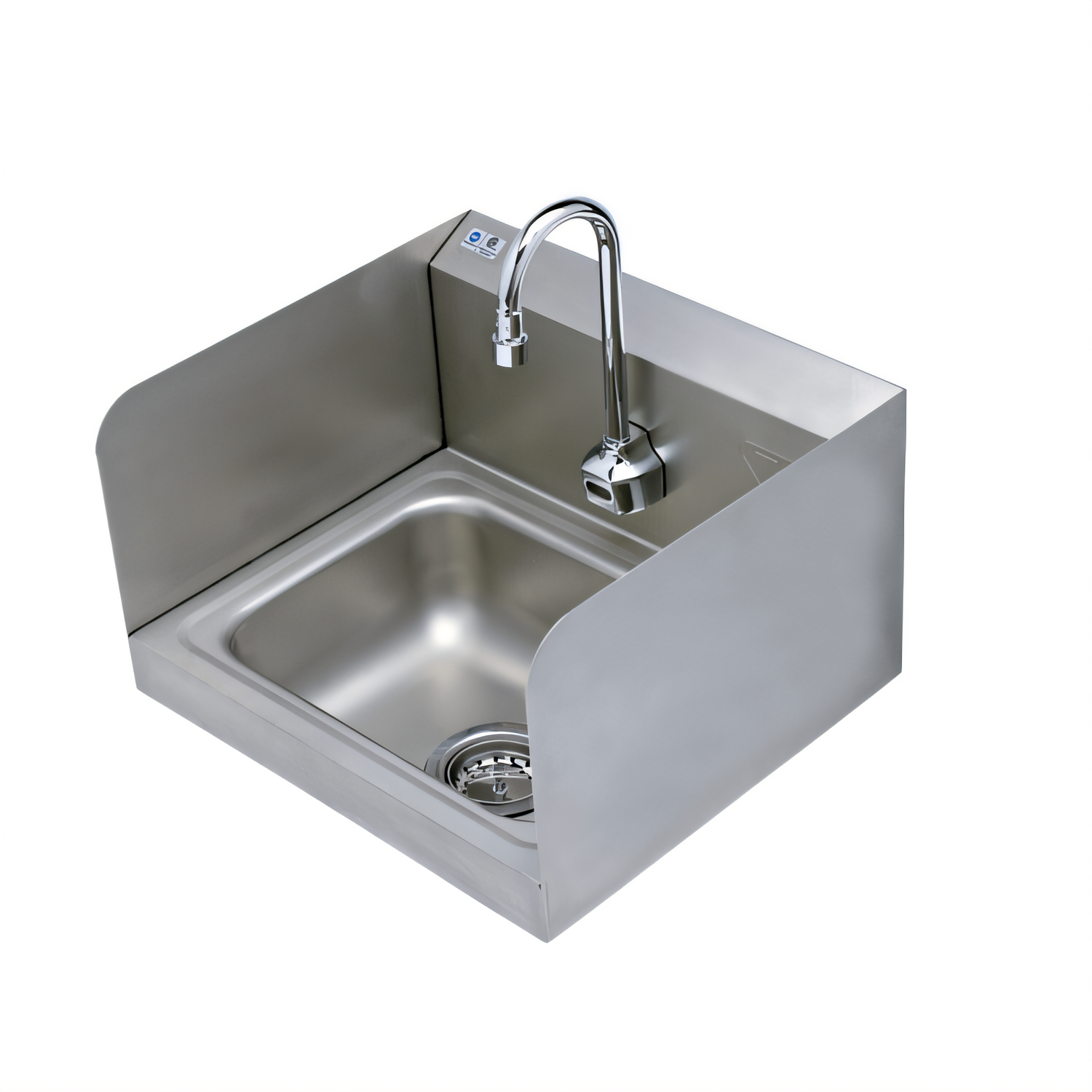

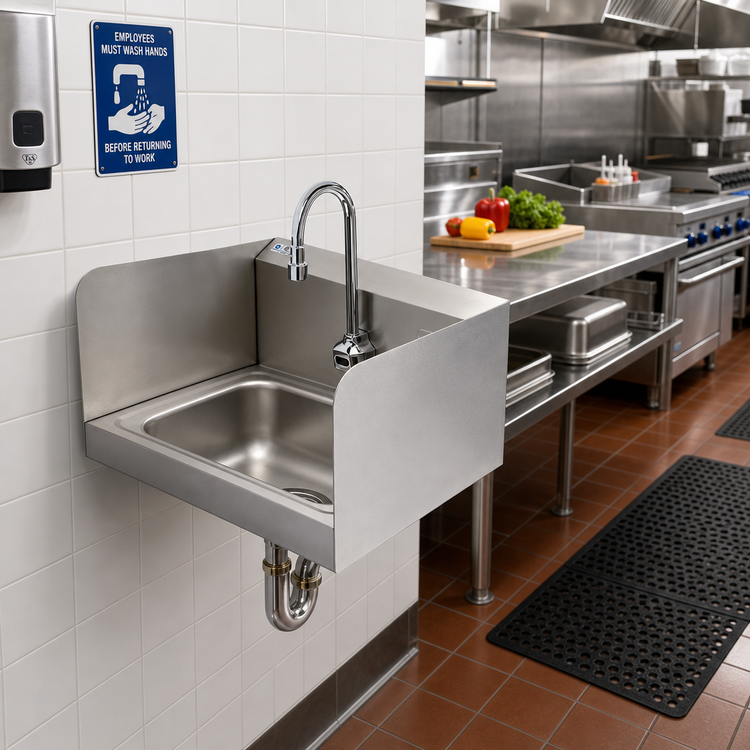

T&S Brass Wall-Mounted Stainless Steel Hand Wash Sink with Side Splash Shields and Electronic Sensor Faucet

Single-Hole Faucet, 4 1/8-Inch Gooseneck, 2.2 GPM

This compact wall-mounted hand wash sink combines a stainless steel basin with a touch-free sensor faucet to support cleaner, more efficient handwashing.

  • Wall-mounted stainless steel hand wash sink built for commercial handwashing stations.
  • Side splash shields help contain water and protect adjacent surfaces.
  • Includes a single-hole electronic sensor faucet for touch-free operation.
  • Faucet features a 4 1/8-inch rigid gooseneck and a 2.2 GPM vandal-resistant aerator.
  • Built with a temperature control mixing valve, check valves, AC/DC control module, and hydro-generator.
  • Includes 18-inch flexible stainless steel supply hoses and a 3 1/2-inch sink drain.
  • Meets ADA ANSI/ICC A117.1 requirements and is certified to major ASME, NSF, and UL standards.

Overall Dimensions:

15.44"W x 10.25"D x 3.75"H

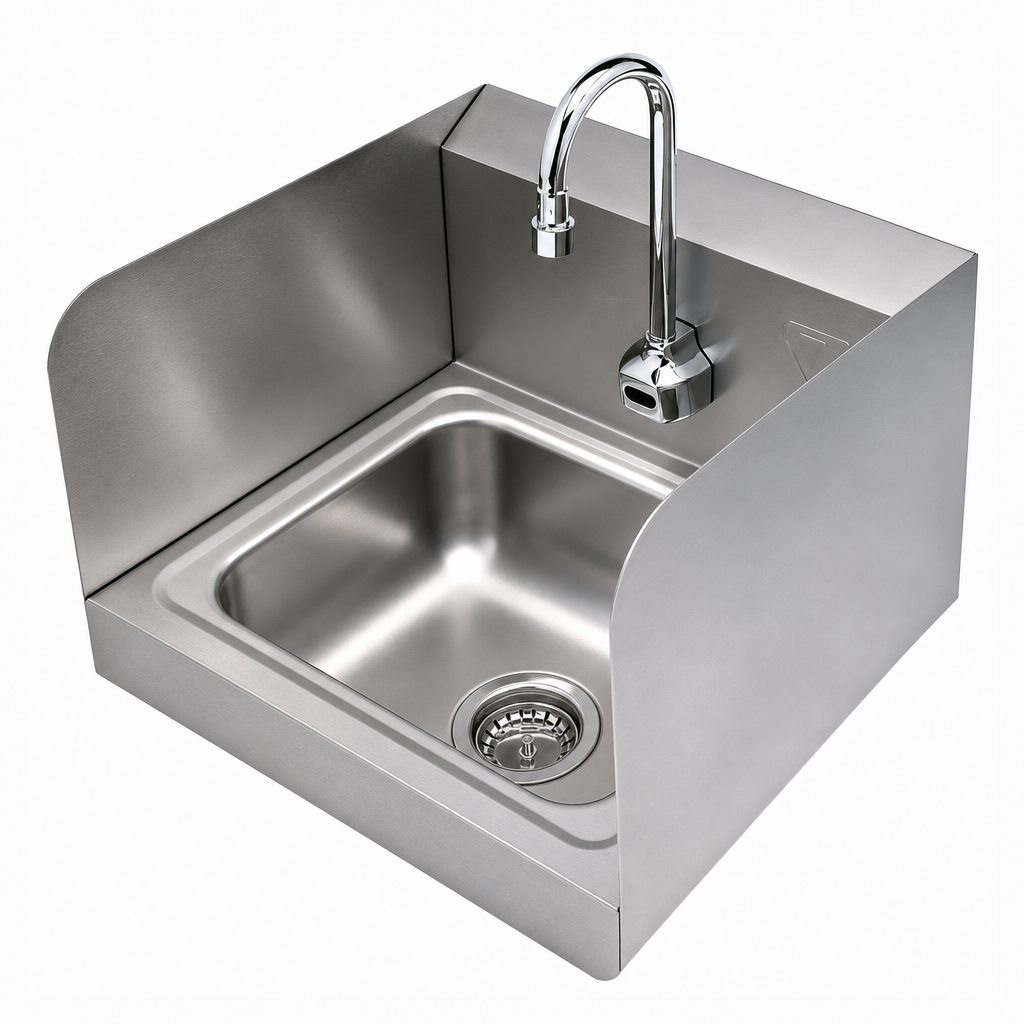

Stainless Steel Sink Basin

Durable stainless steel construction is well suited for commercial handwashing applications.

Side Splash Shields

Helps contain water and reduce splatter around the sink area.

Touch-Free Electronic Sensor Faucet

Single-hole wall-mount faucet with a polished chrome plated brass body for hands-free operation.

Rigid Gooseneck Spout

The 4 1/8-inch rigid gooseneck provides practical clearance over the sink.

Vandal-Resistant Aerator

The 2.2 GPM aerator helps control flow while resisting tampering.

Mixing Valve and Hydro-Generator

Includes a temperature control mixing valve with check valves, AC/DC control module, internal flow control setting switches, and hydro-generator.

Stainless Steel Supply Hoses

Comes with 18-inch flexible stainless steel supply hoses with 3/8-inch compression connections.

Drain and Compliance

Includes a 3 1/2-inch sink drain and meets ADA ANSI/ICC A117.1 requirements; certified to ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, ASME A112.19.3/CSA B45.4, NSF 61-Section 9, NSF 372, and UL 1951.

Type Hand Wash Sink
Installation Type Wall Mounted
Material Stainless Steel
Controls Electronic Sensor
Nozzle Type Rigid Gooseneck
Flow Rate 2.2 GPM
Water Inlet Size 3/8-Inch Compression
Drain Connection Size 3 1/2 Inches
Shipping Width 16 Inches
Shipping Depth 11 Inches
Shipping Height 4 Inches
Shipping Weight 50 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Submittal PDF Download PDF Parts list PDF Download

Frequently Asked Questions

Yes. It includes a single-hole wall-mounted electronic sensor faucet.
The faucet includes a vandal-resistant aerator rated at 2.2 GPM.
The sink includes a 3 1/2-inch drain.
Yes. Side splash shields are included.
The included 18-inch flexible stainless steel supply hoses use 3/8-inch compression connections.
Yes. It meets ADA ANSI/ICC A117.1 requirements and is certified to ASME, NSF, and UL standards.
