Description

T&S Brass ChekPoint™ Electronic Glass Filler with Filtration

Model EC-1210-12-WFK

Deliver crystal-clear, great-tasting water without ever touching a handle. The ChekPoint™ EC-1210-12-WFK combines a rugged 12" chrome-plated brass body, touch-free sensor technology and an integrated water-filtration kit—perfect for high-volume beverage stations, breakrooms and healthcare facilities.

Key Features

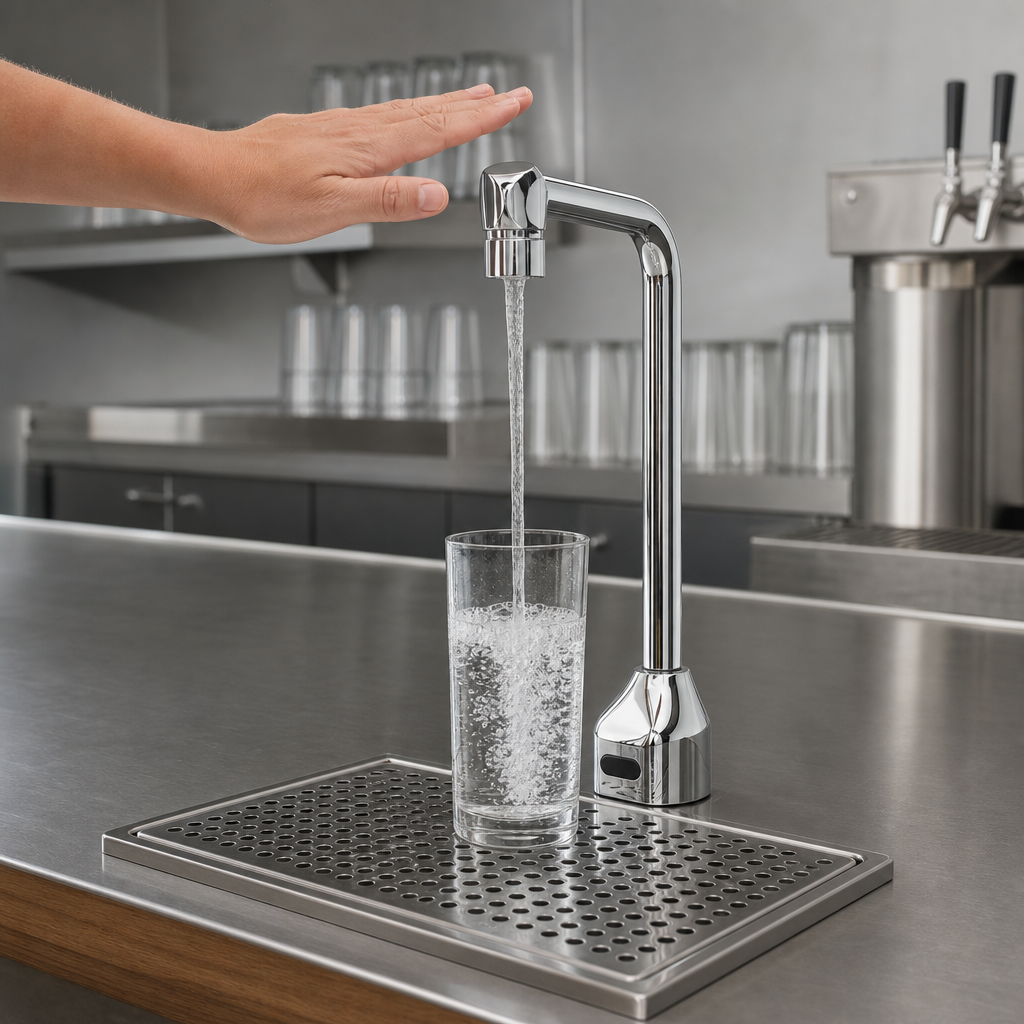

  • Hands-free infrared activation for maximum hygiene
  • Rigid high-arc gooseneck with 4 5⁄8" clearance for easy glass positioning
  • Vandal-resistant 1.5 GPM laminar outlet with anti-microbial coating (Series 6)
  • ChekPoint™ control module—runs on the included 100-240 VAC adapter or (4) AA batteries
  • On-board switches adjust auto time-out, shut-off delay, metering & 12-hour auto-flush
  • Complete B-WFK water-filtration kit with quick-change cartridge & shut-off docking station
  • Low-lead brass construction; NSF 61 & NSF 372 certified
  • ADA, cCSAus & cULus (UL 1951) compliant
  • Three-year limited manufacturer’s warranty

Specifications

Installation Single-hole deck mount (Ø1" / 25 mm)
Maximum Deck Thickness 2 1⁄4" (57 mm)
Overall Height ≈13 13⁄16" (351 mm)
Spout Clearance 4 5⁄8" (118 mm)
Flow Rate 1.5 GPM (5.7 L/min) @ 60 psi
Operating Pressure 20 – 125 psi (1.38 – 8.62 bar)
Water Temperature 40 °F – 140 °F (4.4 °C – 60 °C)
Power Options 100–240 VAC adapter (71" cord) or (4) AA batteries
Auto-Flush Selectable 30 s flush after 12 h inactivity
Filtration Carbon-block cartridge, 2 1⁄2" (64 mm) clearance for change-out
Certifications ASME A112.18.1 / CSA B125.1, NSF 61 & 372, UL 1951, ADA

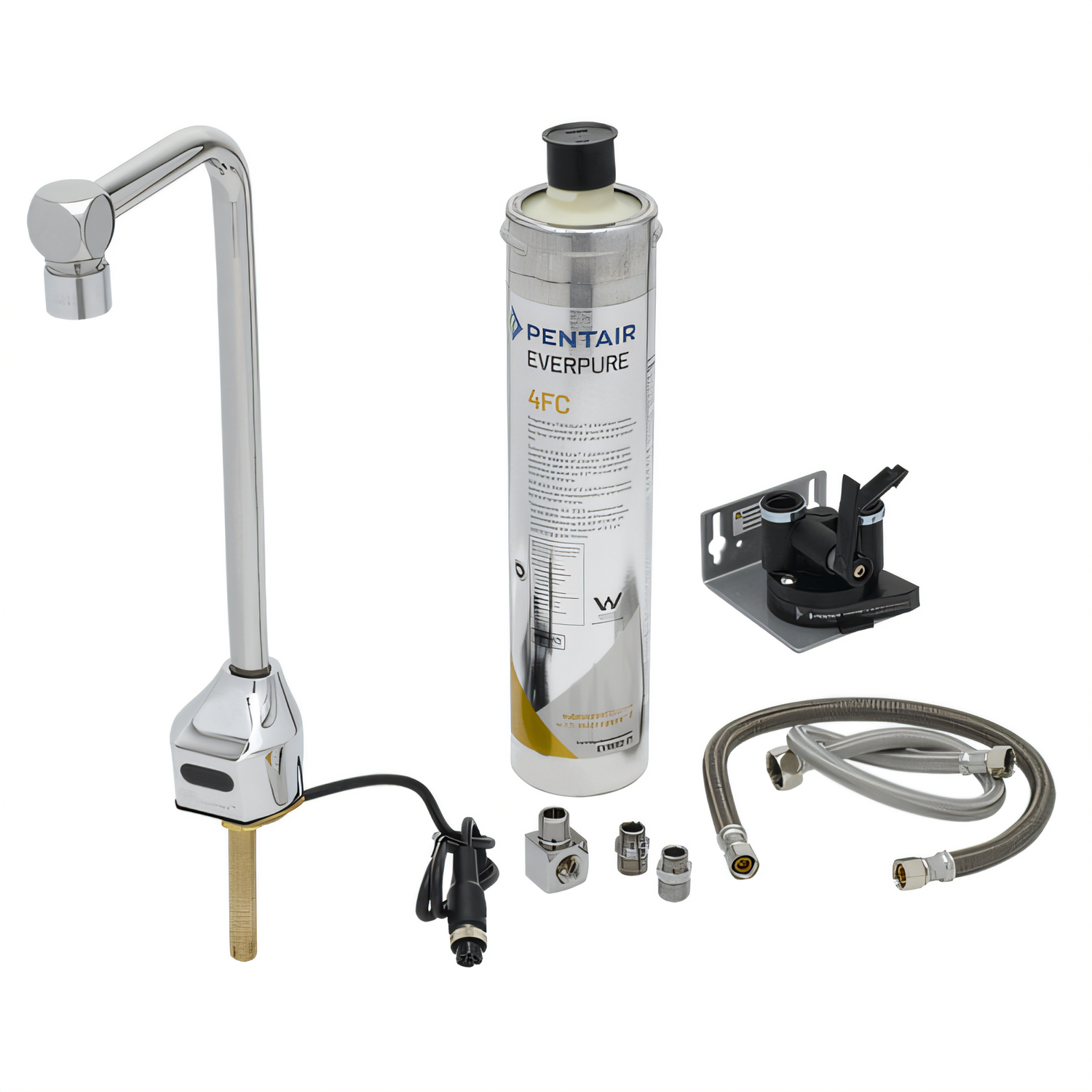

What’s in the Box

  • ChekPoint™ EC-1210-12 electronic sensor glass-filler assembly
  • ChekPoint™ control module with battery compartment
  • 100-240 VAC US-plug power adapter
  • B-WFK filtration kit: B-WFDS docking station & B-WFC cartridge
  • 18" stainless-steel inlet & connector hoses
  • Sensor cable, mounting gasket & anti-rotation pin
  • Vandal-resistant outlet key & installation guide

Ideal Applications

  • Cafés, coffee bars & quick-service restaurants
  • Back-bar glass filling/rinsing
  • Corporate breakrooms & office pantries
  • Healthcare hydration & nourishment stations

Powering multiple ChekPoint units? Add the optional EC-HARDWIRE transformer to drive up to eight faucets from a single AC source (sold separately).

Installation Tip: Leave at least 2 1⁄2" (64 mm) below the docking station so the filter cartridge can swing free during replacement.

Features & Specs

Manufacturer

T&S Brass

Brand_name

Chekpoint

Certifications

cULus, cCSAus, ADA Compliant

Wall or Deck Mount

deck mount

Spout / Nozzle Style

high arc

Faucet Centers

single hole centers

Lead Compliance

low lead

Finish

chrome finish

Spout / Nozzle Type

fixed / rigid

Specifications

ChekPoint™ Electronic Glass Filler with Water Filtration Kit, deck mount, rigid high-arc, 12"H, single hole, chrome-plated brass, AC/DC control module, internal flow control setting switches, vandal resistant laminar device with an anti-microbial coating, 1.5 GPM, low lead, cCSAus, cULus, ADA Compliant
