Description
ChekPoint™ EC-1210-10-WFK Electronic Glass Filler

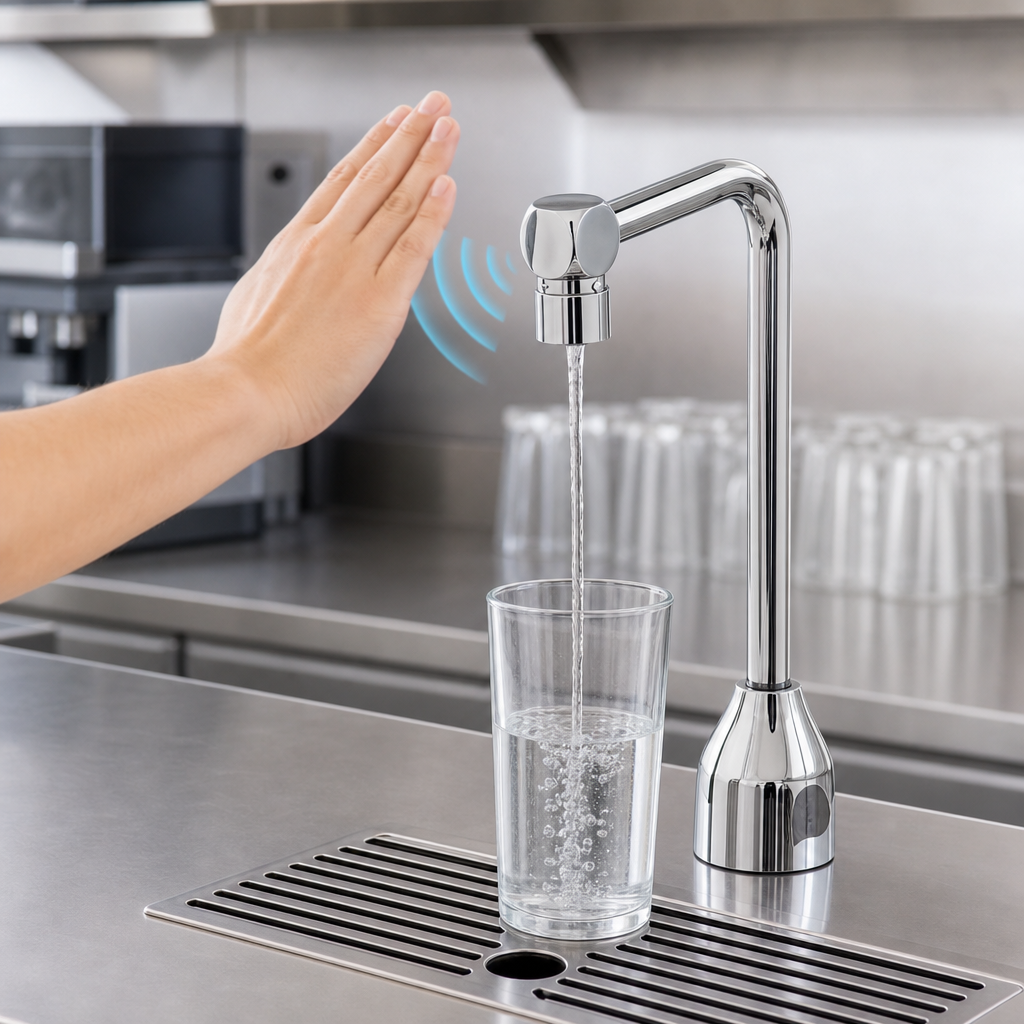

Touch-free deck-mount glass filler with integrated water filtrationBuilt for high-volume beverage stations, the ChekPoint™ EC-1210-10-WFK delivers hygienic, hands-free glass filling, superior water quality and unmatched installation flexibility—all in a durable chrome-plated brass package that meets the strictest safety and accessibility standards.
Key features
- 10" (254 mm) single-hole deck-mount body—fits a standard Ø1" (25 mm) mounting hole
- High-arc rigid spout with 4 5/8" outlet height & 11 13/16" overall height for extra clearance
- 1.5 GPM vandal-resistant laminar outlet with anti-microbial coating (Series 6, B-0199-06-LF15A)
- Water-resistant ChekPoint™ control module with on-board switches to adjust:
- Auto time-out (15 s – 20 min)
- Shut-off delay (1 s – 30 s)
- Optional 30-second auto-flush after 12 hours of inactivity
- Optional metering mode
- Dual-power capability: 100-240 VAC plug-in adapter or (4) AA batteries (included)
- Complete water filtration kit (B-WFK) with quick-change cartridge & docking station
- 20" (508 mm) flexible supply hose with 3/8" compression connection for fast hook-up
- Low-lead, polished chrome-plated brass construction backed by a 3-year limited warranty
Performance
| Flow rate | 1.5 GPM (5.7 L/min) @ 60 psi |
|---|---|
| Operating pressure | 20 – 125 psi (1.38 – 8.62 bar) |
| Water temperature | 40 °F – 140 °F (4.4 °C – 60 °C) |
| Power options | Plug-in AC adapter (100-240 VAC) or (4) AA batteries |
| Material | Polished chrome-plated brass body & spout |
| Certifications | ASME A112.18.1 / CSA B125.1, NSF 61 §9, NSF 372, UL 1951, ANSI A117.1 (ADA) |
| Model number | EC-1210-10-WFK |
| Warranty | 3-year limited |

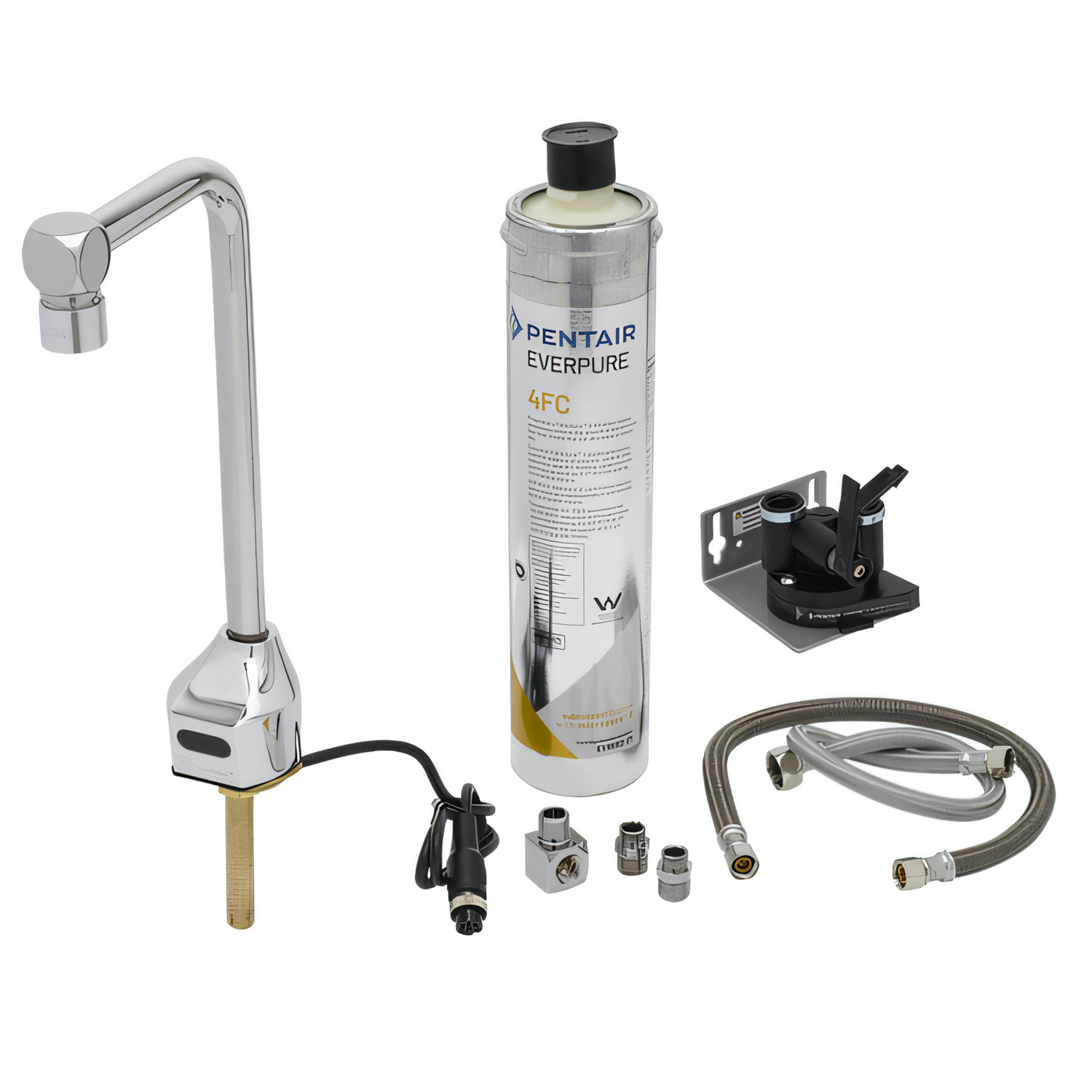

What’s in the box
- EC-1210-10-WFK electronic glass filler assembly
- ChekPoint™ control module with filter tee
- 100-240 VAC AC adapter (US plug)
- Water filtration kit (B-WFK) with docking station & replaceable cartridge
- 18" sensor cable & flexible stainless-steel connector hoses
- Vandal-resistant outlet key & mounting hardware
Replacement filter cartridge: B-WFC (order separately).
Note: Up to eight ChekPoint™ faucets can be hard-wired to a single EC-HARDWIRE transformer (sold separately).
Features & Specs
Features & Specs
Manufacturer
T&S Brass
Brand_name
Chekpoint
Certifications
cULus, cCSAus, ADA Compliant
Wall or Deck Mount
deck mount
Lead Compliance
low lead
Faucet Centers
single hole centers
Spout / Nozzle Style
high arc
Finish
chrome finish
Spout / Nozzle Type
fixed / rigid
Specifications
ChekPoint™ Electronic Glass Filler with Water Filtration Kit, deck mount, rigid high-arc, 10"H, single hole, chrome-plated brass, AC/DC control module, internal flow control setting switches, vandal resistant laminar device with an anti-microbial coating, 1.5 GPM, low lead, cCSAus, cULus, ADA Compliant
