T&S Brass

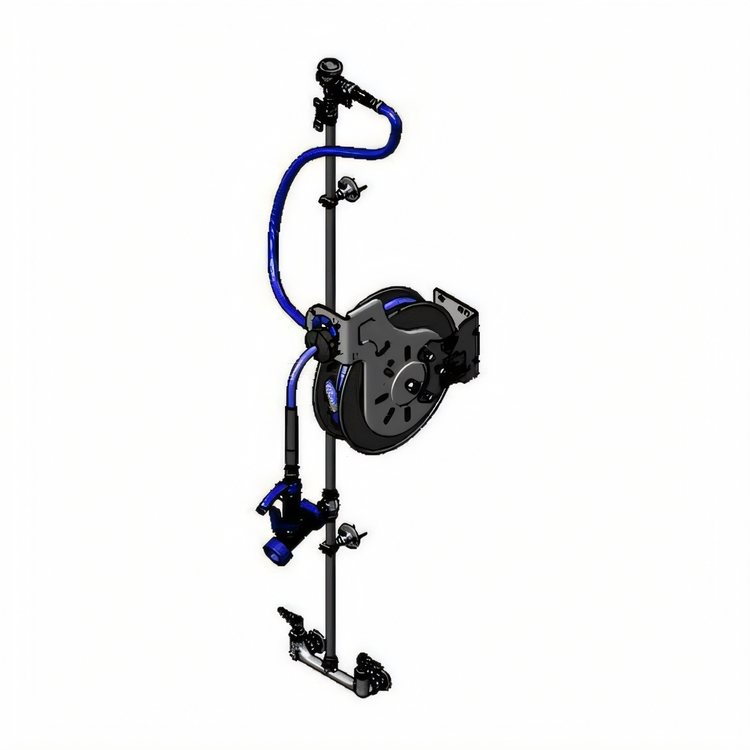

T&S Brass EasyInstall Open Wall-Mount Retractable Hose Reel Assembly with 35-Ft Hose, 8-Inch Mixing Faucet, and Front-Trigger Water Gun

SKU: B-7232-U05XS1E
GTIN: 671262815635
$2,210.57
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Cleaning, Janitorial & Facility Supplies Floor Care & Drainage Floor Maintenance New Arrivals Retractable Hose Reel T&S Brass

T&S Brass EasyInstall Open Wall-Mount Retractable Hose Reel Assembly with 35-Ft Hose, 8-Inch Mixing Faucet, and Front-Trigger Water Gun

Epoxy-Coated Steel Reel with Adjustable Centers and Ratcheting Retraction

This complete wall-mounted hose reel system combines a 35-foot retractable hose, 8-inch mixing faucet, and high-flow front-trigger water gun for efficient washdown use.

  • Open epoxy-coated steel reel with 35 ft. of 3/8" hose for everyday washdown tasks.
  • Ratcheting reel holds the hose at the desired length and retracts with a slight tug.
  • 8" wall-mount mixing faucet includes quarter-turn Eterna cartridges, spring checks, and lever handles.
  • Continuous-pressure vacuum breaker and flexible connector support safer water handling.
  • Adjustable centers from 7 3/4" to 8 1/4" with EasyInstall risers and wall brackets.
  • High-flow front-trigger water gun with swivel helps improve control during use.

Open Coated Hose Reel

Open-reel design with epoxy-coated steel construction for durability and easier access during service.

35-Foot Non-Marking Hose

Includes 3/8" heavy-duty hose rated to 300 PSI for demanding washdown applications.

Ratcheting Retraction System

Locks the hose at the pulled-out length and retracts automatically with a slight tug.

8-Inch Wall-Mount Mixing Faucet

Polished chrome-plated brass faucet body with quarter-turn Eterna compression cartridges, spring checks, and lever handles.

Adjustable Centers and EasyInstall Risers

Centers adjust from 7 3/4" to 8 1/4" and include 16" and 40" risers with wall brackets.

Continuous Pressure Vacuum Breaker

Includes a vacuum breaker with integral check valve to help protect the water supply.

Quick-Disconnect Connector

36" flexible water hose connector includes a stainless steel quick disconnect for easier installation and service.

High-Flow Front-Trigger Water Gun

Front-trigger spray gun with swivel and blue rubber cover for controlled application.

Multi-Fit Mounting Bracket

Multi-fit bracket supports wall, ceiling, or under-counter mounting options.

Type Retractable Hose Reel Assembly
Style Open
Installation Type Wall Mounted
Finish Epoxy Coated
Hose Length 35 Feet
Hose Diameter 3/8 Inch
Water Inlet Size 1/2 Inch NPT Female
Water Connection Required
Pressure Range 20 PSI to 125 PSI
Pressure Rating 300 PSI
Temperature Range 40 °F to 140 °F
Flow Rate 3.05 GPM @ 60 PSI
Shipping Weight 55 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited warranty; hose reel 2 years, hose 1 year.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It includes 35 feet of 3/8" hose.
It is an open coated hose reel.
The ratcheting system holds the hose at the desired length and retracts automatically with a slight tug.
The system includes an 8" wall-mount mixing faucet with quarter-turn Eterna cartridges, spring checks, lever handles, and 1/2" NPT female inlets.
The listed operating pressure range is 20 PSI to 125 PSI, with a temperature range of 40 °F to 140 °F.
The documentation states NSF 61 Exempt (Non-Potable), so it is intended for non-potable applications.
