T&S Brass

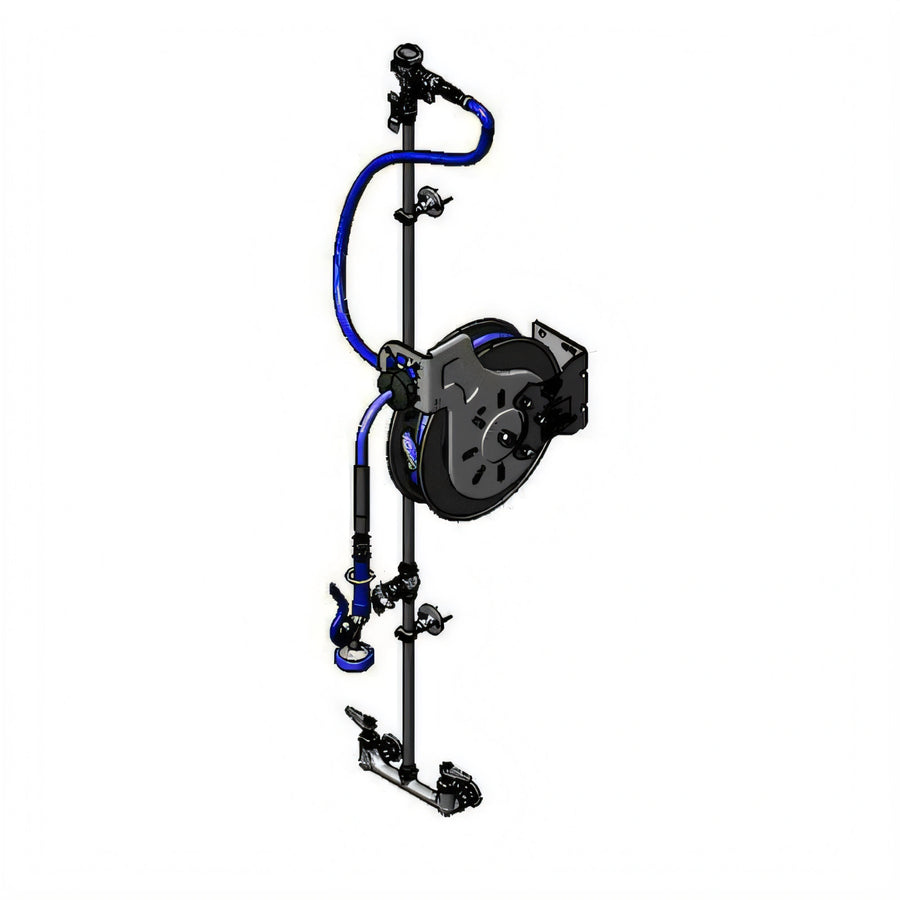

Open Wall-Mounted Retractable Hose Reel Assembly with 8-Inch Mixing Faucet and 35-Foot Hose

SKU: B-7232-U01XS2E
GTIN: 671262815598
$2,217.29
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Cleaning, Janitorial & Facility Supplies Floor Care & Drainage Floor Maintenance New Arrivals Retractable Hose Reel T&S Brass

Open Wall-Mounted Retractable Hose Reel Assembly with 8-Inch Mixing Faucet and 35-Foot Hose

3/8-Inch Hose, High-Flow Spray Valve, Ratcheting Retract System

This all-in-one hose reel system combines a retractable 35-foot hose, high-flow spray valve, and 8-inch mixing faucet to streamline commercial washdown tasks.

  • Complete system combines an open hose reel, mixing faucet, hose, and spray valve in one package.
  • 3/8-inch x 35-foot non-marking hose is built for demanding washdown use.
  • Ratcheting system holds the hose at the selected length and retracts with a slight tug.
  • 8-inch wall-mount mixing faucet features spring-check cartridges and lever handles.
  • Multi-fit bracket supports flexible mounting and helps simplify installation.
  • Continuous pressure vacuum breaker and in-line check valves support backflow protection.

Open Coated Hose Reel

Open epoxy-coated steel reel keeps the hose accessible and supports smooth retraction.

35-Foot Non-Marking Hose

3/8-inch heavy-duty hose is rated to 300 PSI for washdown applications.

Ratcheting Retract System

Locks the hose at the desired length and retracts automatically with a slight tug.

High-Flow Spray Valve

Swivel spray valve with a heat-resistant blue handle and hold-down ring for controlled rinsing.

8-Inch Wall-Mount Mixing Faucet

Polished chrome-plated brass body with adjustable centers and 1/2-inch NPT female inlets.

Spring-Check Cartridges

Quarter-turn Eterna compression cartridges with spring checks help prevent cross flow of water.

Lever Handles

Color-coded indexes make hot and cold identification quick and easy.

Backflow Protection

Continuous pressure vacuum breaker and in-line check valves are provided for the water line.

Flexible Connector and Risers

36-inch flexible water hose connector with stainless steel quick disconnect, plus 16-inch EasyInstall and rigid 40-inch risers.

Multi-Fit Mounting Hardware

Bracket supports wall, ceiling, or under-counter mounting; adjustable hose bumper helps protect the hose.

Type Retractable Hose Reel Assembly
Style Open
Installation Type Wall Mounted
Material Steel
Finish Epoxy Coated
Hose Length 35 Feet
Hose Diameter 3/8 Inch
Pressure Rating 300 PSI
Water Inlet Size 1/2 Inch NPT Female
Flow Rate 3.70 GPM @ 60 PSI
Temperature Range 40 °F to 140 °F
Shipping Weight 55 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

2-year limited on reel/product; 1-year limited on hose

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It is an open coated hose reel assembly.
The reel uses a 3/8-inch x 35-foot hose.
The ratcheting system holds the hose at the selected length and retracts it with a slight tug.
The system uses an 8-inch wall-mount mixing faucet with quarter-turn Eterna compression cartridges, spring checks, lever handles, a continuous pressure vacuum breaker, and adjustable centers.
The multi-fit bracket supports wall, ceiling, or under-counter mounting.
Documentation lists a 2-year limited warranty for the reel/product and a 1-year limited warranty for the hose.
