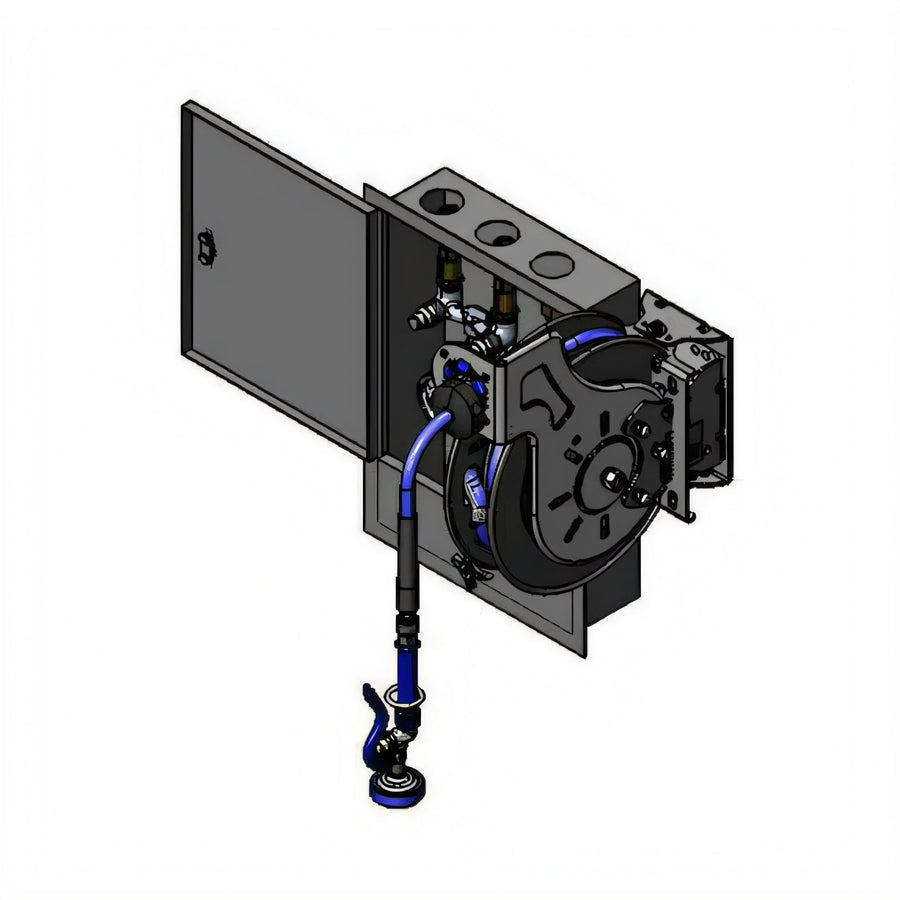

Retractable Hose Reel Assembly with Stainless Steel Water Control Cabinet, Open Coated Reel, 35-Foot Hose, Wall Mount

Includes manual mixing valve, dual check valves, thermometer, vacuum breaker, and adjustable hose bumper

A complete wall-mounted hose reel system that combines water control, backflow protection, and a 35-foot retractable hose for efficient rinsing.

  • Complete hose reel and water control system for rinse applications
  • Open coated reel with 35' x 3/8" non-marking hose and ratcheting retraction
  • High-flow spray valve with swivel for fast, controlled rinsing
  • Stainless steel cabinet with mixing valve, thermometer, shut-off valve, and dual check valves
  • Vacuum breaker and water hammer arrestor help protect the water supply
  • Wall-mount swing bracket with multi-fit installation flexibility; ASSE certified and NSF 61 exempt

Flush-Mount Stainless Steel Control Cabinet

Locking-latch cabinet houses the water control system in a durable stainless steel enclosure.

Manual Mixing and Shut-Off Controls

Includes a loose key mixing valve with compression spindles, a shut-off valve, and dual check valves.

Built-In Safety Protection

Continuous-pressure vacuum breaker and water hammer arrestor add protection for the supply line.

Bi-Metallic Thermometer

3" dial thermometer provides quick temperature checks at a glance.

Open Coated Hose Reel and Spray Valve

Open reel includes a 35' x 3/8" heavy-duty non-marking hose and a high-flow spray valve with swivel.

Ratcheting Hose Retraction

Ratcheting system holds the hose at the desired length until a slight tug releases it for automatic retraction.

Wall-Mount Hardware

Includes an EasyInstall stainless steel wall-mount swing bracket, 6" wall bracket, and adjustable hose bumper.

Multi-Fit Mounting Options

Bracket design supports wall, ceiling, or under-counter installation.

Compliance and Water Use

Certified to ASSE 1010, ASSE 1024, and ASSE 1056; NSF 61 exempt for non-potable applications.

Type Hose Reel Assembly
Style Open
Installation Type Wall Mounted
Material Stainless Steel
Finish Coated Steel
Controls Manual
Hose Diameter 3/8 Inch
Hose Length 35 Feet
Pressure Range 20 to 125 PSI
Maximum Pressure 300 PSI
Temperature Range 40 to 140 Degrees F
Flow Rate 3.48 GPM @ 60 PSI
Shipping Weight 55 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited warranty; hose carries a separate 1-year warranty.

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It includes a stainless steel water control cabinet, open coated hose reel, 35' x 3/8" hose, high-flow spray valve with swivel, vacuum breaker, wall bracket, and adjustable hose bumper.
The ratcheting system holds the hose at the selected length until a slight tug releases it for automatic retraction.
The assembly includes dual check valves, a continuous-pressure vacuum breaker, and a water hammer arrestor.
Yes. The included bracket is noted for wall, ceiling, or under-counter mounting, and the product also uses a stainless steel wall-mount swing bracket.
Yes. Optional hose reel spray valves listed in the documentation include B-0107, B-0108, B-0108-H, EB-0107, EB-2322, MV-2516-24, MV-2522-24, and MV-3516-24.
Documentation states a limited warranty, with the hose covered separately for one year. The instruction sheet says the product is covered for two years except the hose, while the submittal sheet also notes a 1-year limited warranty and a 2-year limited warranty on the hose reel.
