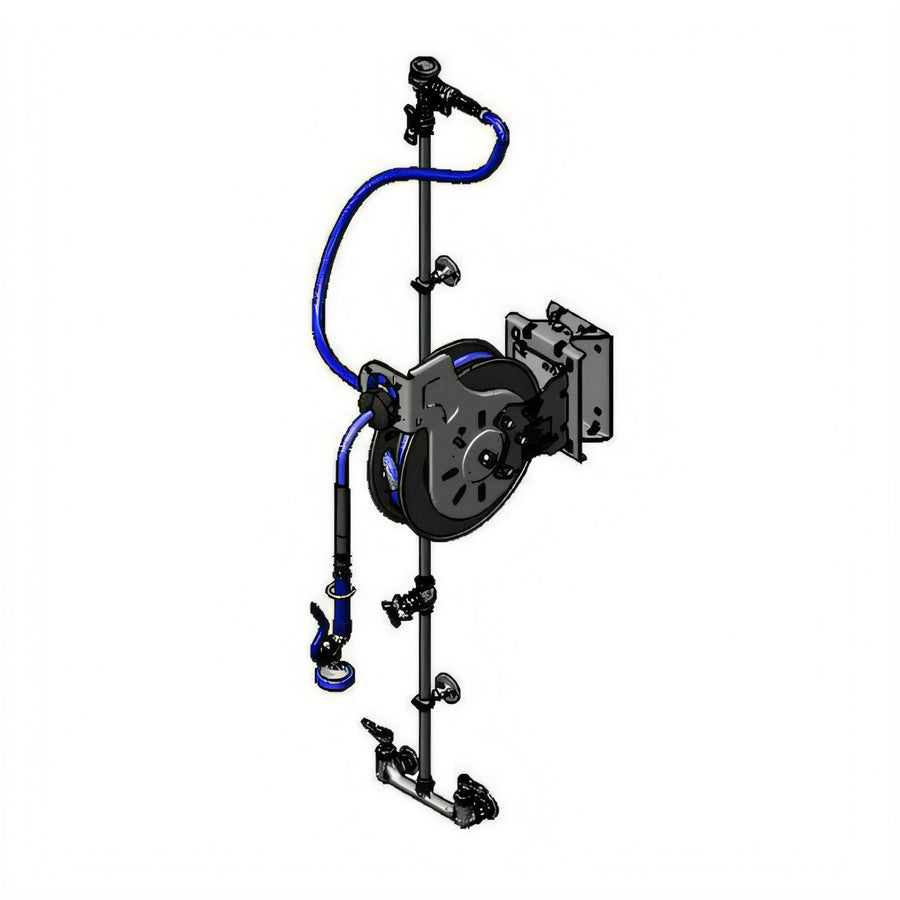

T&S Brass Open Wall-Mount Retractable Hose Reel System with 35-Ft Hose, Mixing Faucet, and High-Flow Spray Valve

3/8 In. Hose, Epoxy-Coated Steel Reel, Multi-Fit Bracket

This all-in-one hose reel system combines a 35-foot retractable hose, wall-mount mixing faucet, and high-flow spray valve for efficient washdown and utility use.

  • Complete hose reel system with exposed piping, faucet, vacuum breaker, check valves, and spray valve
  • 35-ft x 3/8-in heavy-duty non-marking hose on an open coated steel reel
  • Ratcheting retraction system holds hose at the desired length until a slight tug retracts it
  • 8-in wall-mount mixing faucet with quarter-turn Eterna cartridges, spring checks, and lever handles
  • 36-in flexible hose connector with stainless steel quick disconnect for easier service
  • Multi-fit bracket and swing bracket support flexible wall, ceiling, or under-counter installation
  • Adjustable hose bumper and durable epoxy-coated reel construction

Open Coated Hose Reel

Open epoxy-coated steel reel includes 35 ft. of 3/8 in. hose for extended reach.

High-Flow Spray Valve with Swivel

Includes a spray valve with swivel action and hold-down ring for efficient washdown use.

Wall-Mount Mixing Faucet

8 in. wall-mount faucet with polished chrome-plated brass body and color-coded lever handles.

Quarter-Turn Cartridges with Spring Checks

Eterna compression cartridges help prevent cross-flow and provide smooth shutoff.

Continuous Pressure Vacuum Breaker

Built-in vacuum breaker and check valves support backflow protection in the water line.

Flexible Water Hose Connector

36 in. flexible connector with stainless steel quick disconnect simplifies hookup and service.

Ratcheting Hose Control

Ratchet lock holds the hose at the set length and releases with a slight tug.

Adjustable, EasyInstall Mounting

Multi-fit bracket, stainless steel swing bracket, and wall brackets support flexible mounting options.

Adjustable Faucet Centers

Faucet centers adjust from 7 3/4 in. to 8 1/4 in. for easier installation.

Heavy-Duty Hose Rating

Hose kit is rated to 300 PSI for demanding washdown applications.

Type Complete Hose Reel System
Style Open
Installation Type Wall Mounted
Hose Length 35 Feet
Hose Diameter 3/8 Inch
Material Steel
Finish Epoxy Coated
Handle Type Lever
Water Inlet Size 1/2 Inch NPT Female
Flow Rate 3.70 GPM @ 60 PSI
Temperature Range 40 °F - 140 °F
Selling Unit Each
Units Per Case 1

Warranty & Protection

2-year limited; hose 1-year limited

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It includes a 35-foot long, 3/8-inch hose.
This model uses an open coated hose reel.
The multi-fit bracket and swing bracket support wall, ceiling, or under-counter mounting.
Yes. It includes a continuous pressure vacuum breaker and (2) 1/2 in. NPT check valves.
It includes an 8 in. wall-mount mixing faucet with quarter-turn Eterna compression cartridges and lever handles.
