T&S Brass

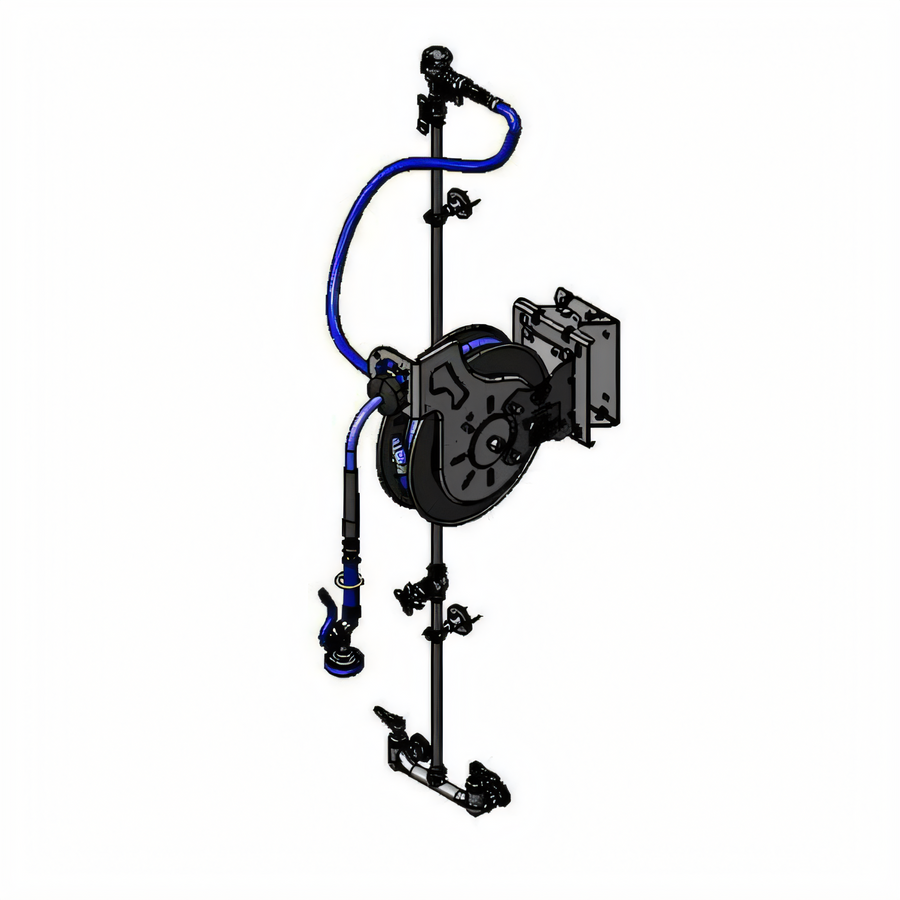

Open Wall-Mounted Retractable Hose Reel Assembly with 35-Foot Hose and 8-Inch Mixing Faucet

SKU: B-7232-U01WS1E
GTIN: 671262815529
$2,245.32
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Floor Maintenance New Arrivals Retractable Hose Reel T&S Brass

Open Wall-Mounted Retractable Hose Reel Assembly with 35-Foot Hose and 8-Inch Mixing Faucet

Epoxy-Coated Steel Reel, High-Flow Spray Valve, and Vacuum Breaker

Built for demanding wash-down work, this all-in-one wall-mounted system pairs a 35-foot retractable hose with a mixing faucet, spray valve, and safety components for a cleaner, faster setup.

  • Open coated hose reel assembly with 35 feet of 3/8-inch hose.
  • 8-inch wall-mount mixing faucet with quarter-turn Eterna cartridges, spring checks, and lever handles.
  • Ratcheting retraction system locks the hose at length and retracts with a slight tug.
  • Continuous pressure vacuum breaker and stainless steel quick disconnect support safer, easier service.
  • EasyInstall stainless steel swing bracket provides 100° rotation and includes mounting hardware.
  • Heavy-duty non-marking hose is rated to 300 PSI, with an operating pressure range of 20 to 125 psi.

All-In-One Hose Reel System

Combines an open coated hose reel, high-flow spray valve, vacuum breaker, flexible connector, and wall-mount mixing faucet in one assembly.

35-Foot 3/8-Inch Hose

Includes a heavy-duty non-marking hose designed for reliable use and rated to 300 PSI.

Ratcheting Retract Function

Holds the hose at the desired length until a slight tug releases it for automatic rewind.

8-Inch Wall-Mount Mixing Faucet

Features a polished chrome-plated brass body, quarter-turn Eterna compression cartridges with spring checks, lever handles, color-coded indexes, and adjustable centers.

EasyInstall Swing Bracket

Stainless steel wall-mount swing bracket provides 100° of rotation and includes mounting hardware.

Quick-Disconnect Service Connection

The 36-inch flexible water hose connector with stainless steel quick disconnect simplifies installation and maintenance.

Backflow Protection

Continuous pressure vacuum breaker with integral check valve helps protect the water line.

Multi-Fit Mounting Hardware

Includes wall brackets and an adjustable hose bumper for flexible installation and hose management.

Type Retractable Hose Reel Assembly
Style Open
Installation Type Wall Mounted
Material Steel
Finish Epoxy Coated
Hose Length 35 Feet
Hose Diameter 3/8 Inch
Pressure Rating 300 PSI
Pressure Range 20 to 125 PSI
Temperature Range 40 to 140 Degrees F
Flow Rate 3.70 GPM @ 60 PSI
Water Inlet Size 1/2 Inch NPT Female
Selling Unit Each
Units Per Case 1
Shipping Weight 55 Pounds

Warranty & Protection

Two-year limited warranty on the hose reel; one-year limited warranty on the hose.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It includes an open coated hose reel with 35 feet of 3/8-inch hose, a high-flow spray valve with swivel, a continuous pressure vacuum breaker, a 3/8-inch NPT flexible water connector, an 8-inch wall-mount mixing faucet, a control valve, and an EasyInstall stainless steel swing bracket with mounting hardware.
It is an open coated hose reel assembly.
The hose is 3/8 inch x 35 feet and is rated to 300 PSI.
The performance data lists 20 to 125 psi operating pressure and 40 to 140°F temperature range.
The hose reel carries a two-year limited warranty, and the hose carries a one-year limited warranty.
