T&S Brass Open Epoxy-Coated Wall-Mount Hose Reel Assembly with 3/8 Inch x 15 Foot Hose, Mixing Faucet and Spray Valve

Complete washdown system with brass body faucet, vacuum breaker, and multi-fit bracket

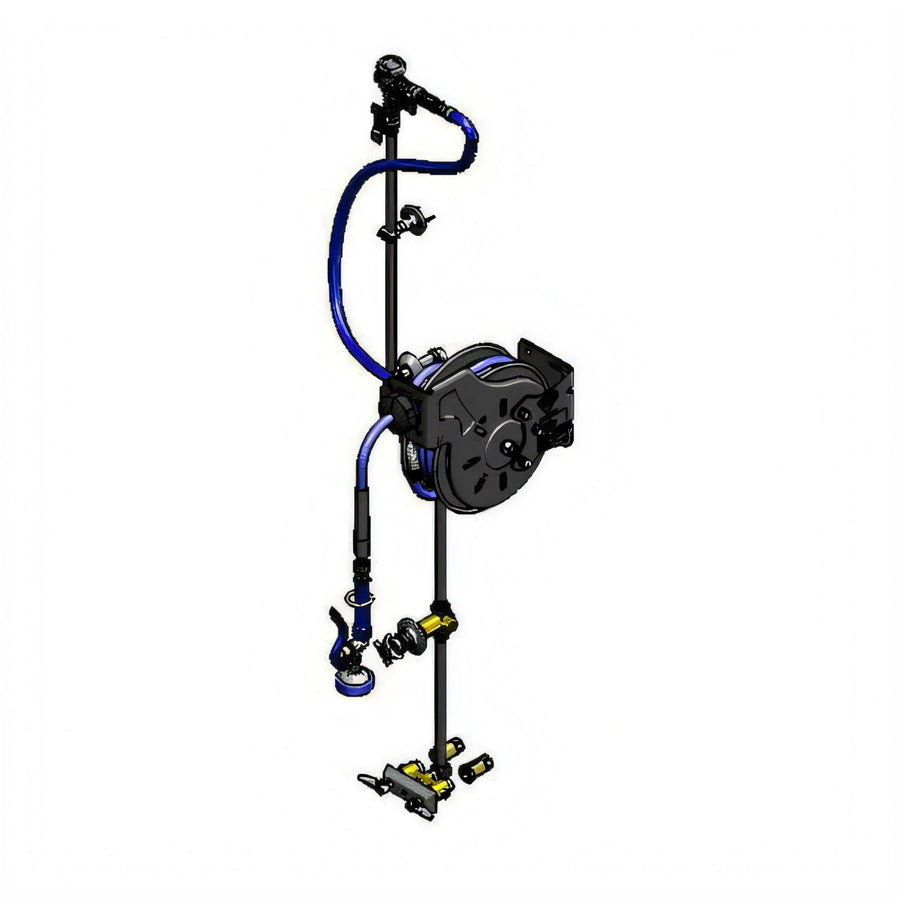

This complete washdown station combines a retractable hose reel, mixing faucet, and spray valve in one space-saving wall-mount assembly.

  • Open epoxy-coated metal reel with a 3/8 inch x 15 foot heavy-duty non-marking hose.
  • High-flow spray valve with swivel and hold-down ring for easier rinsing and hose control.
  • 3 inch concealed wall-mount mixing faucet with brass body, Eterna compression cartridges, and color-coded lever handles.
  • Includes in-line check valves, a continuous pressure vacuum breaker, and a 36 inch flexible water hose connector with stainless steel quick disconnect.
  • Ratcheting retraction system holds the hose at the desired length until it is tugged back.
  • Multi-fit bracket and adjustable hose bumper help support flexible installation and hose management.

Product Weight:

49.35 lb

Open Hose Reel Design

Open coated metal reel keeps the hose accessible for quick use and easier servicing.

3/8 Inch x 15 Foot Hose

Heavy-duty non-marking hose is sized for washdown use and rated to 300 PSI.

High-Flow Spray Valve

Includes a high-flow spray valve with swivel and hold-down ring for controlled spraying and easier maneuvering.

Concealed Mixing Faucet

3 inch wall-mount mixing faucet includes a brass body, Eterna compression cartridges, and lever handles with color-coded indexes.

Backflow Protection

(2) 1/2 inch NPT in-line check valves and a continuous pressure vacuum breaker help protect the water supply.

Flexible Connection Package

Features a 3/8 inch NPT x 36 inch flexible water hose connector with stainless steel quick disconnect for easier hookup and service.

Ratcheting Hose Control

Ratcheting system, adjustable hose bumper, and multi-fit bracket help manage hose extension and retraction.

Exposed Piping Assembly

Includes 12 inch and (2) 22 inch risers with a concealed control valve between risers and a 2-3/8 inch wall bracket.

Type Complete Hose Reel System
Style Open
Installation Type Wall Mounted
Hose Diameter 3/8 Inch
Hose Length 15 Feet
Finish Epoxy Powder Coated
Pressure Range 20 to 125 PSI
Temperature Range 40 °F to 140 °F
Flow Rate 2.79 GPM at 60 PSI
Maximum Pressure 300 PSI
Selling Unit Each
Units Per Case 1

Warranty & Protection

One-Year Limited

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It includes an open coated hose reel, 3/8 inch x 15 foot hose, high-flow spray valve with swivel, concealed mixing faucet, check valves, vacuum breaker, flexible hose connector, risers, wall bracket, and adjustable hose bumper.
The assembly uses a 3/8 inch diameter hose that is 15 feet long.
The multi-fit bracket supports wall, ceiling, or under-counter mounting, and the reel is shown as a wall-mount unit.
The submittal lists a pressure range of 20 to 125 PSI, a temperature range of 40 °F to 140 °F, and a hose pressure rating of 300 PSI.
The submittal lists a one-year limited warranty for the complete assembly, a two-year limited warranty for the hose reel, and a one-year limited warranty for the hose.
