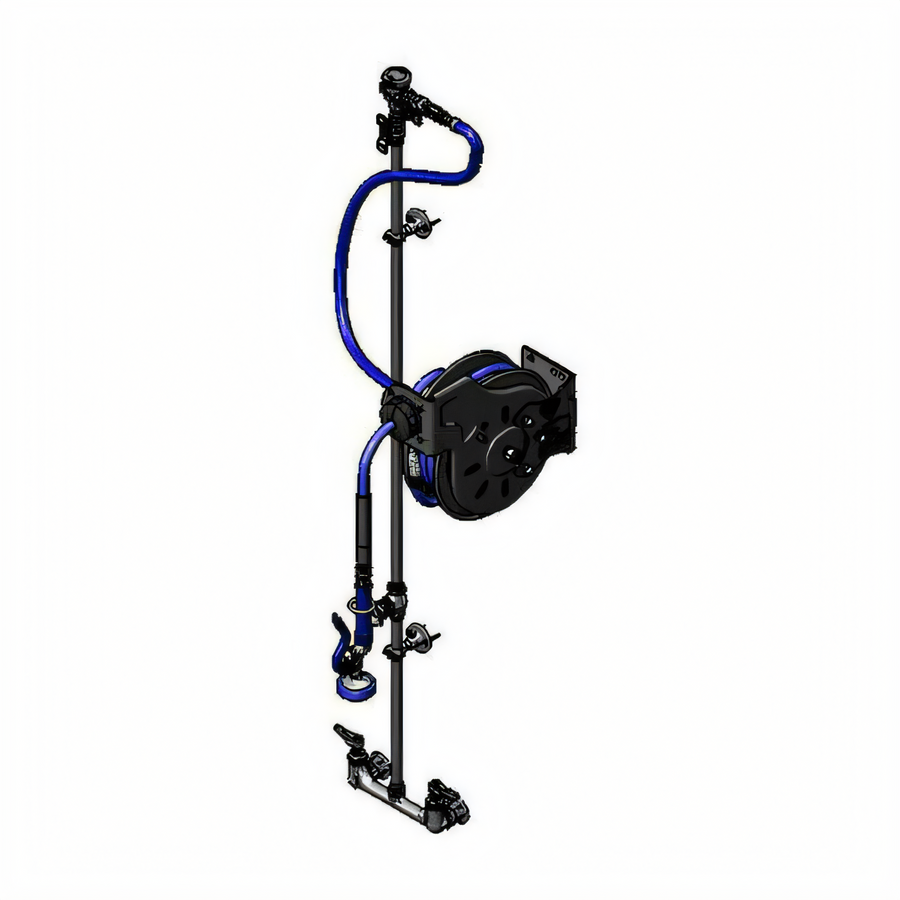

T&S Brass Open Wall-Mount Retractable Hose Reel Assembly with 8-Inch Mixing Faucet and 15-Foot Hose

SKU: B-7212-U01XS1E
GTIN: 671262815482
$1,870.77
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Floor Maintenance New Arrivals Retractable Hose Reel T&S Brass

T&S Brass Open Wall-Mount Retractable Hose Reel Assembly with 8-Inch Mixing Faucet and 15-Foot Hose

3/8-Inch Hose, Stainless Steel Reel, High-Flow Spray Valve

A complete, ready-to-install hose reel solution that combines a durable stainless steel reel, mixing faucet, and retractable 15-foot hose in one system.

  • Complete open hose reel system with exposed piping, accessories, and wall-mount faucet.
  • 3/8-inch x 15-foot heavy-duty non-marking hose rated to 300 PSI.
  • Ratcheting reel holds the hose at length until a light tug retracts it automatically.
  • 8-inch wall-mount mixing faucet includes lever handles, spring checks, and quick-disconnect connection.
  • Multi-fit bracket supports wall, ceiling, or under-counter mounting.
  • Includes a continuous pressure vacuum breaker and adjustable hose bumper.

Open Coated Hose Reel Assembly

Exposed piping and accessories create a complete system that is easier to install and service.

8-Inch Wall-Mount Mixing Faucet

Polished chrome-plated brass faucet body with 1/2-inch NPT female inlets and adjustable 7-3/4 to 8-1/4 inch centers.

Quarter-Turn Eterna Compression Cartridges

Spring checks help prevent cross flow of water, and lever handles include color-coded indexes.

3/8-Inch x 15-Foot Heavy-Duty Hose

Non-marking hose rated to 300 PSI for demanding cleaning applications.

High-Flow Blue Spray Valve

Swivel spray valve with heat-resistant handle and hold-down ring for efficient rinsing.

Ratcheting Retract System

Locks the hose at the selected length until a slight tug releases it for automatic rewind.

Continuous Pressure Vacuum Breaker

Helps protect the water supply while supporting safe operation.

Multi-Fit Mounting Hardware

Includes a multi-fit bracket, wall brackets, and an adjustable hose bumper for flexible installation.

Type Retractable Hose Reel Assembly
Style Open
Installation Type Wall Mounted
Material Stainless Steel
Finish Stainless Steel
Handle Type Lever
Nozzle Type High Flow Spray Valve
Hose Diameter 3/8 Inch
Hose Length 15 Feet
Hose Pressure Rating 300 PSI
Water Inlet Size 1/2 Inch NPT Female
Flow Rate 3.70 GPM @ 60 PSI
Operating Pressure 20 to 125 PSI
Temperature Range 40°F to 140°F
Shipping Weight 55 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

2-year limited warranty on the hose reel; 1-year limited warranty on the hose.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It includes a 3/8-inch x 15-foot heavy-duty non-marking hose rated to 300 PSI.
The ratcheting system holds the hose at the selected length until a slight tug allows it to retract automatically.
The multi-fit bracket supports wall, ceiling, or under-counter mounting, and the reel can also be positioned wall mounted, base down, or base up.
The assembly includes an 8-inch wall-mount mixing faucet with 1/2-inch NPT female inlets and a 36-inch flexible water hose connector with stainless steel quick disconnect.
The system is rated for 20 to 125 psi, 40°F to 140°F, and a flow rate of 3.70 GPM at 60 psi.
The product has a one-year limited warranty overall, the hose reel has a two-year limited warranty, and the hose has a one-year limited warranty.
