T&S Brass

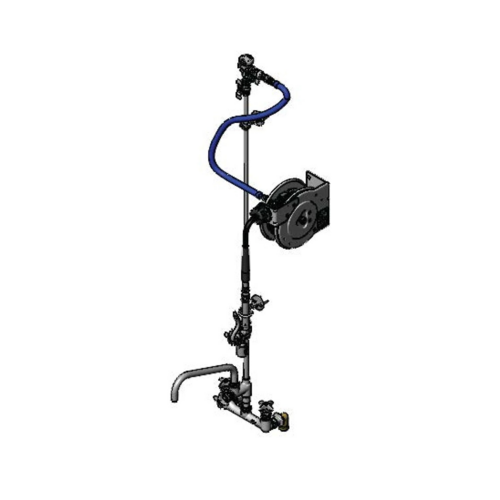

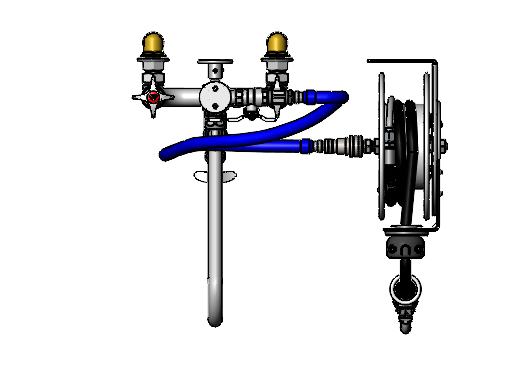

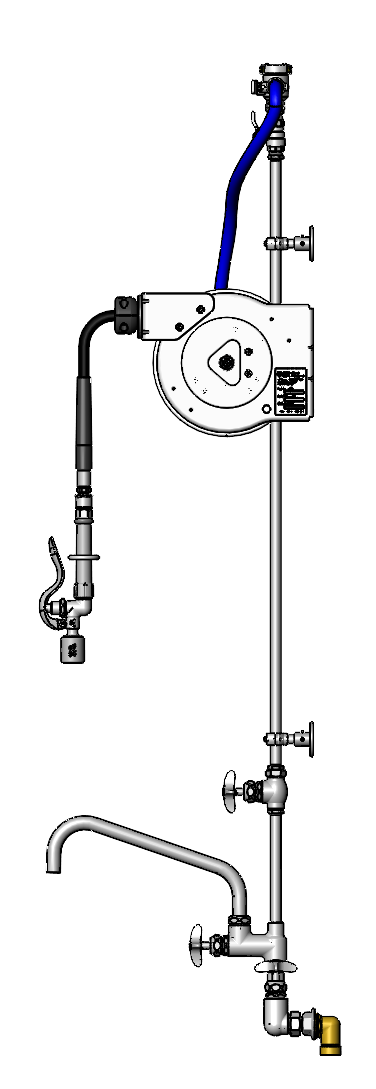

T&S Brass Open Stainless Steel Wall-Mount Retractable Hose Reel Assembly with Mixing Faucet and 12-Foot Hose

SKU: B-7102-U1CXS12X
GTIN: 671262915809‌
$2,519.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Cleaning, Janitorial & Facility Supplies Floor Care & Drainage Floor Maintenance New Arrivals Retractable Hose Reel T&S Brass

T&S Brass Open Stainless Steel Wall-Mount Retractable Hose Reel Assembly with Mixing Faucet and 12-Foot Hose

8-Inch Big-Flo Faucet, 0.65 GPM Spray Valve, and Ratcheting Retract System

This complete wall-mounted hose reel system combines a mixing faucet, stainless steel reel, and 12-foot hose into one durable, all-in-one washdown solution.

  • Complete hose reel assembly with exposed piping, faucet components, and reel hardware in one system.
  • Open stainless steel reel with 3/8-inch x 12-foot non-marking hose and automatic ratcheting retraction.
  • 8-inch wall-mount Big-Flo mixing faucet with polished chrome plated brass body and 4-arm handles.
  • Includes a 0.65 GPM low-flow spray valve, quick-disconnect connector, vacuum breaker, and adjustable hose bumper.
  • Multi-fit bracket supports wall, ceiling, or under-counter mounting.
  • Certified to ASSE 1056 and compliant with 2019 DOE PRSV Class I.

All-In-One System

Complete exposed-piping hose reel system packaged with faucet, reel, hose, and mounting components.

Wall-Mount Big-Flo Mixing Faucet

8-inch wall-mount mixing faucet with polished chrome plated brass body and large-flow compression cartridges.

Add-On Swing Spout

Includes a 12-inch plain-end swing nozzle for extended reach.

Open Stainless Steel Hose Reel

Open reel construction with stainless steel housing for durable commercial use.

Ratcheting Retract System

Holds the hose at length until a slight tug retracts it automatically.

Heavy-Duty Hose And Spray Valve

Includes a 3/8-inch x 12-foot heavy-duty non-marking hose and 0.65 GPM low-flow spray valve with swivel and hold-down ring.

Quick-Disconnect Water Connection

36-inch flexible water hose connector with stainless steel quick disconnect.

Safety And Backflow Protection

Includes a continuous pressure vacuum breaker for added protection.

Flexible Mounting Bracket

Multi-fit bracket supports wall, ceiling, or under-counter mounting.

Compliance

Certified to ASSE 1056 and compliant with 2019 DOE PRSV Class I.

Type Retractable Hose Reel Assembly
Style Open
Installation Type Wall Mounted
Material Stainless Steel
Water Inlet Size 3/4 Inch NPT Female
Hose Diameter 3/8 Inch
Hose Length 12 Feet
Handle Type 4-Arm
Flow Rate 0.65 GPM
Pressure Range 20 to 125 PSI
Temperature Range 40 to 140 °F
Shipping Weight 55 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

One year limited warranty on the system; two year limited warranty on the hose reel; one year limited warranty on the hose.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It includes a 3/8-inch x 12-foot heavy-duty non-marking hose.
The assembly includes a 0.65 GPM low-flow spray valve with swivel and hold-down ring.
It includes an 8-inch wall-mount Big-Flo mixing faucet with a polished chrome plated brass body and a 12-inch plain-end swing spout.
Yes. The multi-fit bracket supports wall, ceiling, or under-counter mounting.
The complete system has a one year limited warranty, the hose reel has a two year limited warranty, and the hose has a one year limited warranty.
