T&S Brass B-5125-CR-B8TP EasyInstall DuraPull Commercial Faucet...
Description

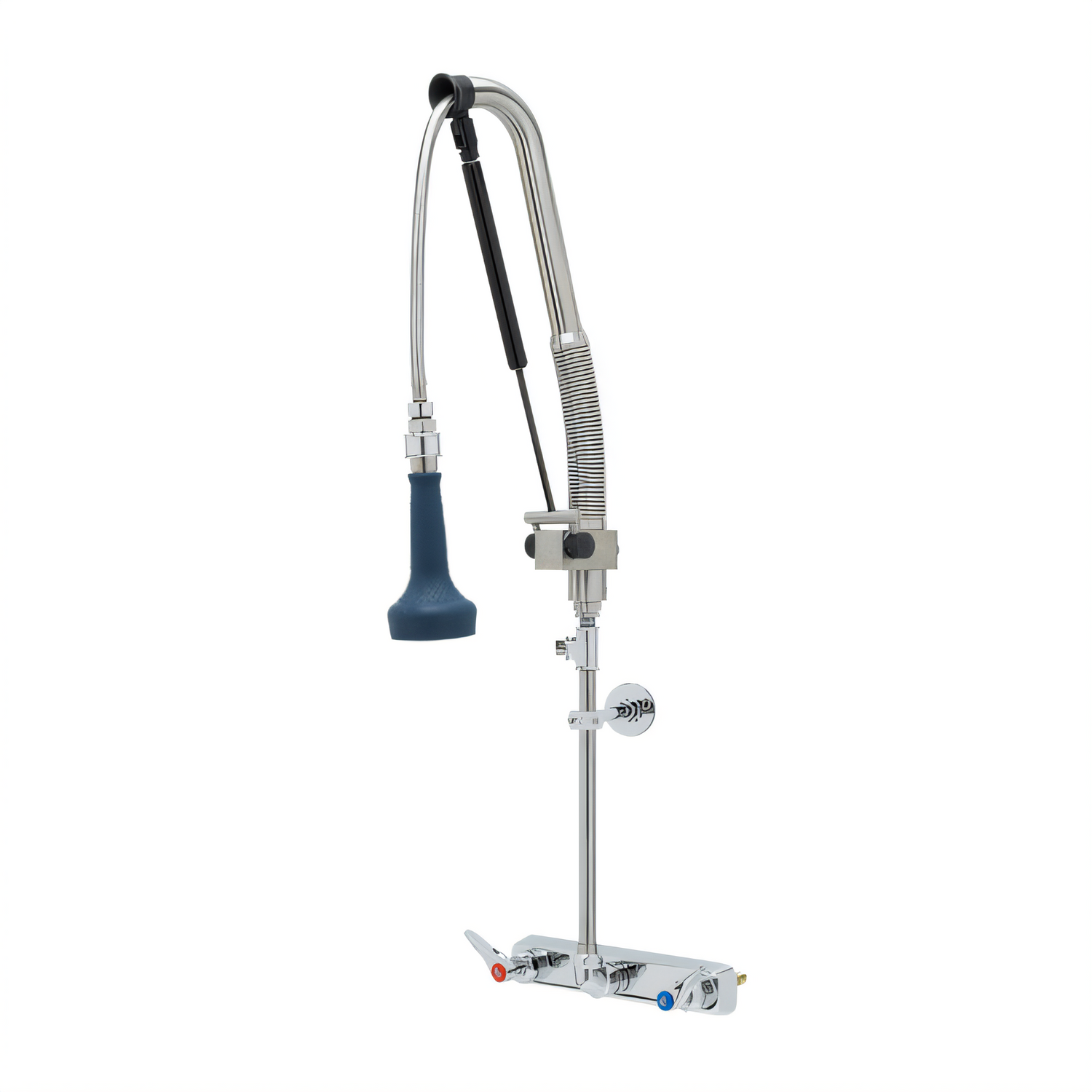

T&S EasyInstall DuraPull™ Pull-Down Pre-Rinse Unit
Model B-5125-CR-B8TP | 8" Wall-Mount Workboard FaucetBuilt for speed on the install and strength on the line, the EasyInstall DuraPull bundles T&S Brass reliability with a water-saving 1.07 GPM spray valve and a labor-saving pre-assembled mounting kit. Less time under the sink—more time keeping dishes moving.
Key Advantages
- Factory-installed EasyInstall hardware slashes install time—just tighten, connect and go.
- 1.07 GPM spray valve with automatic shut-off exceeds 2019 DOE PRSV Class II efficiency requirements.
- 30" stainless braided hose with spring & air-cylinder counterbalance delivers smooth, fatigue-free pull-down action.
- Quarter-turn Cerama cartridges with integrated check valves extend service life and stop cross-flow.
- Lever handles with color-coded indexes are glove-friendly and ADA compliant.
- 3/8" NPT rigid accessory tee makes adding glass fillers or chemical dispensers a snap.
- Lead-free brass construction—NSF/ANSI 61 & 372 certified for potable water safety.
Technical Specifications
| Model / Part No. | B-5125-CR-B8TP (EasyInstall DuraPull) |
|---|---|
| Mounting Style | Wall mount, 8" (203 mm) centers |
| Inlet Connection | 1/2" NPT male (pair); 1/4" NPT tailpieces & nuts included |
| Faucet Body | Workboard mixing faucet, brass |
| Handles | Lever, quarter-turn, color-coded (red/blue) |
| Cartridges | Cerama (ceramic) with integral check valves |
| Riser | 12" (305 mm) • 3/8" NPT |
| Hose Length | 30" (762 mm) stainless braided with spring guard |
| Spray Valve Flow Rate | 1.07 GPM (4.05 L/min) @ 60 psi |
| Overall Height | 36 1/16" (916 mm) |
| Wall Bracket | 6" (152 mm) adjustable support included |
| Operating Pressure | 20 – 125 psi (1.4 – 8.6 bar) |
| Max Water Temp. | 200 °F (93 °C) |
| Compliance | ASME A112.18.1 / CSA B125.1, NSF/ANSI 61, NSF/ANSI 372, 2019 DOE PRSV Class II |
| Warranty | 1-year limited manufacturer warranty |
What’s in the Box
- Pre-assembled wall-mount faucet with 8" centers
- 12" riser
- 30" pull-down stainless hose with spring & air cylinder
- 1.07 GPM spray valve with swivel & automatic shut-off
- 6" wall support bracket
- 3/8" NPT rigid accessory tee
- EasyInstall kit (lock nut, bushing, O-ring, washers)
- 1/4" NPT tailpieces & nuts (optional connection)
- Installation & service instructions
Looking for a different spray pattern? All standard T&S spray valves are interchangeable and sold separately.
Engineered and manufactured by T&S Brass in Travelers Rest, SC for uncompromising performance in the busiest commercial kitchens.
