Description

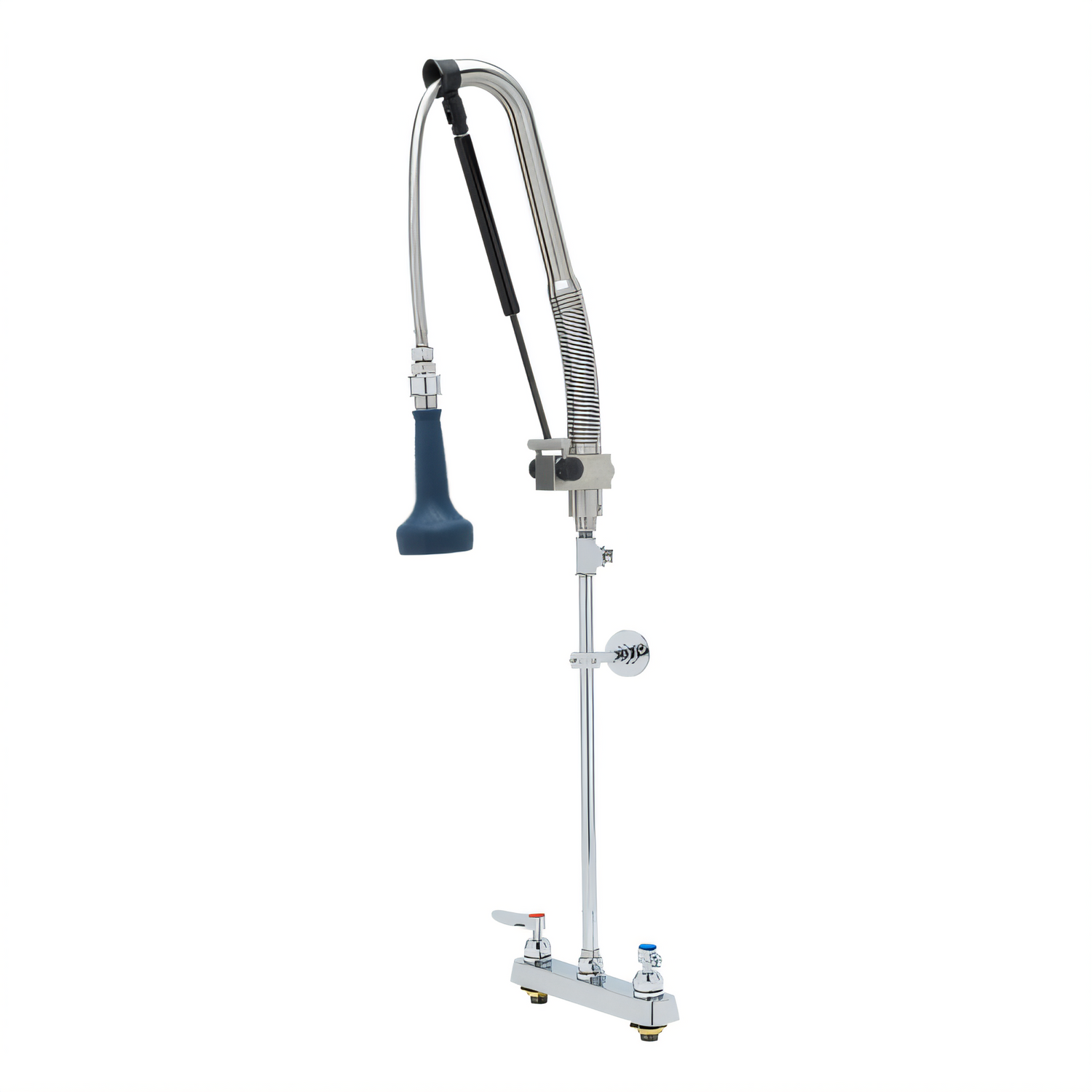

T&S Brass EasyInstall DuraPull™ Pre-Rinse Unit
Model B-5120-CR-B8TP · 8" Deck-Mount Workboard FaucetPurpose-built for high-volume kitchens, the EasyInstall DuraPull™ pairs T&S reliability with lightning-fast installation. Its spring-action pull-down sprayer delivers a hard-hitting 1.07 GPM rinse while cutting water costs—keeping your dishroom efficient, ergonomic and always ready for the rush.
Key Features
- 8" (203 mm) deck-mount faucet body in polished chrome-plated brass
- 18" EasyInstall riser sets up in minutes—no special tools needed
- Spring-action gooseneck with pull-down stainless-steel valve & insulated blue grip handle
- 1.07 GPM spray valve with automatic shut-off for water & energy savings
- 30" (762 mm) flexible stainless-steel braided hose with live swivel—tangle-free reach
- Quarter-turn Cerama cartridges with integral check valves prevent cross-flow (lifetime limited warranty)
- Lever handles with red/blue color-coded indexes for quick temperature identification
- 3/8" NPT accessory tee lets you add glass fillers or other outlets without repiping
- Adjustable 6" wall bracket stabilizes the riser in the busiest workstations
- Low-lead compliant; certified to ASME A112.18.1/CSA B125.1, NSF 61 & NSF 372
Performance Data
- Flow rate: 1.07 GPM (4.05 L/min) @ 60 psi
- Operating pressure: 20 – 125 psi (1.4 – 8.6 bar)
- Water temperature: 40 °F – 140 °F (4 °C – 60 °C)
- 2019 DOE PRSV – Class II compliant
Technical Specifications
| Mounting | Deck mount, 8" (203 mm) centers |
|---|---|
| Riser Height | 18" (457 mm) EasyInstall riser |
| Overall Height | 42 ¾" (1086 mm) |
| Spray Valve | 1.07 GPM pull-down with auto shut-off |
| Hose Length | 30" (762 mm) braided stainless steel |
| Inlet Connections | ½" NPT male; ¼" tailpieces & nuts included |
| Cartridges | Quarter-turn Cerama with check valves (standard); optional Eterna with spring check |
| Handle Style | Lever (standard); optional 4" wrist-action or 4-arm |
| Wall Bracket | 6" (152 mm) adjustable, included |
| Materials | Chrome-plated brass body & riser, stainless-steel hose & valve, chrome-plated metal handles |
| Warranty | 7-year limited on unit · Lifetime limited on Cerama cartridges |
| Certifications | ASME A112.18.1/CSA B125.1, NSF 61, NSF 372 (Low Lead) |
Add versatility on day one—the integrated accessory tee is ready for glass fillers, soap dispensers and more, no extra drilling required.
