T&S Brass  |  EasyInstall DuraPull  |  SKU: B-5120-CR-B8P

T&S Brass B-5120-CR-B8P EasyInstall DuraPull Commercial Faucets & Plumbing

$1,404.42
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Submittal
Related Searches
Faucet Components Pre-rinse Faucet Parts Restaurant Equipment Restaurant Equipment Parts

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

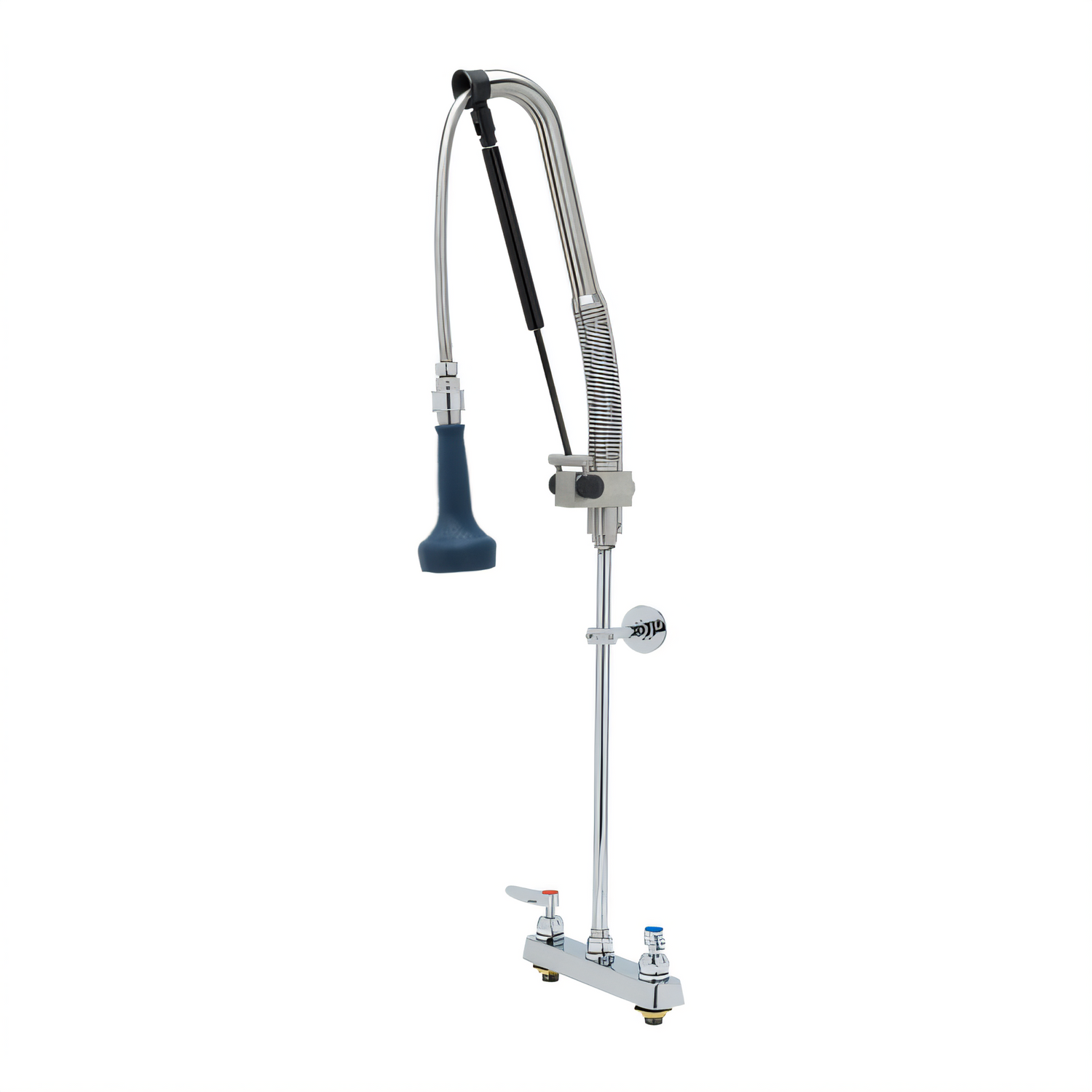

EasyInstall DuraPull Pre-Rinse Unit

by T&S Brass | 8" Deck-Mount – 1.07 GPM – Low-Lead Compliant

Built for busy commercial kitchens, the EasyInstall DuraPull delivers the power of a traditional pre-rinse with the ergonomics of a pull-down sprayer. The spring-action gooseneck, insulated grip, and feather-light 1.07 GPM spray valve let your team blast through baked-on food while saving water and reducing fatigue. 100 % factory-assembled and ready to drop into 8" centers, it turns new installs and replacements into a true easy install.

Why You’ll Love It

  • One-hand pull-down design with automatic shut-off for maximum efficiency.
  • 18" EasyInstall riser and 30" stainless-steel braided hose reach every corner of the sink.
  • Low-flow 1.07 GPM spray valve (DOE PRSV – Class II) slashes water and energy costs.
  • Quarter-turn Cerama cartridges with built-in check valves stop cross-flow and last for years.
  • Durable polished chrome-plated brass body built to withstand daily commercial abuse.
  • Lever handles with color-coded indexes for fast, intuitive temperature control.
  • 6" adjustable wall bracket stabilizes the riser and protects your plumbing.
  • 100 % lead-free brass waterways certified to NSF 61 & NSF 372.

Ideal Applications

  • Restaurant and hotel pot-sinks
  • Institutional & school cafeterias
  • Food-service commissaries and prep areas
  • Bar glass washing stations

Technical Specifications

Mounting / Centers Deck mount – 8" (203 mm) centers
Inlet Size 1/2" NPT male
Body Material Polished chrome-plated brass
Riser Height 18" (457 mm) EasyInstall riser
Hose 30" flexible stainless-steel, spring-guarded with live swivel
Spray Valve 1.07 GPM pull-down spray, insulated grip, auto shut-off
Handles Lever style with red/blue indexes
Cartridges Quarter-turn Cerama with integral check valves
Wall Bracket 6" (152 mm) adjustable, chrome-plated brass
Pressure Range 20 – 125 psi (1.38 – 8.6 bar)
Temperature Range 40 °F – 140 °F (4 °C – 60 °C)
Flow Rate 1.07 GPM (4.1 L/min) @ 60 psi

Certifications & Compliance

  • ASME A112.18.1 / CSA B125.1
  • NSF 61, Section 9 – Drinking Water System Components
  • NSF 372 – Low-Lead Content
  • 2019 DOE PRSV – Class II

Rock-Solid Warranty

  • Seven-year limited warranty on the complete unit
  • Lifetime warranty on Cerama cartridges

Rough-in requires two 1" (25 mm) deck holes. 1/4" NPT tailpieces and locknuts included. Supply lines sold separately.

Features & Specs

Manufacturer

T&S Brass

Brand_name

EasyInstall DuraPull

Wall or Deck Mount

deck mount

Faucet Centers

8" centers

Valve Type

ceramic valves

Specifications

EasyInstall DuraPull Pre-Rinse Unit, deck mount, 8" center, spring action gooseneck, 1.07 GPM spray valve, 18" riser, 30" flexible stainless steel hose, 6" wall bracket, 1/2" NPT male inlet, lever handles, quarter-turn Cerama cartridges, low lead, 2019 DOE PRSV - Class II
