T&S Brass B-5120-12CRB8TP EasyInstall DuraPull Commercial Faucets & Plumbing
T&S Brass B-5120-12CRB8TP EasyInstall DuraPull Commercial Faucets & Plumbing is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
T&S Brass B-5120-12CRB8TP EasyInstall DuraPull Commercial Fauce...
Description

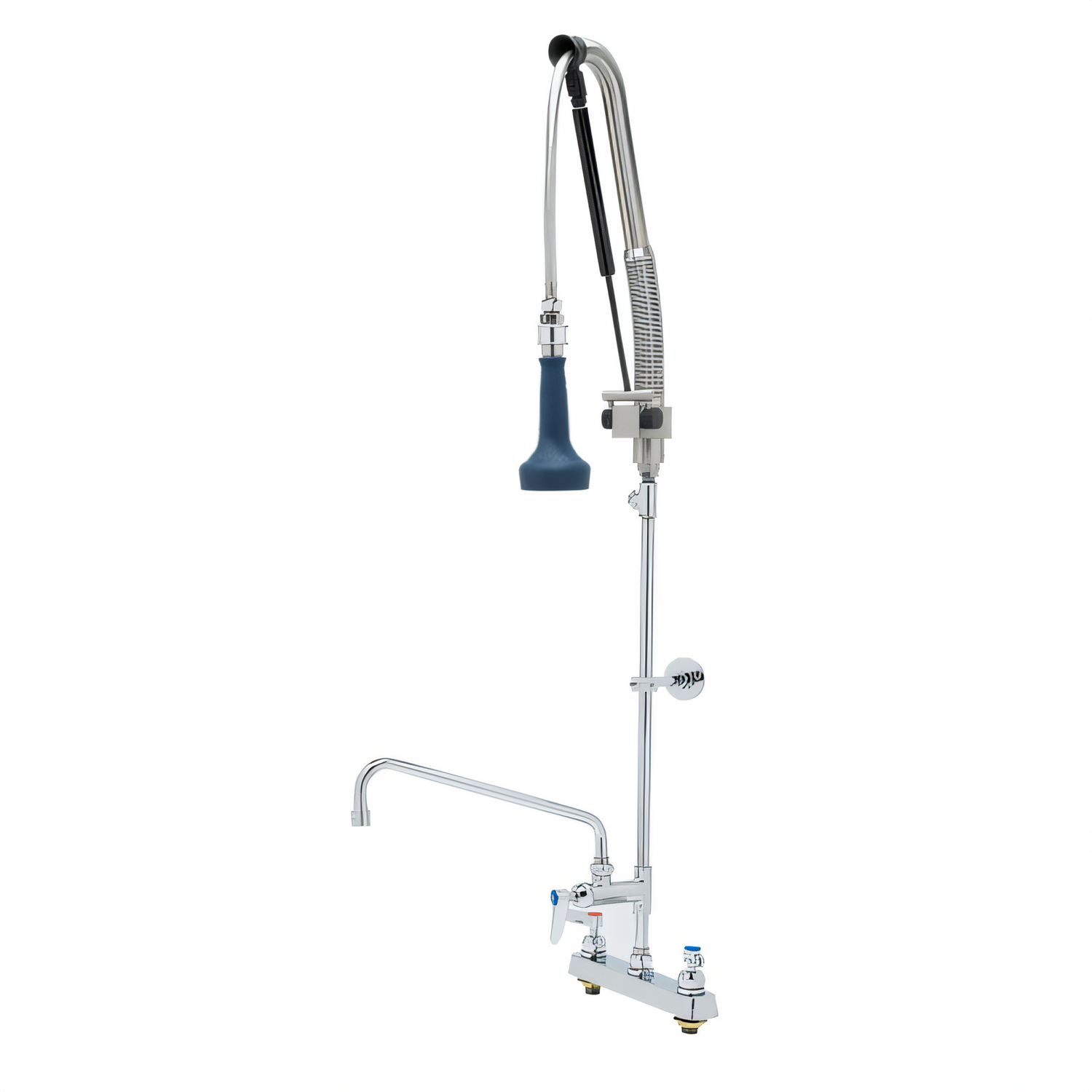

EasyInstall DuraPull™ Pre-Rinse Unit
T&S Brass | Model B-5120-12CRB8TPUpgrade any workboard in minutes with the EasyInstall DuraPull™—a low-lead, water-saving pre-rinse unit that pairs T&S Brass reliability with a fast, tool-friendly installation.
Key Features

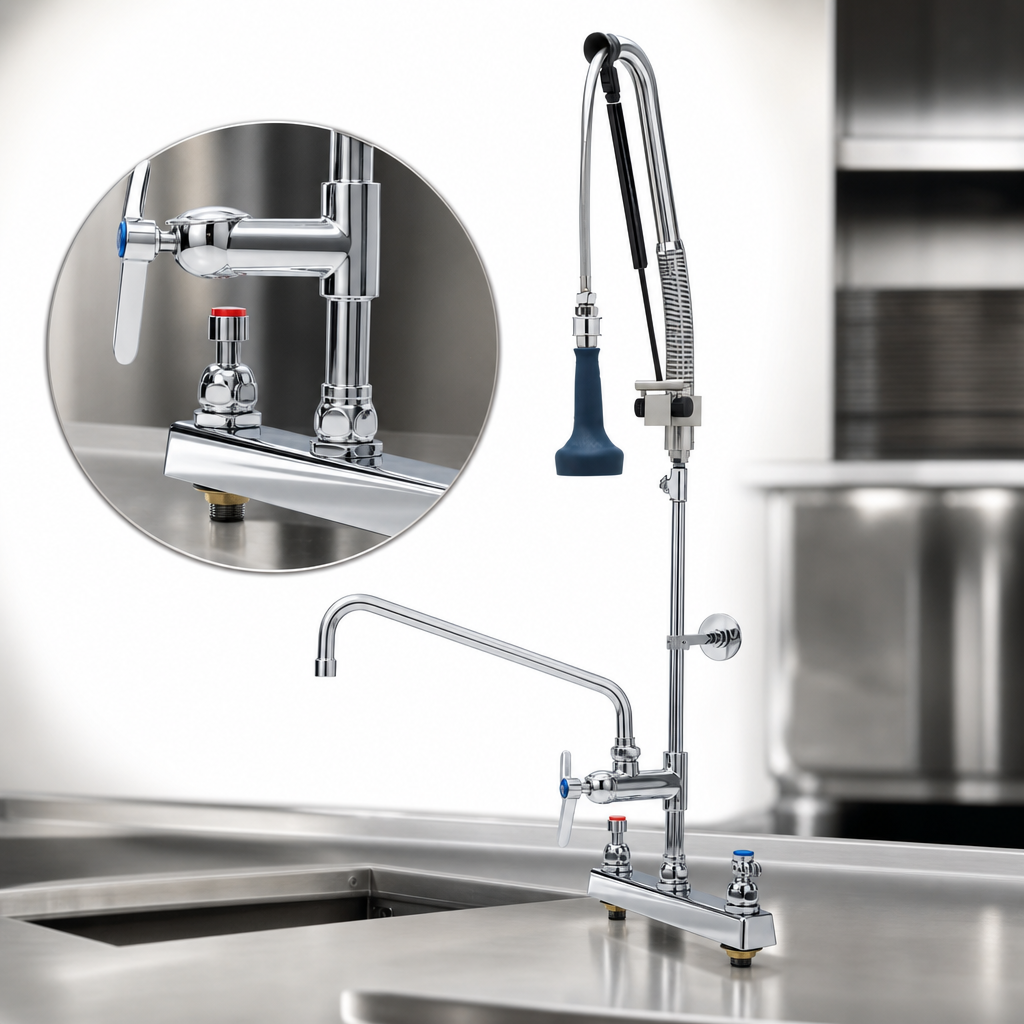

- 8" deck-mount workboard faucet with polished chrome-plated brass body
- EasyInstall add-on faucet & lock-nut kit for rapid retrofits
- 12" swing nozzle (Series 1) delivers up to 7.56 GPM for filling pots & sinks
- Pull-down, spring-action gooseneck with 30" stainless-steel hose & insulated grip
- Water-saving 1.07 GPM spray valve—DOE PRSV Class II compliant
- Rigid 18" riser & 6" adjustable wall bracket for rock-solid stability
- Quarter-turn Cerama cartridges with check valves to prevent cross-flow
- Lever handles with color-coded indexes for fast, intuitive operation
- Accessory 3⁄8" NPT tee—add glass rinsers, soap dispensers & more without extra plumbing
- 1⁄2" NPT male inlets; 1⁄4" NPT tailpieces & nuts included
Performance Data
| Spray Valve Flow | 1.07 GPM @ 60 psi |
|---|---|
| Add-On Faucet Flow | 7.56 GPM @ 60 psi |
| Operating Pressure | 20 – 125 psi |
| Water Temperature | 40 °F – 140 °F (4 °C – 60 °C) |
Dimensions
| Deck-Mount Centers | 8" / 203 mm |
|---|---|
| Overall Height | 47 3⁄16" / 1198 mm |
| Riser Length | 18" / 457 mm |
| Hose Length | 30" / 762 mm braided stainless steel |
| Swing Nozzle Length | 12" / 305 mm |
Certifications
- ASME A112.18.1 / CSA B125.1
- NSF 61, Section 9
- NSF 372 – Low Lead Content
- 2019 DOE PRSV – Class II
Warranty
• Seven-year limited warranty on the complete unit
• Lifetime limited warranty on Cerama cartridges
Optional wrist-action or four-arm handles and alternative outlet aerators are available—contact us for details.
