T&S Brass B-5120-12-CRB8P EasyInstall DuraPull Commercial Faucets & Plumbing
T&S Brass B-5120-12-CRB8P EasyInstall DuraPull Commercial Faucets & Plumbing is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
T&S Brass B-5120-12-CRB8P EasyInstall DuraPull Commercial Fauce...
Description

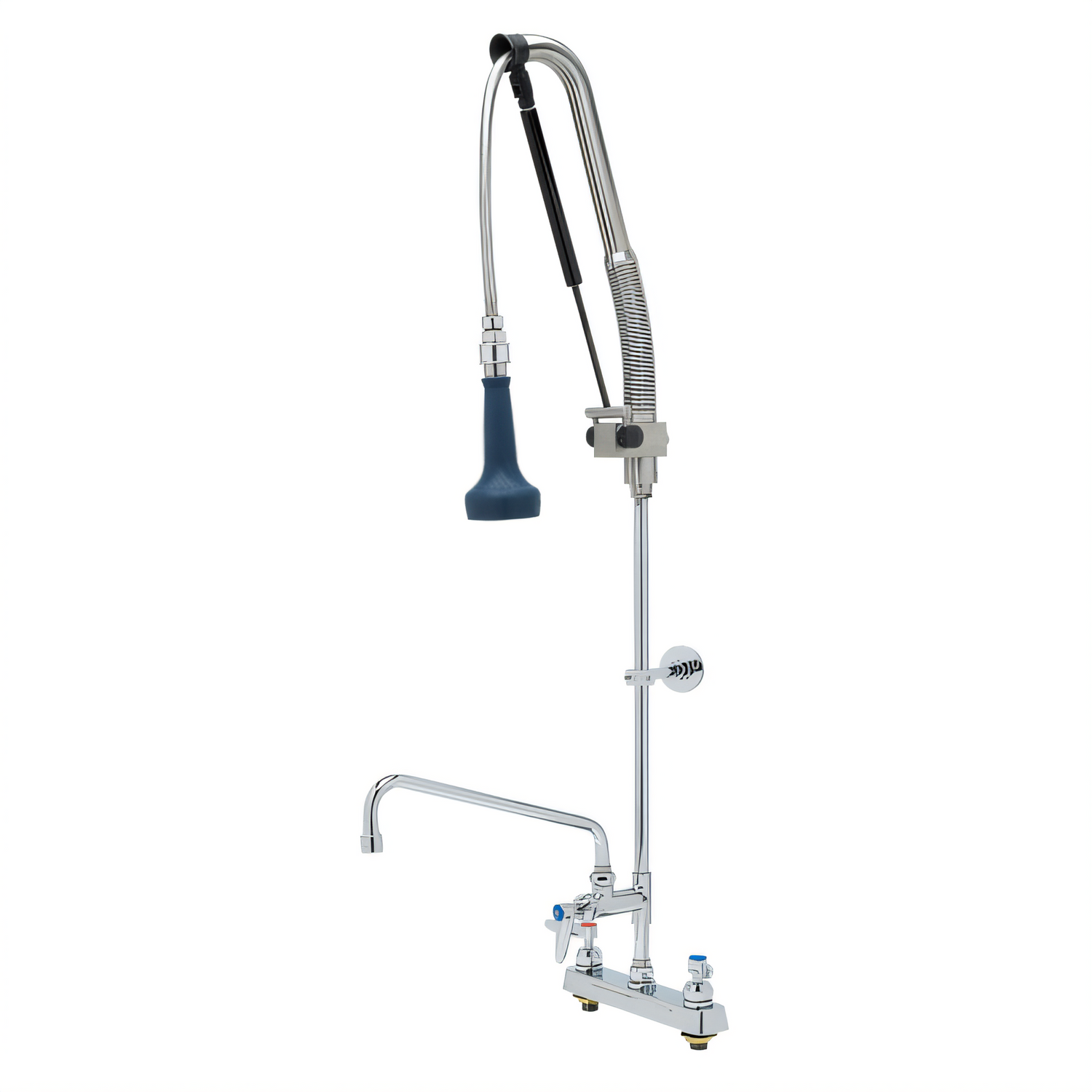

T&S EasyInstall DuraPull Pre-Rinse Unit
Model B-5120-12-CRB8P | 8" Deck-Mount | 1.07 GPM Spray ValveBuilt for the busiest dish stations, the EasyInstall DuraPull delivers T&S Brass reliability with a space-saving pull-down design that installs in minutes. A high-efficiency spray valve, rugged stainless-steel hose and lifetime-warranted Cerama cartridges keep water where it belongs—on the dishes, not on your floor.
Key Features
- 8" deck-mount workboard faucet—no extra adapters required.
- EasyInstall add-on faucet with 12" swing nozzle delivers up to 7.56 GPM for rapid pot filling.
- Pull-down gooseneck with 30" flexible stainless-steel hose, spring & air-cylinder assisted return.
- 1.07 GPM spray valve meets 2019 DOE PRSV – Class II while blasting away food soil.
- Quarter-turn Cerama cartridges with built-in check valves prevent cross-flow and last a lifetime.
- Lever handles with red/blue indexes for quick, safe identification.
- 18" rigid riser & 6" adjustable wall bracket steady the unit—no wobble, no leaks.

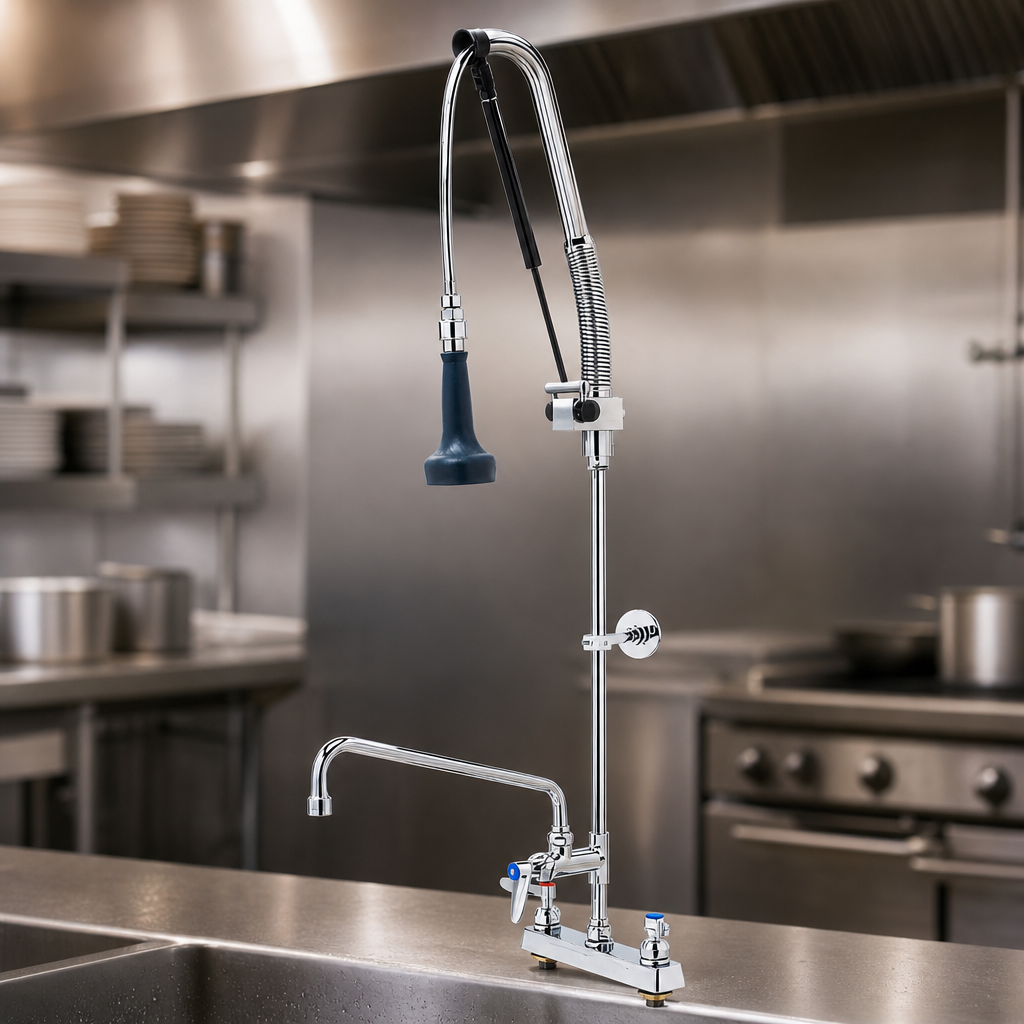

- Polished chrome-plated brass body resists corrosion and wipes clean fast.
- Low-lead certified for nationwide compliance—even in schools & healthcare.
Technical Specifications
| Mounting | 8" deck mount – (2) 1" dia. holes |
|---|---|
| Add-On Faucet | 12" swing nozzle, stream regulator, 7.56 GPM @ 60 psi |
| Spray Valve | 1.07 GPM @ 60 psi, auto shut-off on release |
| Hose | 30" stainless-steel braided with protective spring |
| Riser | 18" rigid, chrome-plated brass |
| Handles | Lever, color-coded indexes |
| Cartridges | 1/4-turn Cerama with check valves (replaceable) |
| Inlets | 1/2" NPT male (tailpieces for 1/4" NPT included) |
| Operating Pressure | 20 – 125 psi (138 – 862 kPa) |
| Water Temp. | 40 °F – 140 °F (4 °C – 60 °C) |
| Overall Height | 45 3⁄16" (1148 mm) |
| Wall Bracket | 6" adjustable, included |
| Material / Finish | Polished chrome-plated brass with stainless-steel hose |
| Warranty | 7-year limited; Cerama cartridges lifetime limited |
Certifications & Compliance
- ASME A112.18.1 / CSA B125.1
- NSF/ANSI 61, Section 9 – Drinking Water Components
- NSF/ANSI 372 – Low Lead Content
- 2019 DOE PRSV – Class II High-Efficiency
Perfect For
- High-volume restaurants, cafés & bars
- School and university kitchens
- Healthcare & long-term-care facilities
- Food trucks & commissaries needing a compact pre-rinse solution
Looking for different handles or flow rates? T&S optional cartridges, spray faces and handles are available—ask before ordering.
