Description

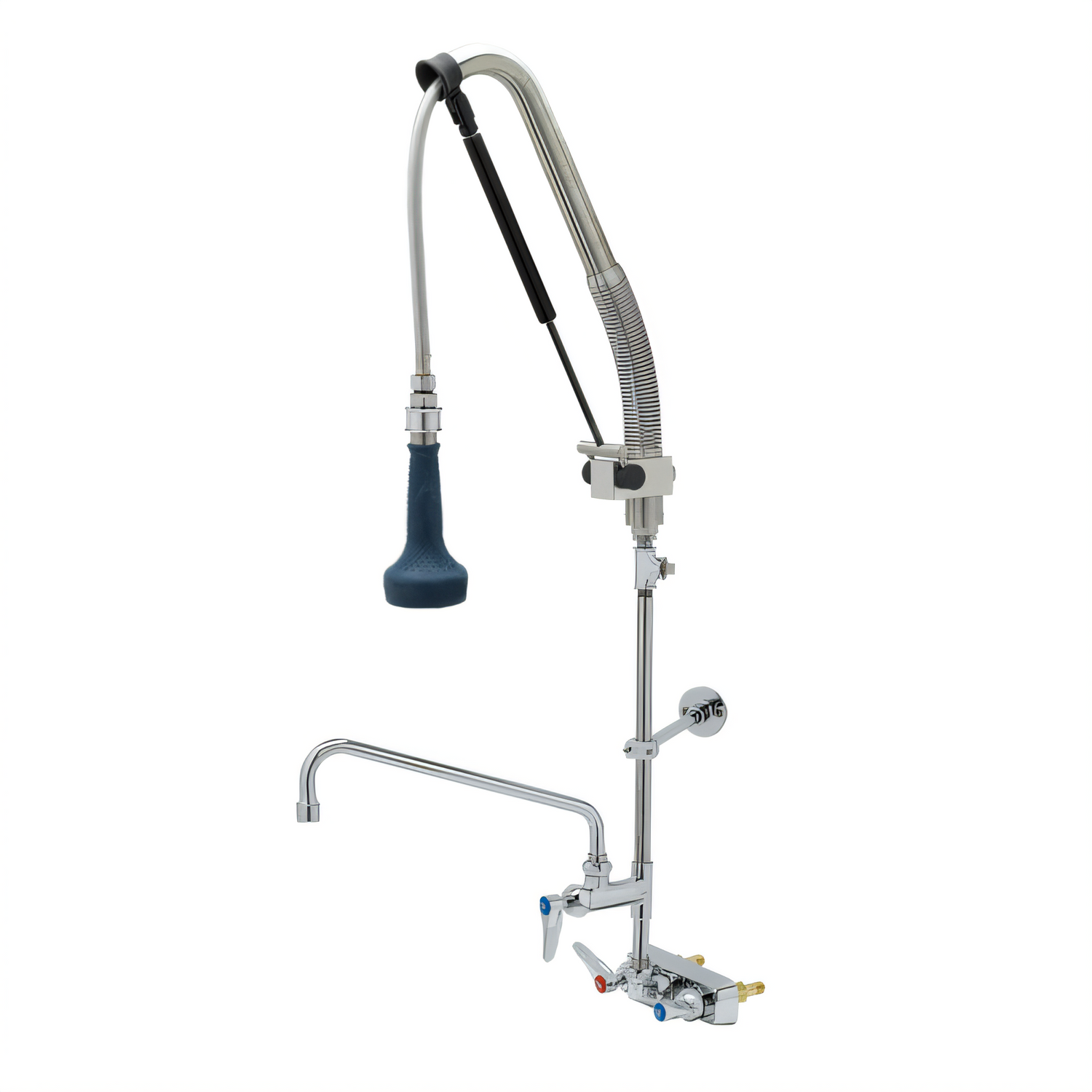

EasyInstall DuraPull™ Pull-Down Pre-Rinse Unit

Model B-5115-12CRB8TP | by T&S Brass

Built for the busiest commercial kitchens, the EasyInstall DuraPull™ combines a 4" wall-mount workboard faucet, a high-efficiency pull-down sprayer and an add-on swing nozzle—all in one rugged, easy-to-install package. From quick rinse-offs to filling large pots, this unit does it all while saving water, time and labor.

Why you’ll love it

  • EasyInstall design drops into two 1" mounting holes—no fuss, no special tools.
  • Pull-down stainless-steel hose (30") with spring, air cylinder & auto shut-off valve for ergonomic, one-hand operation.
  • 1.07 GPM blue insulated spray valve meets 2019 DOE PRSV Class II for serious water savings.
  • Add-on faucet with 12" swing nozzle (stream regulator outlet) delivers up to 7.56 GPM for rapid pot filling.
  • Quarter-turn Cerama cartridges with built-in check valves—lifetime limited warranty & cross-flow protection.
  • Polished chrome-plated brass body, riser & nozzle for long-term, corrosion-resistant performance.
  • Lever handles with color-coded indexes for intuitive hot/cold identification.
  • Adjustable 6" wall bracket stabilizes the riser in the roughest environments.
  • Low-lead compliant (NSF 372) and third-party certified for food-service safety.

Performance data

Spray valve flow rate 1.07 GPM @ 60 psi
Add-on swing nozzle flow 7.56 GPM @ 60 psi
Recommended pressure 20 – 125 psi (1.4 – 8.6 bar)
Operating temperature 40 – 140 °F (4 – 60 °C)

Technical specifications

Mounting style Wall mount, 4" (102 mm) centers
Inlet connections 1/2" NPT male
(Two 1/4" NPT tailpieces & nuts included)
Riser height 12" (305 mm) rigid brass riser
Overall height 40 7/16" (1027 mm)
Hose length 30" (762 mm) stainless-steel braided
Nozzle reach 12" (305 mm) swing nozzle
Cartridges Quarter-turn Cerama with check valves (hot & cold)
Handles Chrome-plated lever, color-coded indexes
Material Polished chrome-plated brass, stainless-steel hose & spring

Certifications & compliance

  • ASME A112.18.1 / CSA B125.1
  • NSF 61, Section 9
  • NSF 372 Low-Lead
  • 2019 DOE PRSV – Class II

Peace-of-mind warranty

• Seven-year limited coverage on the complete unit
• Lifetime limited warranty on Cerama cartridges

Installation tip: Unit requires two 1" (25 mm) mounting holes on the workboard surface and 1/2" NPT water supplies. Always flush lines before connecting to protect cartridges and spray valve.

Features & Specs

Manufacturer

T&S Brass

Brand_name

EasyInstall DuraPull

Wall or Deck Mount

splash / wall mount

Faucet Centers

4" centers

Spout / Nozzle Type

standard swing / swivel spout

Spout Length (overall)

10 - 12 inches

Valve Type

ceramic valves

Specifications

EasyInstall Workboard Pull_Down Pre-Rinse Unit, wall mount mixing faucet, add-on faucet with 12" swing nozzle, 4" center, spring action gooseneck, 1.07 GPM spray valve, accessory fitting tee, 12" riser, 30" flexible stainless steel hose, 6" wall bracket, 1/2" NPT male inlet, lever handles, quarter-turn Cerama cartridges, low lead, 2019 DOE PRSV - Class II
