T&S Brass B-5110-CR-B8TP EasyInstall DuraPull Commercial Faucet...
Description

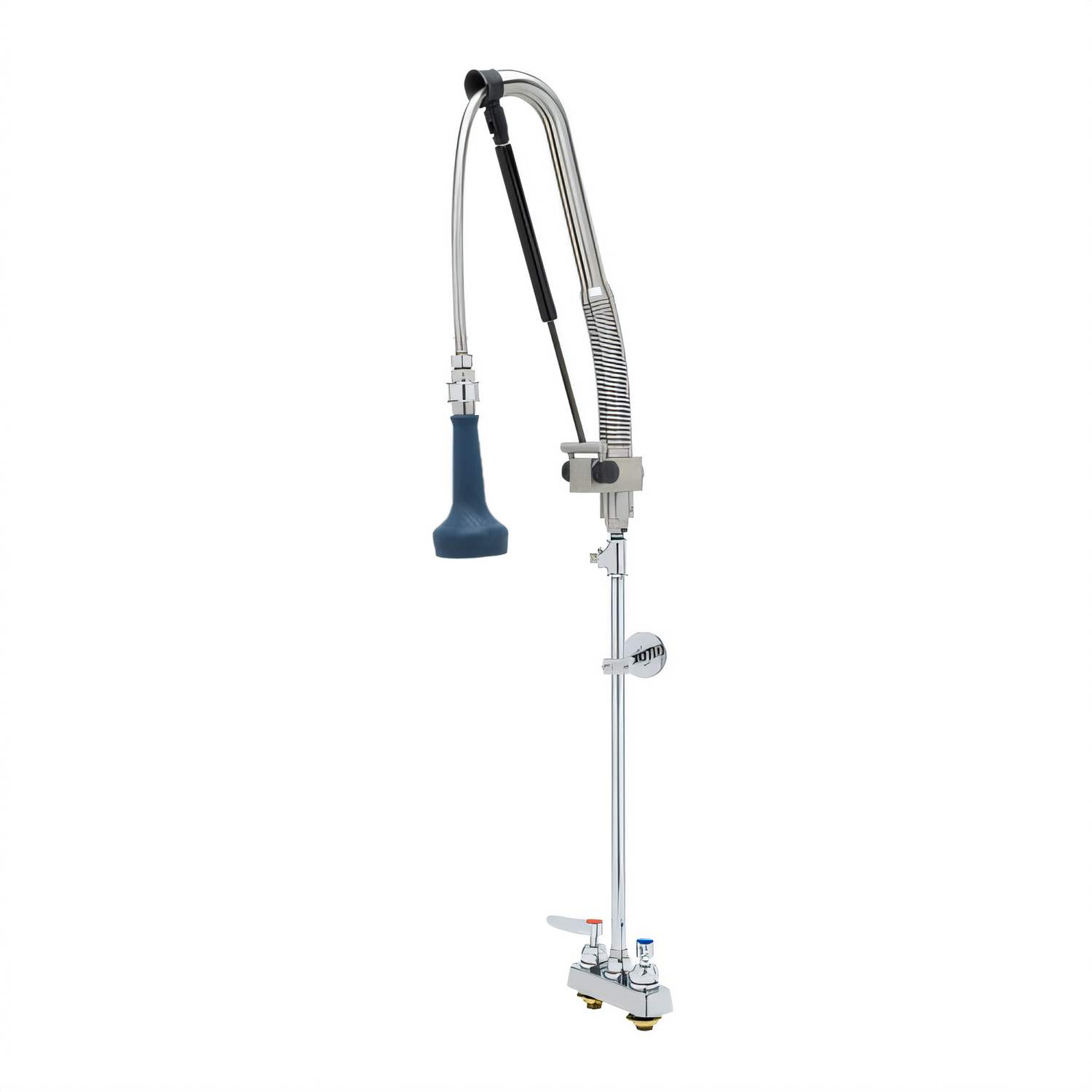

EasyInstall DuraPull™ Workboard Pull-Down Pre-Rinse Faucet
Model B-5110-CR-B8TP | 4" deck mount | 1.07 GPM low-flowBuilt for the busiest back-of-house, the EasyInstall DuraPull pairs T&S Brass’ legendary reliability with true tool-free installation. A smooth pull-down action, 30" stainless hose and a water-saving 1.07 GPM spray valve let your crew power through rinsing and filling tasks while saving time, water and energy.
Key advantages at a glance
- EasyInstall 18" riser with lock-nut & bushing – mounts in seconds from above the sink
- Pull-down stainless valve unit with auto shut-off and insulated blue grip handle
- 30" flexible stainless steel hose with spring, air cylinder & live swivel for tangle-free reach
- Add-on faucet with 12" swing nozzle for quick pot-filling between rinse cycles
- Quarter-turn Cerama cartridges with integral check valves – lifetime limited warranty
- Lever handles with red/blue indexes for intuitive hot-cold identification
- 6" adjustable wall bracket stabilizes the riser on any backsplash
- Low-lead compliant polished-chrome brass body – built to withstand commercial abuse
- Certified to ASME A112.18.1/CSA B125.1, NSF 61-Sec 9 & NSF 372
Included components
- Workboard deck-mount mixing faucet, 4" center (1/2" NPT male inlets)
- 18" EasyInstall riser & accessory rigid tee
- Pull-down spray assembly with 1.07 GPM valve
- 30" stainless braided hose, spring & air cylinder
- 6" wall bracket (B-0109-01)
- (2) 1/4" NPT tailpieces & nuts for optional hookups
Technical specifications
| Mounting style | 4" (102 mm) deck mount, two 1" diameter holes |
|---|---|
| Centers | 4" (c/c) |
| Overall height | 42 3/4" (1086 mm) |
| Maximum deck thickness | 1/4" (6 mm) |
| Spray flow rate | 1.07 GPM @ 60 psi (DOE PRSV Class II) |
| Pressure range | 20 – 125 psi (1.4 – 8.6 bar) |
| Temperature range | 40 °F – 140 °F (4 °C – 60 °C) |
| Connection | 1/2" NPT male inlets (hot & cold) |
| Cartridges | Quarter-turn Cerama with check valves (standard) |
| Materials of construction | Polished chrome plated brass body & riser, stainless steel hose & spring, chrome plated metal handles |
| Certifications | ASME A112.18.1/CSA B125.1, NSF 61-9, NSF 372 (Low Lead) |
| Warranty | 7-year limited (lifetime on Cerama cartridges) |
Installs through two 1" mounting holes. Optional 1/4" NPT tailpieces allow quick hook-up to rigid supply lines when required.
Why choose T&S Brass?
- Over 70 years of commercial plumbing innovation
- Rugged components engineered for high-cycle food-service environments
- Accessible, US-based technical support and readily available repair kits
