T&S Brass B-5110-12CRB8TP EasyInstall DuraPull Commercial Faucets & Plumbing
T&S Brass B-5110-12CRB8TP EasyInstall DuraPull Commercial Faucets & Plumbing is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
T&S Brass B-5110-12CRB8TP EasyInstall DuraPull Commercial Fauce...
Description

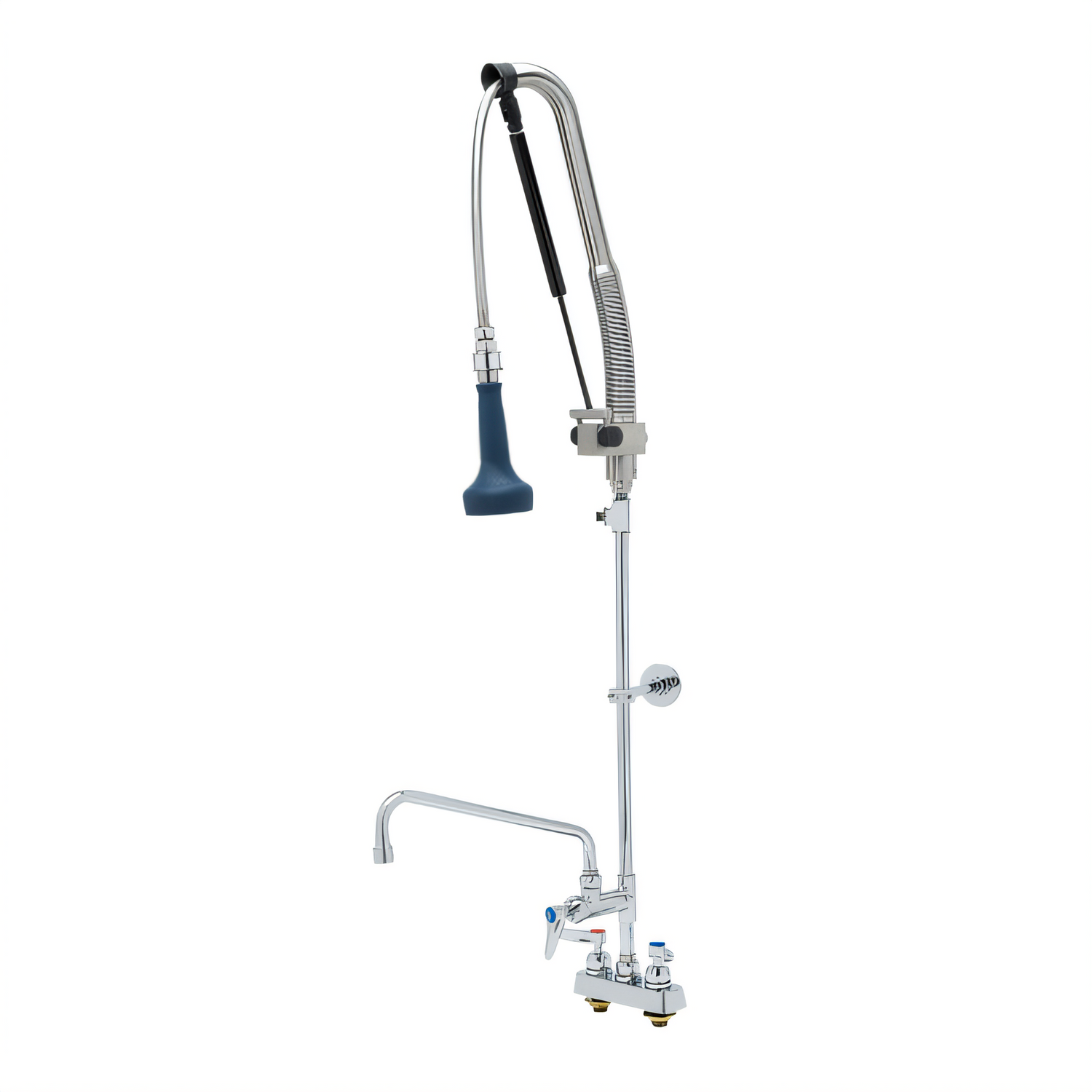

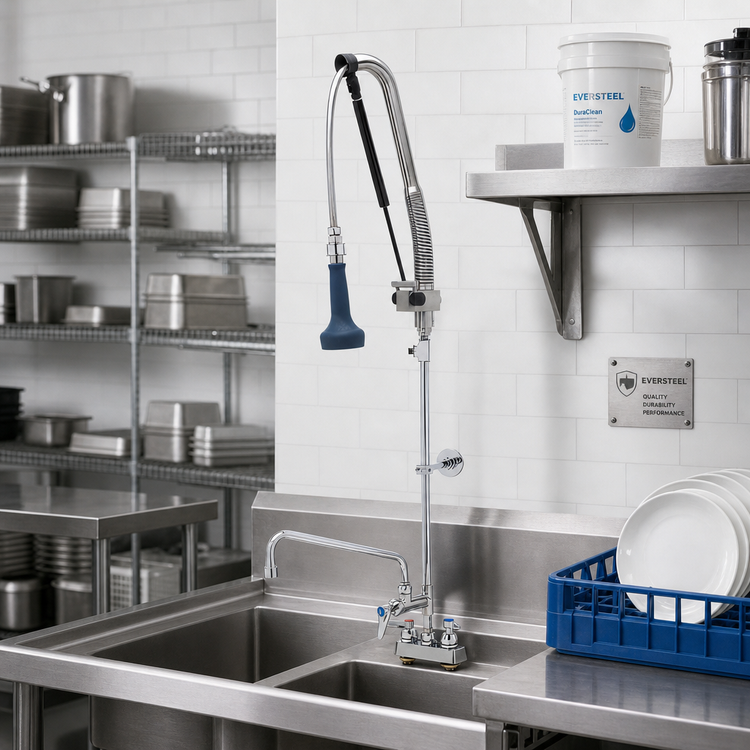

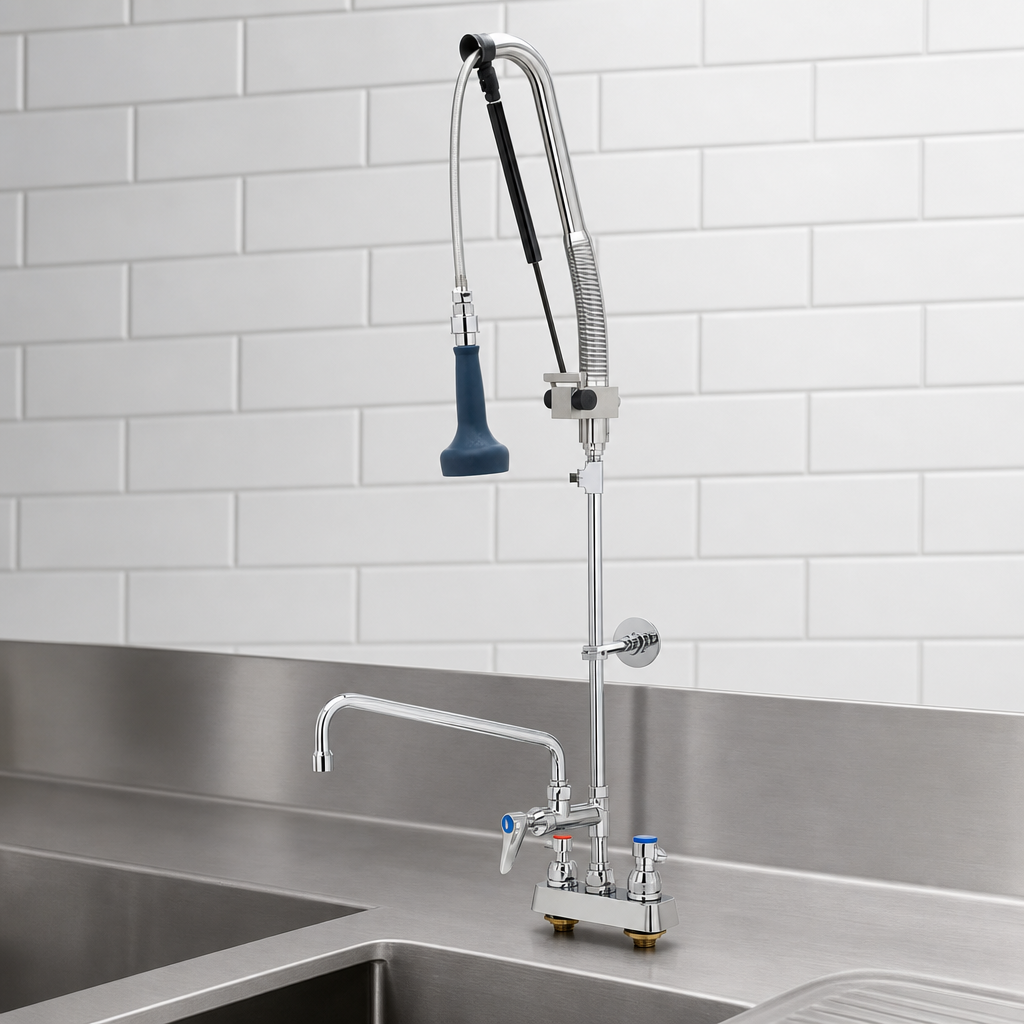

EasyInstall DuraPull™ Workboard Pull-Down Pre-Rinse Unit
Model B-5110-12CRB8TP • 1.07 GPM Low-Flow Spray ValveDesigned for fast installs and years of heavy-duty service, the EasyInstall DuraPull pairs a 4" deck-mount workboard faucet with a water-saving pull-down spray valve. A 12" swing nozzle handles high-volume filling while the stainless-steel spray assembly powers through prep-sink jobs using just 1.07 GPM—helping you slash water and energy costs without sacrificing performance.
Key features
- 4" deck-mount workboard faucet with polished chrome-plated brass body
- EasyInstall add-on faucet with 12" swing nozzle and full-flow stream regulator
- Pull-down stainless-steel spray valve (1.07 GPM) with insulated grip & automatic shut-off
- 30" flexible stainless-steel hose and spring action gooseneck for smooth reach & recoil
- 18" rigid riser plus 6" adjustable wall bracket for rock-solid stability
- Quarter-turn Cerama cartridges with built-in check valves—lifetime limited warranty
- Lever handles with red/blue indexes for fast temperature ID
- Accessory tee for future add-ons (3/8" NPT)
- 1/2" NPT male inlets, low-lead compliant brass & stainless-steel construction
Performance data
| Spray-valve flow rate | 1.07 GPM @ 60 psi |
|---|---|
| Add-on faucet flow rate | 7.56 GPM @ 60 psi |
| Operating pressure | 20 – 125 psi |
| Water temperature | 40 °F – 140 °F |
Technical specifications
| Mounting style | 4" deck mount (workboard) |
|---|---|
| Nozzle | 12" swing nozzle, Series 1 stream regulator |
| Riser | 18" rigid, 3/8" NPT |
| Hose length | 30" flexible stainless steel |
| Spray valve | Stainless steel, pull-down, auto shut-off |
| Handles | Lever, quarter-turn |
| Cartridges | Cerama with check valves (hot & cold) |
| Inlet connections | 1/2" NPT male |
| Overall height | 47 3/16" (1198 mm) |
| Max deck thickness | 1/4" (6 mm) |
| Warranty | 7-year limited (lifetime on Cerama cartridges) |
Certifications & compliance
- ASME A112.18.1 / CSA B125.1
- NSF 61 – Section 9
- NSF 372 – Low Lead Content
- 2019 DOE PRSV – Class II
Need alternative handles, cartridges, or flow controls? Compatible options are available—please contact us for details.
