T&S Brass B-2892-QDSV Commercial Faucets & Plumbing
Description

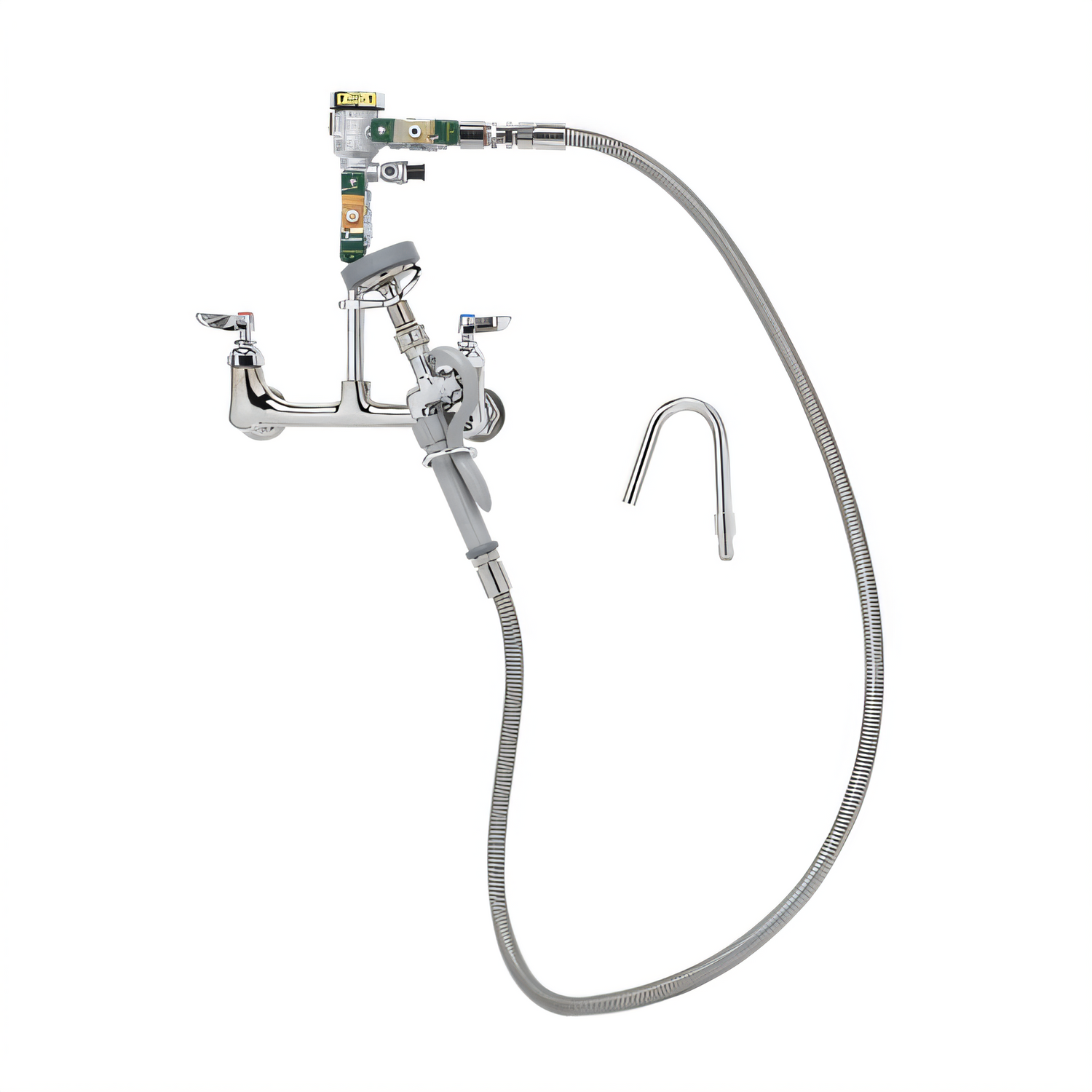

T&S Brass B-2892-QDSV Pot & Kettle Filler Faucet

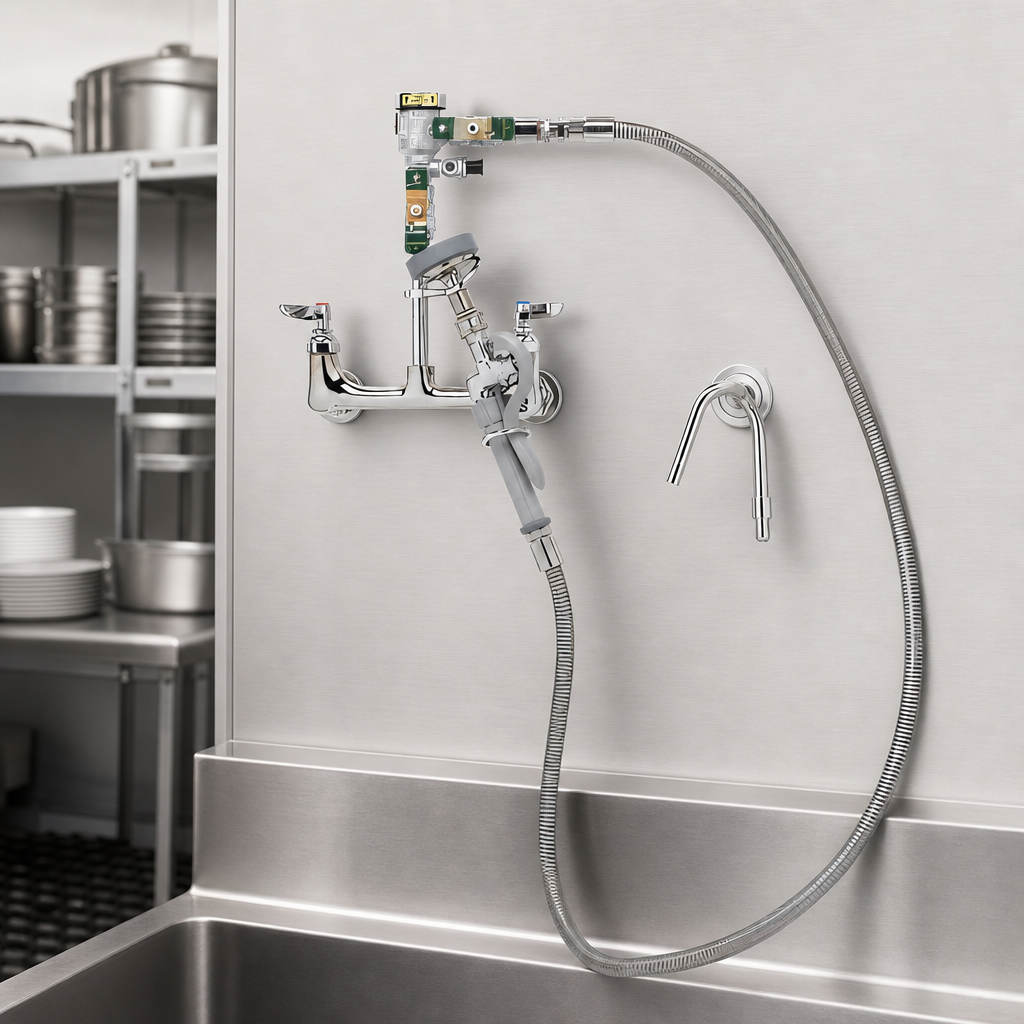

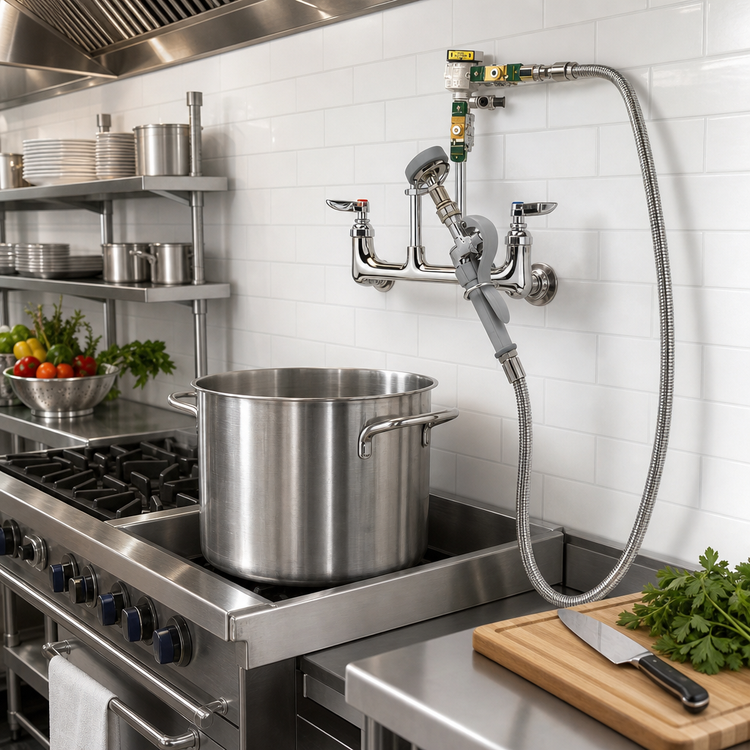

8" splash-mount • 68" stainless hose • quick-connect spray & hook nozzleEngineered for busy commercial kitchens that demand reach, versatility and code-compliant protection, the T&S Brass B-2892-QDSV combines a rugged wall-mount mixer with a 68 inch flexible hose, interchangeable quick-connect outlets and continuous-pressure backflow prevention. Fill large kettles, stock pots or cleaning sinks quickly—then stow the hose on the integrated finger hook to keep your workspace clear.
Key benefits
- 8 inch adjustable centers (7 3/4" – 8 1/4") for easy retrofit on existing splash-mount plates
- Quarter-turn Eterna cartridges with internal spring checks stop cross-flow and simplify service
- Lever handles with red/blue indexes for instant hot/cold identification—even when gloved
- B-0963 continuous-pressure vacuum breaker with integral check valve (ASSE 1056 compliant)
- 68 inch stainless steel braided hose reaches across prep tables and tilting kettles
- Quick-connect squeeze valve (B-1420) lets you swap outlets in seconds:
- B-1421 1.42 GPM low-flow spray head (EPAct 2005 compliant)
- B-1424 hook nozzle for fast laminar filling (non-spray)
- Integrated finger hook keeps hose & spray head off the deck between tasks
- Lead-free certified to NSF/ANSI 372
- Tested & listed by UL for the U.S. and Canada
Specifications
| Mounting / Centers | Wall (splash) mount, 8" adjustable centers (7 3/4" – 8 1/4") |
|---|---|
| Inlet Connections | 1/2" NPT female eccentric flanges (Ø 2") |
| Cartridges | Quarter-turn Eterna with spring checks |
| Handles | 4" lever, color-coded indexes (red / blue) |
| Vacuum Breaker | B-0963, continuous pressure, integral check valve |
| Hose Length | 68" (1.7 m) stainless steel braided with handle |
| Outlets (quick-connect) | B-1420 squeeze valve • B-1421 1.42 GPM spray head • B-1424 hook nozzle |
| Overall Height | 12 5/8" (321 mm) to finger hook |
| Construction | Polished chrome plated brass & stainless steel |
| Compliance / Listings | ASME A112.18.1 / CSA B125.1, NSF 61 Sec 9, NSF 372, ASSE 1056, EPAct 2005 (spray head), UL |
| Warranty | One-year limited (factory service parts readily available) |
Need replacement parts? T&S service kits—including cartridges, spray heads and hoses—ship same day to minimize downtime.
