ADA-Compliant Deck-Mount Bubbler with Flexible Mouth Guard and Push Button Metering Cartridge

SKU: B-2360-01
GTIN: 671262517294‌
$247.83
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Bottle Filler & Drinking Fountain Parts Commercial Faucets & Plumbing New Arrivals Restaurant Equipment Restaurant Equipment Parts Sinks & Handwashing Stations T&S Brass

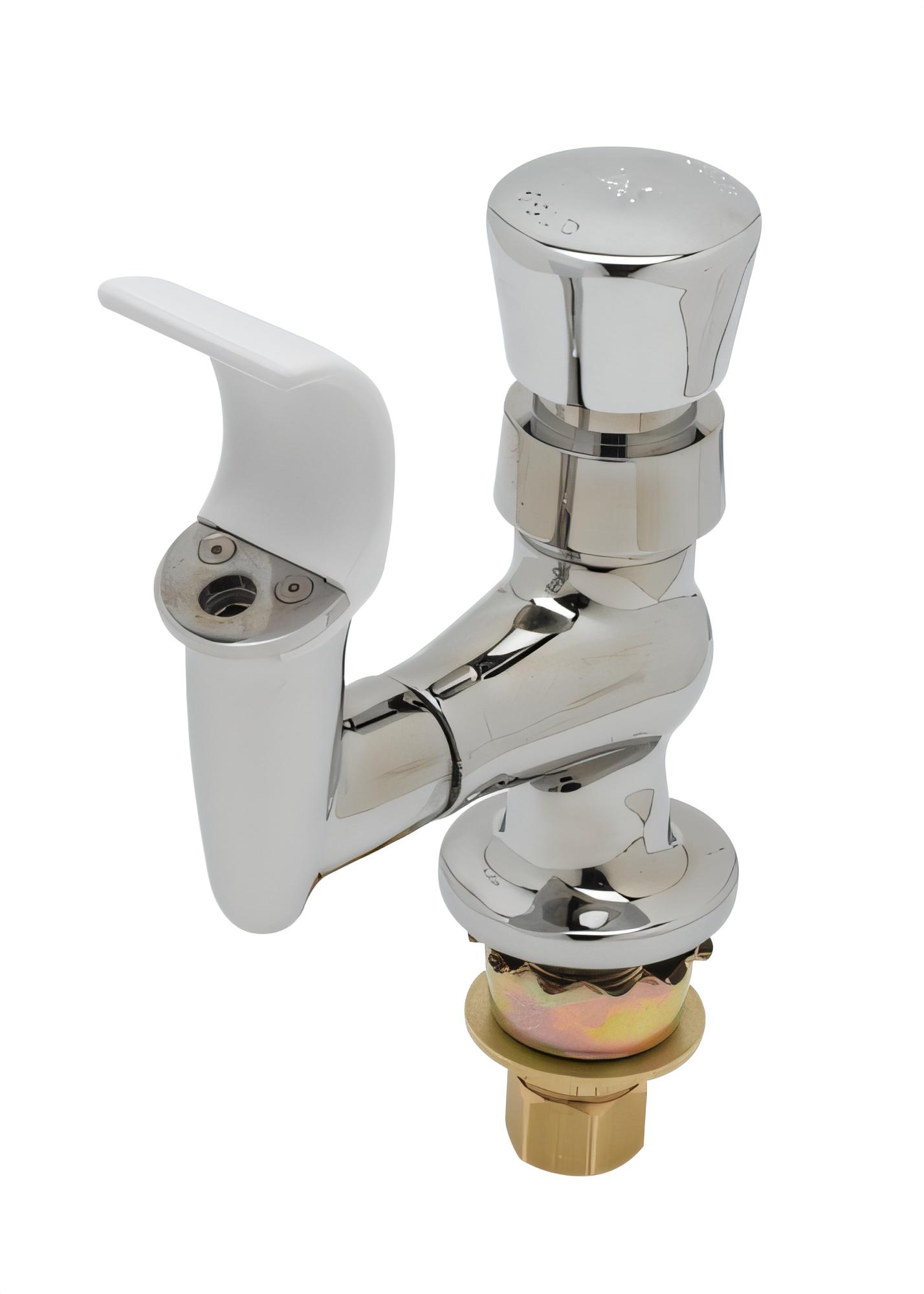

ADA-Compliant Deck-Mount Bubbler with Flexible Mouth Guard and Push Button Metering Cartridge

Polished Chrome Brass Body, Adjustable Flow Control, 1/2" NPSM Male Inlet

Built for drinking fountain applications, this deck-mount bubbler delivers controlled flow, push-button metering, and a flexible rubber mouth guard in a durable chrome-plated brass body.

  • Deck-mount bubbler designed for drinking fountain service.
  • Flexible rubber mouth guard helps improve comfort and durability.
  • Push-button metering cartridge offers controlled, water-saving operation.
  • Hidden flow control screw allows adjustable outlet flow.
  • Adjustable metering cycle can be set from 10 to 30 seconds.
  • 1/2" NPSM male inlet with coupling nut simplifies installation.
  • Meets ADA requirements and is certified to NSF and ASME/CSA standards.

Product Weight:

3.3 lb

Polished Chrome Brass Body

Durable polished chrome plated brass construction for long-lasting use.

Flexible Rubber Mouth Guard

Provides a comfortable drinking surface and helps protect the user interface.

Push Button Metering Cartridge

Cold push button cap with metering operation for controlled water delivery.

Adjustable Flow Control

Hidden flow control screw allows the outlet flow to be adjusted.

Adjustable Metering Cycle

Metering cycle can be set from 10 to 30 seconds.

Deck Mount Design

Installs as a deck mount bubbler with a 1" rough-in mounting hole.

1/2" NPSM Male Inlet

Includes a coupling nut for connection during installation.

Anti-Rotation Provision

Threaded holes in the flange accept anti-rotation screws from kit 012698-45, sold separately.

ADA And NSF Compliance

Meets ADA ANSI/ICC A117.1 requirements and is certified to ASME A112.18.1/CSA B125.1, NSF 61 Section 9, and NSF 372.

Type Bubbler
Style Metering
Mounting Type Deck Mount
Material Brass
Finish Polished Chrome
Handle Type Push Button
Water Inlet Size 1/2 Inch NPSM Male
Flow Rate 0.32 GPM @ 4 Inches; 0.43 GPM @ 8 Inches @ 60 PSI
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It uses a 1/2" NPSM male inlet with a coupling nut.
Yes. The metering cycle is adjustable from 10 to 30 seconds.
The body is polished chrome plated brass, and the mouth guard is flexible rubber.
Yes. The mounting flange accepts anti-rotation screws from kit 012698-45, sold separately.
It meets ADA ANSI/ICC A117.1 requirements and is certified to ASME A112.18.1/CSA B125.1, NSF 61 Section 9, and NSF 372.
