T&S Brass

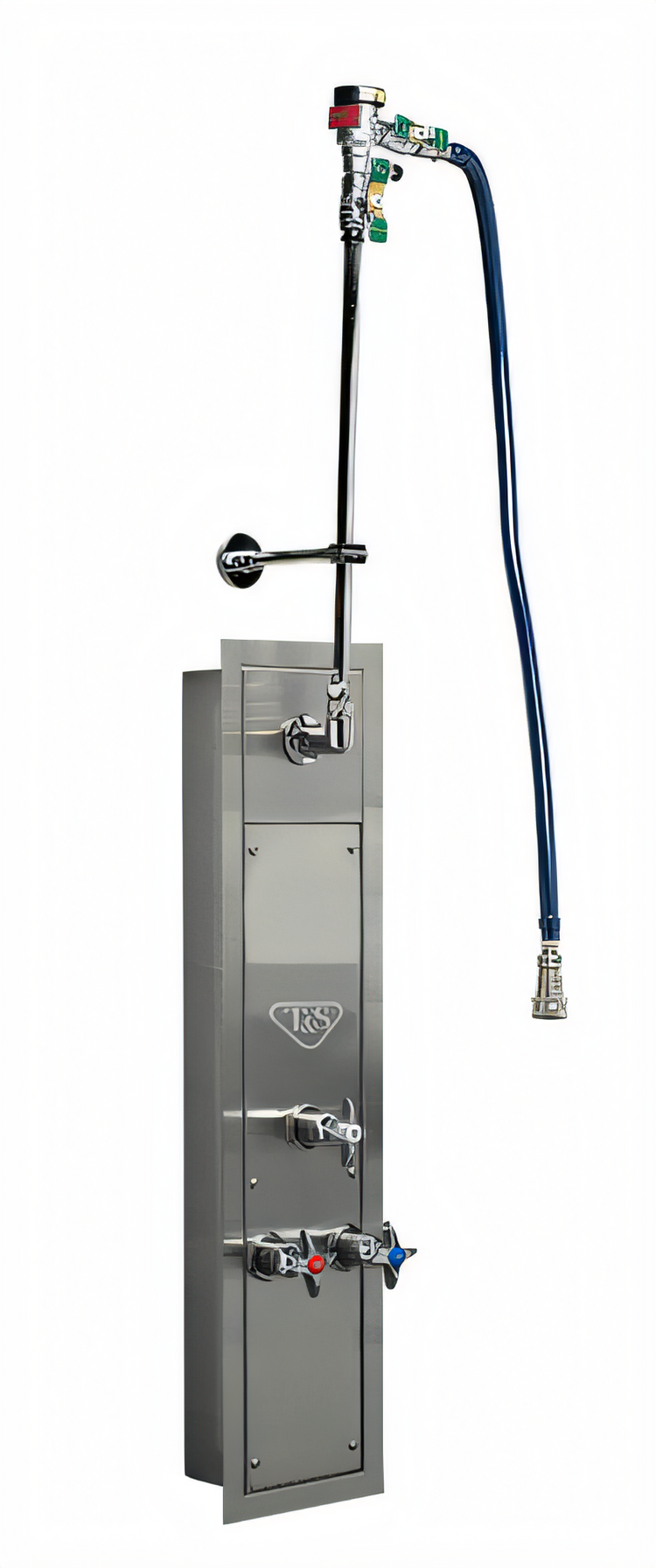

Stainless Steel Recess-Mounted Hose Reel Cabinet with Mixing Valve and Bottom Inlet Mounting

SKU: B-1460-RMB
$3,522.60
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Cleaning, Janitorial & Facility Supplies Floor Care & Drainage Floor Maintenance New Arrivals Retractable Hose Reel T&S Brass

Stainless Steel Recess-Mounted Hose Reel Cabinet with Mixing Valve and Bottom Inlet Mounting

Concealed bypass mixing valve, vacuum breaker, and 36-inch flexible hose connector

A rugged recess-mounted hose reel cabinet that combines integrated mixing control, vacuum protection, and durable stainless/brass construction for dependable wash-down service.

  • Recess-mounted stainless steel cabinet designed for bottom inlet hose reel installation.
  • Concealed bypass mixing valve with quarter-turn Eterna compression cartridges and spring checks.
  • Straight loose-key supply stops, check valves, swivel elbow, and flange support reliable operation.
  • Continuous-pressure vacuum breaker with integral check valve helps protect the water supply.
  • 36-inch flexible water hose connector includes a stainless steel quick disconnect and 3/8-inch NPT male outlet.
  • Rated for 20-125 psi, 40°F-140°F, and 4.0 GPM at 60 psi.

Recess-Mounted Cabinet

Designed for recessed installation with bottom inlet mounting for a clean, integrated look.

Concealed Bypass Mixing Valve

Built-in mixing valve helps control water temperature within the cabinet assembly.

Quarter-Turn Eterna Cartridges

Compression cartridges with spring checks provide smooth operation and dependable sealing.

Vacuum Breaker Protection

Continuous pressure vacuum breaker with integral check valve helps protect the water supply.

Heavy-Duty Water Connections

Includes 1/2-inch NPT female union inlets, 1/2-inch NPT riser, and 1/2-inch in-line check valves.

Flexible Hose Connector

Supplied with a 36-inch flexible water hose connector, stainless steel quick disconnect, and 3/8-inch NPT male outlet.

Durable Construction

Stainless steel cabinet with chrome-plated brass and metal components for long-lasting service.

Wall Bracket Support

Includes a 6-inch wall bracket to help support the assembly.

Type Complete Hose Reel System
Style Recess Mounted
Installation Type Wall Mounted
Material Stainless Steel
Finish Stainless Steel
Water Inlet Size 1/2 Inch NPT Female
Water Connection Required
Flow Rate 4.0 GPM at 60 psi
Temperature Range 40°F to 140°F
Operating Pressure 20 to 125 psi
Shipping Weight 55 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

One-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

Yes. It is designed as a recess-mounted cabinet with bottom inlet mounting.
Yes. The assembly includes a concealed bypass mixing valve.
The product is rated for 20 to 125 psi and 40°F to 140°F.
The listed flow rate is 4.0 GPM at 60 psi.
Yes. It includes a continuous pressure vacuum breaker with an integral check valve.
