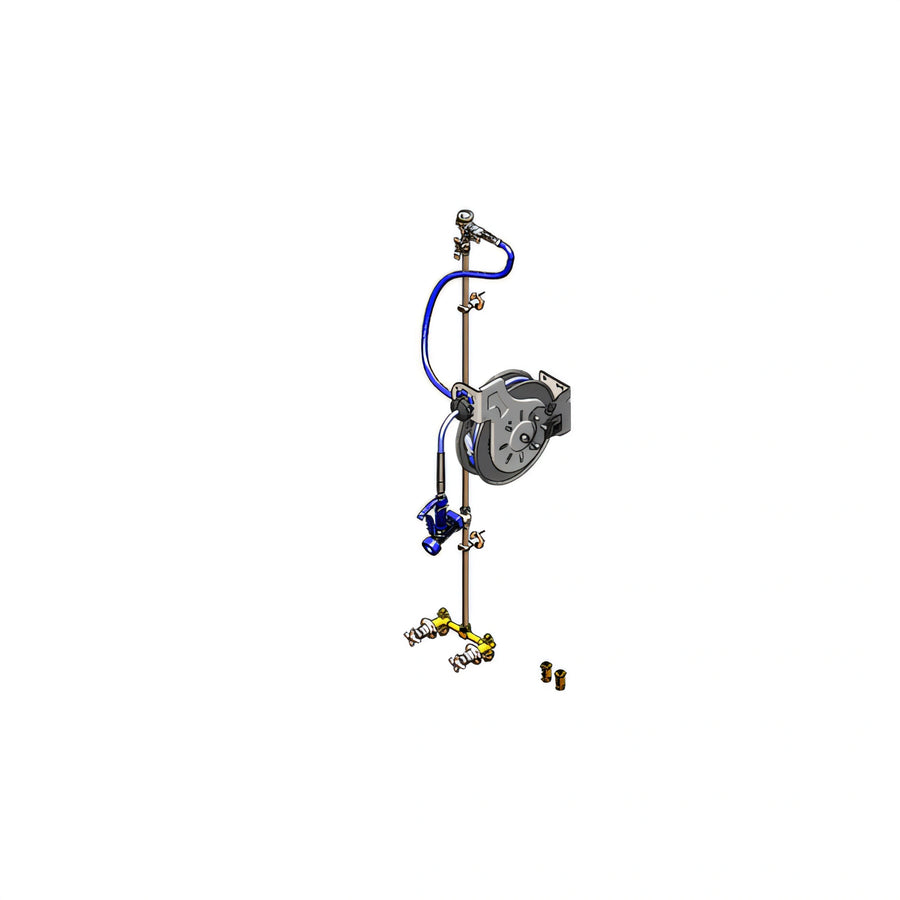

T&S Brass Open Wall-Mount Retractable Hose Reel Assembly with 35-Foot Hose, Mixing Faucet, and Blue Spray Valve

Epoxy-Coated Metal Reel, Adjustable Centers, 1/2-Inch NPT

This all-in-one hose reel system combines a 35-foot retractable hose with an integrated wall-mount mixing faucet for efficient washdown and cleaning tasks.

  • Open epoxy-coated metal reel design stands up to heavy-use cleaning environments.
  • Includes a 3/8-inch x 35-foot heavy-duty non-marking hose for extended reach.
  • 8-inch wall-mount mixing faucet with adjustable centers supports hot and cold water blending.
  • Quarter-turn Eterna cartridges with spring checks help prevent cross flow.
  • Continuous-pressure vacuum breaker adds backflow protection.
  • Ratcheting retract system and adjustable hose bumper make hose handling easier.
  • Includes risers, wall brackets, and a stainless steel quick-disconnect connector.

Product Weight:

60.25 lb

Open Epoxy-Coated Metal Hose Reel

Durable open reel design with a coated metal finish for demanding washdown applications.

35-Foot Hose

3/8-inch heavy-duty non-marking hose provides extended reach and smooth handling.

Wall-Mount Mixing Faucet

8-inch wall-mount faucet with adjustable centers for controlled hot and cold water mixing.

Quarter-Turn Eterna Cartridges

Spring checks help prevent cross flow of water and support reliable operation.

Continuous Pressure Vacuum Breaker

Provides added backflow protection for the water supply.

Ratcheting Hose Retraction System

Holds the hose length in place until a slight tug retracts it automatically.

Adjustable Hose Bumper

Helps position the hose and control how it retracts onto the reel.

Included Installation Components

Comes with 16-inch and 40-inch risers, a 36-inch flexible water hose connector with stainless steel quick disconnect, and (2) wall brackets.

Blue Spray Valve

Includes a blue spray valve for washdown and cleaning use.

Type Retractable Hose Reel Assembly
Style Open
Installation Type Wall Mounted
Material Metal
Finish Epoxy Coated
Hose Diameter 3/8 Inch
Hose Length 35 Feet
Water Inlet Size 1/2 Inch NPT
Water Connection Required
Controls Quarter-Turn
Pressure Range 20 to 125 PSI
Flow Rate 2.93 GPM @ 60 PSI
Temperature Range 40 to 140 Degrees F
Shipping Weight 60.25 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

One-year limited warranty overall; hose reel two-year limited; hose one-year limited.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download PDF Installation and maintenance instructions PDF Download

Frequently Asked Questions

It includes a 3/8-inch x 35-foot heavy-duty non-marking hose.
It uses an open epoxy-coated metal hose reel design.
Yes, a continuous pressure vacuum breaker is included.
The assembly includes 16-inch and 40-inch risers plus (2) 2-3/8-inch wall brackets.
A ratcheting system holds the hose in place until a slight tug retracts it automatically.
The assembly has a one-year limited warranty; the hose reel is two-year limited and the hose is one-year limited.
